    1B6-833 Air Ride Springs 579912833 Goodyear Single Convoluted

    Ask Lasest Price
    Supply Ability : 1000pcs/week
    Payment Terms : T/T, Western Union,Paypal or Others
    Brand Name : Goodyear
    Certification : ISO/TS16949, ISO9001
    Delivery Time : 3-8 Working Days
    Model Number : 1B6-833
    • Product Details
    • Company Profile

    1B6-833 Air Ride Springs 579912833 Goodyear Single Convoluted

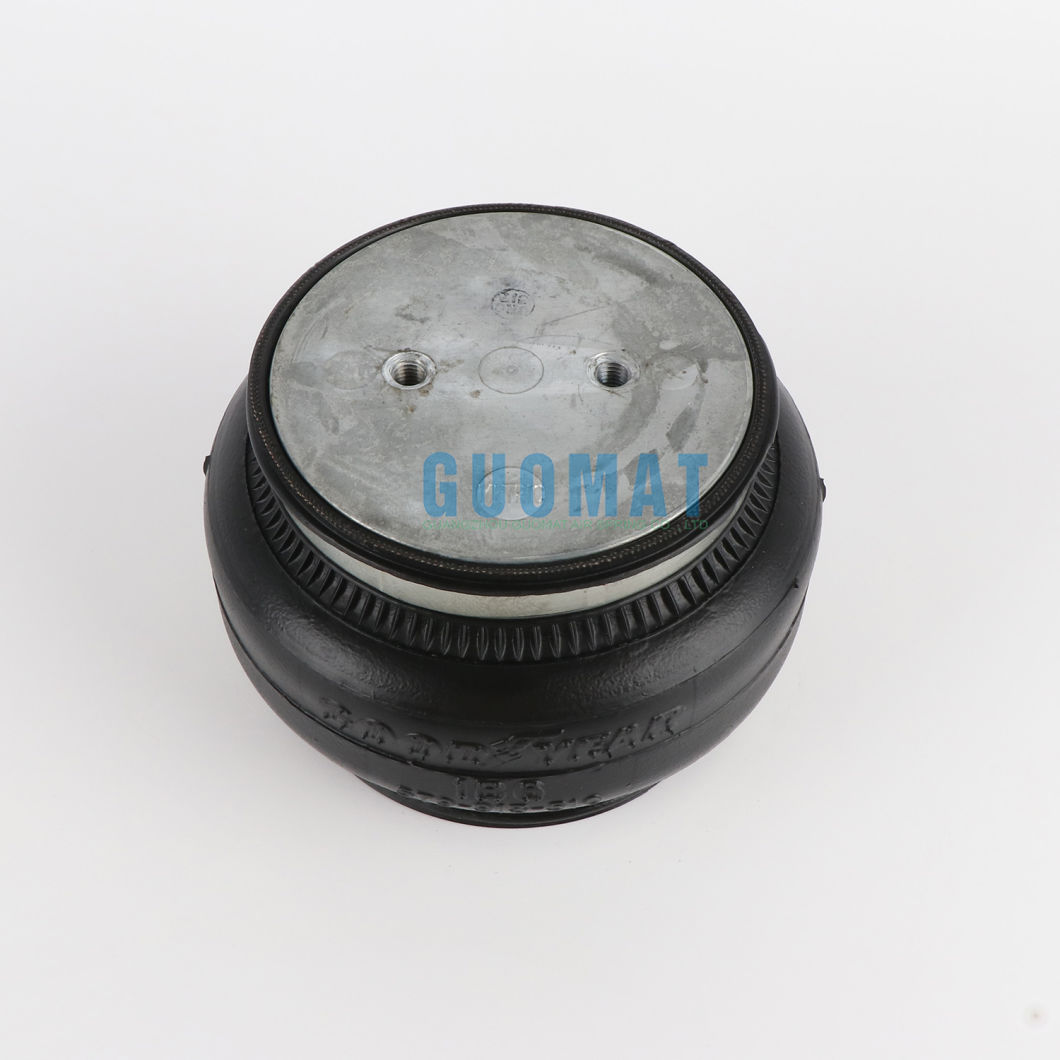

    Goodyear 1B6-833 Air Spring Single Convoluted Air Spring 579912833 with Aluminum Plate


    OEM Original Manufacturer:


    Goodyear Original:1B6-833


    The usual below kinds of Goodyear air spring we have

    Nut/blind nut
    Top cover screw (nut) teeth: 2 xM8-16UNC
    Top cover screw center distance: 44.5 mm
    Screw (nut) teeth of the bottom cover: 2 xM8-16UNC
    Center distance of bottom cover screw: 44.5mm

    Air hole/air inlet/air connector
    Exhaust hole/air inlet: G1 / 4
    Center distance between nut and air inlet: 22.25 mm

    Cover
    Top cover diameter (width): 105.4 mm
    Diameter of bottom cover (width): 105.4 mm

    ub rubber bellows
    Rubber bellows diameter: 150mm
    Compressed height: 71 mm
    Maximum height: 122 mm
    Working stroke: 71 mm

    Bumper block/bumper block
    No bumper block

    Twist/waist ring
    Belt loop: Without belt loop


    Replaces following OEM air springs:

    ContiTech Part number: FS 70-7 2681015000

    ContiTech Part number: FS 70-7 Cl 2681015000

    ContiTech Part number: FS 70-7 1/4 M8

    ContiTech Part number: FS 70-7 G1/4 M8

    ContiTech Part number: FS 70-7 Cl G1/4

    ContiTech Part number: FS 70-7 Cl G1/4 M8

    ContiTech Part number: FS 70-7 CI/ FS70-7CI/ FS707CI

    ContiTech Bellow Part number: FS 70-7 1 FS70-7 /FS707

    Firestone No. Part number: W01-M58-6155 1 WO1 M58 6155 1 W01M586155

    Firestone Style Part number: 131

    Enidine Part number: YM-FS 70-7-0160/ YM FS 70-7-0160 1 YMFS70-7-0160

    Enidine Part number: YM-FS 70-7 CI G1/4 M8

    Enidine Part number: YI-FS 70-7-731/ YI FS 70-7-731 1 YIFS70-7-731

    Enidine Part number: YI-FS 70-7 CI 1/4NPT 3/8-16UNC

    Goodyear Part number: 1B6- 83311B6833 1 1B6833

    Goodyear Flex No. Part number: 579-913-510 1579 913 510/ 579913510

    Goodyear Part number: 1B6- -530 / 1B6 530/ 1B6530

    Goodyear Flex No. Part number: 579-913-510 1579 913 510/ 579913510

    Enidine Part number: YI-1B6- -5301 YI 1B6530/ Yl1B6530

    Phoenix Part number: SP1 B 05 1 SP1B05

    Bosch Part number: 822419002

    Festo Part number: EB-165-65/ EB 16565/ EB16565

    Weforma Part number: WBE 200-E1 1 WBE200-E1 / WBE200E1

    Vigor Part number: 1B 50021 1B5002

    Vigor Bellow Part number:1B70-7 /1B70 7 /1B707

    VKNTECH Part number:1B 70701 1B7070

    VKNTECH Bellow Part number: 1B70-7 /1B70 7 /1B707

    EAA Part number:1E70-7 /1E70 7 /1E707

    EAA Bellow Part number:1E70-7 /1E70 7 /1E707

    HONGLI Part number: JBF100/96-1/ JBF100 961/ JBF100961

    CHENGUANG Part number: 150086J-1 1150086J11150086J1


    5799128310001920095541YENIDINE YI-1B6-831ENIDINE YI-1B6-831
    1B6-83320263189N1B6-8331B6-833
    5799128330001920095542YENIDINE YI-1B6-833ENIDINE YI-1B6-833
    5799128340009020806000YC 1B6-833C 1B6-833
    1B6-83520488587N1B6-8351B6-835
    5799128350001920117074YENIDINE YI-1B6-835ENIDINE YI-1B6-835
    1B7-84020680822N1B7-8401B7-840
    5799128400001920095543YENIDINE YI-1B7-840ENIDINE YI-1B7-840
    5799128500000020384830Y1B8-8501B8-850
    5799128500001920095544YENIDINE YI-1B8-850ENIDINE YI-1B8-850
    5799128600001920117076YENIDINE YI-1B8-860ENIDINE YI-1B8-860
    5799125280009020811600YC 1B6-530C 1B6-530
    5799125290009020811601YC 1B6-535C 1B6-535
    1B6-53020095484N1B6-5301B6-530
    5799125300001920095485YENIDINE YI-1B6-530ENIDINE YI-1B6-530
    1B6-53120095486N1B6-5311B6-531
    5799125310001920095487YENIDINE YI-1B6-531ENIDINE YI-1B6-531
    1B6-53220095488N1B6-5321B6-532
    5799125320001920095489YENIDINE YI-1B6-532ENIDINE YI-1B6-532
    5799125330000020095490Y1B6-5331B6-533
    1B6-53520095491N1B6-5351B6-535
    5799125350001920095492YENIDINE YI-1B6-535ENIDINE YI-1B6-535
    1B6-53620095493N1B6-5361B6-536
    5799125360001920095494YENIDINE YI-1B6-536ENIDINE YI-1B6-536
    1B6-53820065951N1B6-5381B6-538
    5799125380001920095496YENIDINE YI-1B6-538ENIDINE YI-1B6-538

    Goodyear 1b6-833 Air Spring Single Convoluted Air Spring 579912833 with Aluminum Plate
    Goodyear 1b6-833 Air Spring Single Convoluted Air Spring 579912833 with Aluminum Plate
    Goodyear 1b6-833 Air Spring Single Convoluted Air Spring 579912833 with Aluminum Plate
