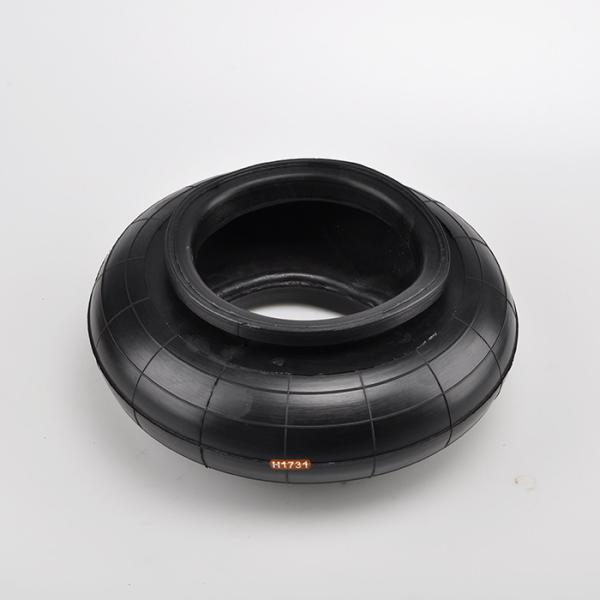

    1B20 Phoenix Air Spring Single Convoluted 230116-1 Helper Air Bag

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 230116-1
    Certification : ISO/TS16949:2009
    Payment Terms : T/T, Western Union,Paypal or Others
    Supply Ability : 1000pcs/week
    Delivery Time : 3-8 Working Days
    • Product Details
    • Company Profile

    1B20 Phoenix Air Spring Single Convoluted 230116-1 Helper Air Bag

    Phoenix Air Spring 1B20 Single Convoluted Air Spring 230116-1 Max OD 305mm


    Technical data of AIRSUSTECH 230116-1
    Loading capacity max. (7 bar)23.80 kN
    Max. lifting pressure8.0 bar
    Diameter max.305 mm
    Required space Ø330 mm
    Height max.175 mm
    Height min.55 mm
    Weight1.02 kg
    Force to collapse to min. height

    S.No.Original Manuf.DescriptionQuantity
    (ContiTech)
    1PhoenixFS 310-12 VP1
    Part No. 1B 20
    2
    AIRSUSTECH
    230116-11

    AIRSUSTECH 230116-1 Replaces Phoenix Air Spring 1B20: Specifications


    ❶Nut / Blind Nut

    The Long Of The Nut:25 mm

    Top Cover Plate Screw number: 8 pcs

    Bottom Cover Plate Screw number : 8 pcs

    Top Cover Plate Screw (Nut) Tooth : M10

    Screw Center Distance of Top Cover Plate :

    Bottom Cover Plate Screw (Nut) Tooth : M10

    Screw Center Distance of Bottom Cover Plate :

    ❷ Gas Hole / Air inlet / Air Fitting

    Gas Hole / Air inlet : G1/2

    ❸ Cover Plate

    Top Diameter: 172 mm

    Bottom Cover Plate Diameter: 172 mm

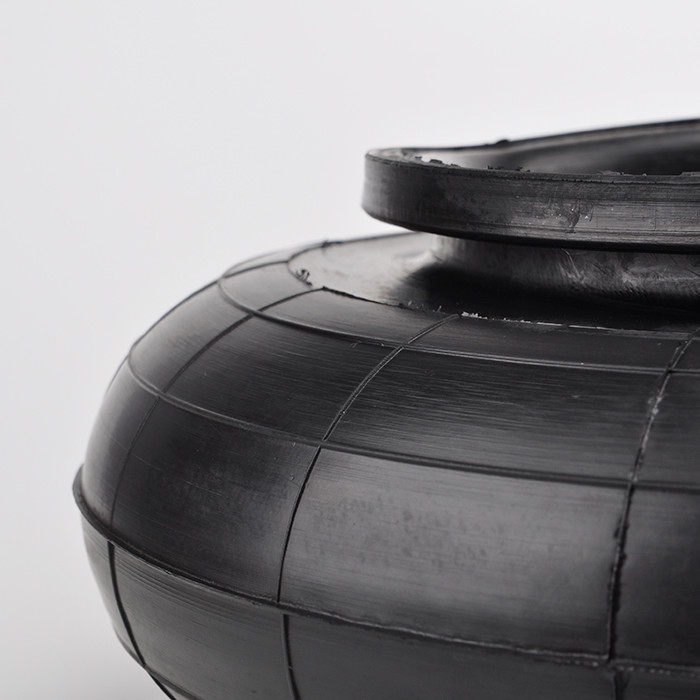

    ❹Rubber Bellows

    Rubber Bellows Natural Diameter : 150 mm

    Rubber Bellows Natural Height :115 mm

    ❺ Bumper block / Buffer block

    Without Bumper Block

    ❻ Girdle Hoop / Girdle Ring

    Without Girdle Hoop


    Other double convoluted H kinds Rubber air spring models:


    Air Spring NO.LoadDesign H.Min. H.Safe ElongationFull Stroke
    235210H-280245165
    156130H-27014676
    680262H-21931321290302212
    630262H-21580121090300210
    580214H-21429315888246158
    520217H-21104915990249159
    480217H-2970016188249161
    430255H-2642720590295205
    400255H-2535620590295205
    400217H-2630015990249159
    380221H-2535216590255165
    360214H-2457015888246158
    350255H-2409820590295205
    330254H-2316620288290202
    330214H-2398715888246158
    310214H-2299215788245157
    300170H-2304511085195110
    290265H-2180021390303213
    280214H-2248015888246158
    252163H-2164415880238158
    250180H-219041228420684
    235152H-21667987617498
    230214H-2145715888246158
    200142H-21195847816284
    168132H-2832797215179
    160166H-259310882190108
    130142H-2314907216290

    The Composition Of Industrial Convoluted Rubber Air Spring Element Has The Following Aspects


    Nut / Blind Nut - As well a permanent part of the Cover Plate assembly. Provides an alternative to bolt installation system. It is inside defect within the iron plate


    Gas Hole / Air inlet / Air Fitting - Most usually 1/4 N.P.T. which provides the air entrance to the rubber bellows.


    Cover Plate - Curled up to more durable bellows design and the largest quality control in the factory. Allows 100% of the leak test before shipment.


    Rubber Bellows - Air Bellows includes four layers of materials: an inner layer, two layer cord - reinforced fabrics, and a cover. Construction of a natural rubber provides - 65F functional properties.


    Bumper block / Buffer block - Solid rubber or engineering plastic device designed to prevent major damage to the vehicle or suspension in the event of a sudden loss of air pressure in the spring.


    Girdle Hoop / Girdle Ring - Molded wire-wound ring to provide lateral stability of the complex type spring bellows.
