    Firestone Load Leveling Air Bags 3B12-325 Goodyear Air Spring 330mm

    Ask Lasest Price
    Supply Ability : 1000pcs/week
    Payment Terms : T/T, Western Union,Paypal or Others
    Brand Name : Goodyear
    Certification : ISO/TS16949, ISO9001
    Delivery Time : 3-8 Working Days
    Model Number : 3B12-325
    • Product Details
    • Company Profile

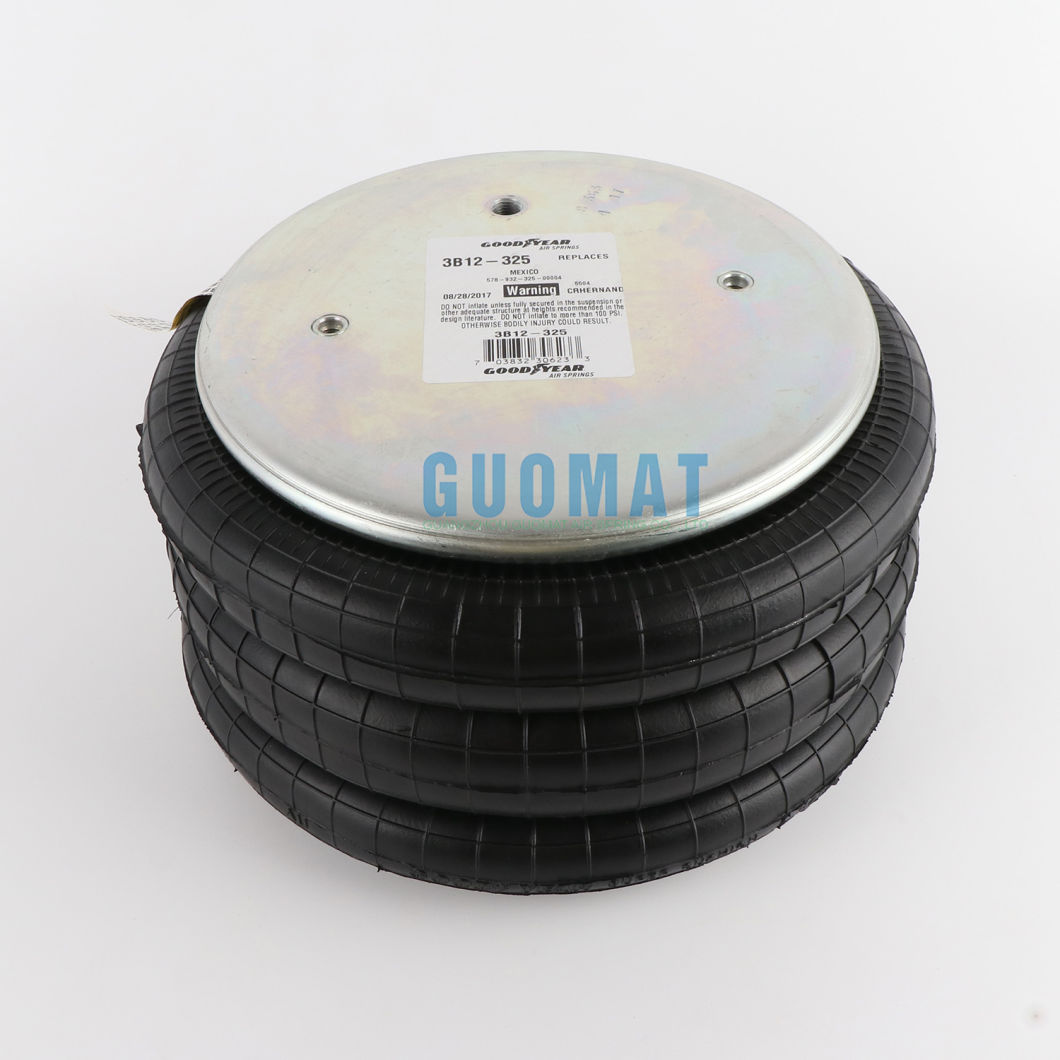

    Firestone Load Leveling Air Bags 3B12-325 Goodyear Air Spring 330mm

    Genuine Goodyear Air Spring 3B12-325 Triple Convoluted 578933103 Ref. to Firestone W01-358-8048

    Goodyear 3B12-325 Cross others OEM


    Goodyear Parts NO.: 3B12-325;

    Goodyear Flexmember Parts NO.: 578-93-3-103 ;
    Goodyear Parts NO.:3B12 325;

    Goodyear Flexmember Parts NO.:578 93 3 103;
    Goodyear Parts NO.:3B12325
    Goodyear Flexmember Parts NO.:578933103
    Flexmember 578 93 2 325;
    Flexmember 578-93-2-325;
    Flexmember 578932325
    Firestone Parts NO.: W01-358-8048;
    Firestone Parts NO.: W01 358 8048;
    Firestone Parts NO.: W013588048
    Contitech Parts NO.:
    FT 430-32 CI 1/4 NPT;
    Contitech Parts NO.:
    FT 430 32 CI 1/4 NPT;
    Contitech Parts NO.:
    FT430 32 CI 1/4 NPT;


    3B12-325 Goodyear Technical parameters


    Nut / Blind Nut


    Top Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC

    Screw Center Distance of Top Cover Plate : 157.5 mm

    Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC

    Screw Center Distance of Bottom Cover Plate : 157.5 mm


    Gas Hole / Air inlet / Air Fitting

    Gas Hole / Air inlet : 1/4-18NPTF

    Screw Center Distance Between Gas Hole and Nut : 73 mm


    Cover Plate

    Top Cover Plate Diameter: 228.6 mm

    Bottom Cover Plate Diameter: 228.6 mm


    Rubber Bellows

    Rubber Bellows MAX Diameter: 330 mm

    Rubber Bellows Natural Diameter : 300 mm

    The Working Stroke : MIN 120 mm to MAX 457 mm

    Maximum Height : 457 mm

    Minimum Height :120 mm

    Stroke Height : 179mm


    Bumper block / Buffer block

    Without Bumper Block


    Girdle Hoop / Girdle Ring

    With Girdle Hoop :One Pieces of Girdle Hoop


    Number of top plate holes / studs: 2
    Top plate diameter: 9
    Top plate C to C diameter: 6.2 inch
    Base plate hole bolt Qyt: 2
    Base plate diameter: 9 inch
    Diameter of base plates C to C: 6.2 inch
    Base plate part number:
    Base plate alignment: parallel
    Bumper: no
    bracket:
    Minimum height: 4.8 inch
    Maximum height: 18 inch


    Other kinds of goodyear air springs:


    Goodyear Air Spring OE NO.Goodyear Air Spring OE Bellows NO.Goodyear order NO.Bumper or notGoodyear Air Spring OE NO.
    3B12-3215789323210000020112849Y3B12-321
    ENIDINE YI-3B12-3215789323210001920112990YENIDINE YI-3B12-321
    3B12-3225789323220000020118920Y3B12-322
    3B12-322 Bellows Air Spring3B12-32220118921N3B12-322 Bellows Air Spring
    3B12-3235789323230000020118922Y3B12-323
    3B12-323 Bellows Air Spring3B12-32320118923N3B12-323 Bellows Air Spring
    3B12-3245789323240000020113782Y3B12-324
    3B12-324 Bellows Air Spring3B12-32420137951N3B12-324 Bellows Air Spring
    3B12-3255789323250000020118924Y3B12-325
    3B12-325 Bellows Air Spring3B12-32520118925N3B12-325 Bellows Air Spring
    ENIDINE YI-3B12-3255789323250001820118926YENIDINE YI-3B12-325
    ENIDINE YI-3B12-3255789323250001920118927YENIDINE YI-3B12-325
    3B12-3265789323260000020118928Y3B12-326
    3B12-326 Bellows Air Spring3B12-32620118929N3B12-326 Bellows Air Spring
    ENIDINE YI-3B12-3265789323260001820118931YENIDINE YI-3B12-326
    ENIDINE YI-3B12-3265789323260001920118930YENIDINE YI-3B12-326
    3B12-3275789323270000020132717Y3B12-327
    3B12-3273B12-32720132718N3B12-327
    3B12-3285789323280000020132490Y3B12-328
    3B12-328 Bellows Air Spring3B12-32820132491N3B12-328 Bellows Air Spring
    3B12-328 WATSON & CHALIN AS00195789323280007720215646Y3B12-328 WATSON & CHALIN AS0019
    3B12-3295789323290000020132492Y3B12-329
    3B12-329 Bellows Air Spring3B12-32920132493N3B12-329 Bellows Air Spring
    3B12-329 WATSON & CHALIN AS0048-2G5789323290007720215647Y3B12-329 WATSON & CHALIN AS0048-2G
    3B12-3305789323300000020130960Y3B12-330
    3B12-3305789323300000420130961Y3B12-330
    3B12-3345789323340000020156850Y3B12-334
    3B12-3343B12-33420156851N3B12-334
    3B12-334 FOR MDC5789323340005520551236Y3B12-334 FOR MDC
    3B12-3355789323350000020141253Y3B12-335
    3B12-335 Bellows Air Spring3B12-33520141254N3B12-335 Bellows Air Spring
    3B12-336 HENDRICKSON HEBRON 0046455789323360000020141257Y3B12-336 HENDRICKSON HEBRON 004645
    3B12-336 HENDRICKSON HEBRON 0046455789323360000420141258Y3B12-336 HENDRICKSON HEBRON 004645
    3B12-3375789323370000020156098Y3B12-337
    3B12-337 Bellows Air Spring3B12-33720156099N3B12-337 Bellows Air Spring
    3B12-3385789323380000020156259Y3B12-338


    Genuine Goodyear Air Spring 3b12-325 Triple Convoluted 578933103 Ref. to Firestone W013588048
    Genuine Goodyear Air Spring 3b12-325 Triple Convoluted 578933103 Ref. to Firestone W013588048
    Genuine Goodyear Air Spring 3b12-325 Triple Convoluted 578933103 Ref. to Firestone W013588048
    Genuine Goodyear Air Spring 3b12-325 Triple Convoluted 578933103 Ref. to Firestone W013588048
