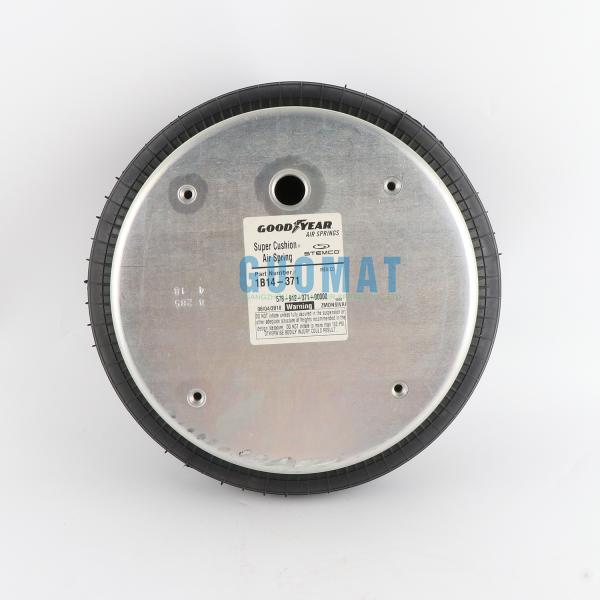

    FS530-14 Contitech Air Spring 1B14-371 Suspension Spring 578912371

    Goodyear Air Spring 1B14-371 with 3/4 NPT Air Inlet M8 Bolts Bellows 578912371 Contitech FS530-14

    1B14-371 Goodyear Specifications and Technical Data


    Goodyear part number:1B14-371 ;
    Goodyear part number:1B14 371;
    Goodyear part number:1B14371

    Goodyear Bellows 578 912 371;
    Goodyear Bellows 578912371;
    Goodyear Bellows 578-91-2-371

    Cross Contitech NO.:FS 530-14;
    Cross Contitech NO.:FS53014;
    Cross Contitech NO.:FS530-14

    nuts/blind nuts

    Upper cover screw (nut) teeth: 4 X M8

    Top plate screw center distance: 158.8 mm

    Screw (nut) teeth of the bottom cover plate: 4 x M8

    The screw center distance of the bottom cover plate: 158.8 mm

    The air hole distance between the nuts is 79.4 mm



    Ga air hole/air inlet/air fitting

    Air hole/air inlet: 3/4 N P.T.F.



    over cover

    Top plate diameter (width): 289mm

    Diameter (width) of the bottom cover plate: 289 mm



    Bell rubber bellows

    Rubber bellows natural diameter 380 mm

    Maximum diameter of rubber bellows: 406 mm

    Natural height of rubber bellows: 120 mm

    Working stroke: maximum 160 mm to minimum 81 mm



    B bumper block/buffer block

    No bumper block



    G belt/belt loop

    With belt hoop: Without belt hoop

    Vibration isolation - dynamic characteristic value
    Design height H: 5.91 inches recommended, minimum 4.72 inches

    Pressure p [psi]406080100120Vol. V [in.3]
    Force (Load) [lbf]384058007820983011800685
    Spring rate [lbf/in.]19802590328040604630
    Natural frequency [Hz]2.22.12.12.02.0

    Pneumatic Applications - Static Characteristics

    Force F [lbf]

    Pressure p [psi]406080100120Vol. V [in.3]
    Height H [in.]6.5334050606840866010500740
    6.0376056907650966011600690
    5.54140625083801060012700650
    5.04450668089601130013500610
    4.54720707094601190014300560
    4.04940738098701240014900510
    3.551207610102001280015300450
    3.052607810105001310015700380
    2.553507970107001340016000300

    The usal kinds of Single Convolution Air Actuator


    Single Convolution Air Actuator
    All Measurements Are In Mm
    Goodyear NO.Contitech NO.Min. Design heightInstallation Space RequiredMax. Stroke
    1B14-371FS 530-1451420134


    Other kinds of goodyear air springs:
    578912350000195789123500001920094306YENIDINE YI-1B14-350ENIDINE YI-1B14-350
    578912351000005789123510000020094308Y1B14-3511B14-351
    578912351000041B14-35120094309N1B14-351 Bellows Air Spring1B14-351 Bellows Air Spring
    578912351000195789123510001920094310YENIDINE YI-1B14-351ENIDINE YI-1B14-351
    578912352000005789123520000020094312Y1B14-3521B14-352
    578912352000041B14-35220116210N1B14-3521B14-352
    578912352000195789123520001920094313YENIDINE YI-1B14-352ENIDINE YI-1B14-352
    578912353000005789123530000020094314Y1B14-3531B14-353
    578912353000041B14-35320116211N1B14-3531B14-353
    578912353000195789123530001920094315YENIDINE YI-1B14-353ENIDINE YI-1B14-353
    578912358000005789123580000020094316Y1B14-3581B14-358
    578912358000041B14-35820035777N1B14-358 Bellows Air Spring1B14-358 Bellows Air Spring
    578912362000005789123620000020094323Y1B14-3621B14-362
    578912362000045789123620000420116212Y1B14-3621B14-362
    578912362000195789123620001920094324YENIDINE YI-1B14-362ENIDINE YI-1B14-362
    578912364000005789123640000020094325Y1B14-364 EXT1B14-364 EXT
    578912364000041B14-36420094326N1B14-3641B14-364
    578912364000195789123640001920094327YENIDINE YI-1B14-364ENIDINE YI-1B14-364
    578912368000945789123680009420811431YC 1B14-352C 1B14-352
    578912371000005789123710000020094334Y1B14-3711B14-371
    578912371000195789123710001920094335YENIDINE YI-1B14-371ENIDINE YI-1B14-371
    578912372000191B14-37220106777Y1B14-3721B14-372
    578912373000005789123730000020140234Y1B14-3731B14-373
    578912373000041B14-37320140235N1B14-373 Bellows Air Spring1B14-373 Bellows Air Spring

    Goodyear Air Spring 1b14-371 with 3/4 NPT Air Inlet M8 Bolts Bellows 578912371 Cross to Contitech Fs530-14

    Goodyear Air Spring 1b14-371 with 3/4 NPT Air Inlet M8 Bolts Bellows 578912371 Cross to Contitech Fs530-14
    Goodyear Air Spring 1b14-371 with 3/4 NPT Air Inlet M8 Bolts Bellows 578912371 Cross to Contitech Fs530-14
