    0.2Mpa Contitech Air Bellows 2B15-375 Goodyear Air Spring FD530-30

    Ask Lasest Price
    Supply Ability : 1000pcs/week
    Payment Terms : T/T, Western Union,Paypal or Others
    Brand Name : Goodyear
    Certification : ISO/TS16949, ISO9001
    Delivery Time : 3-8 Working Days
    Model Number : 2B15-375
    • Product Details
    • Company Profile

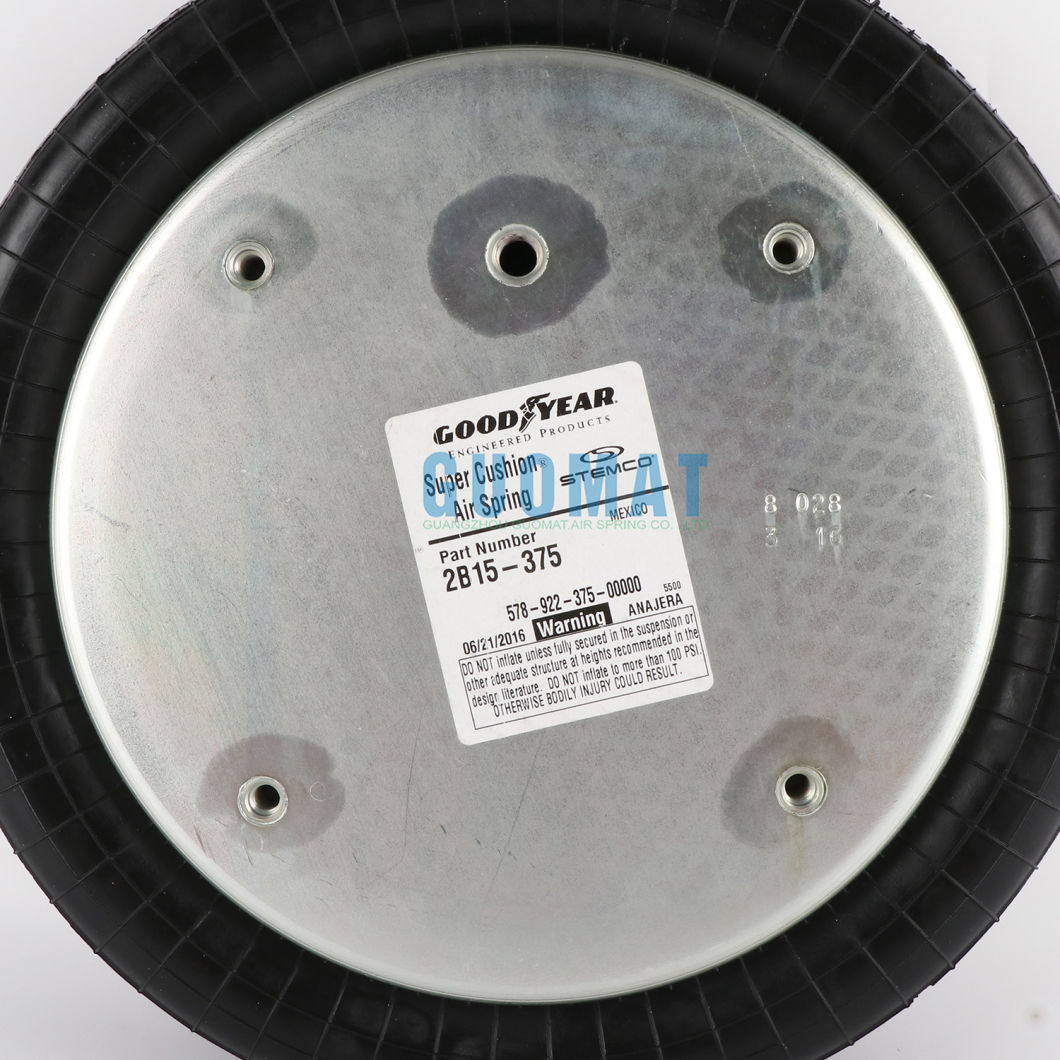

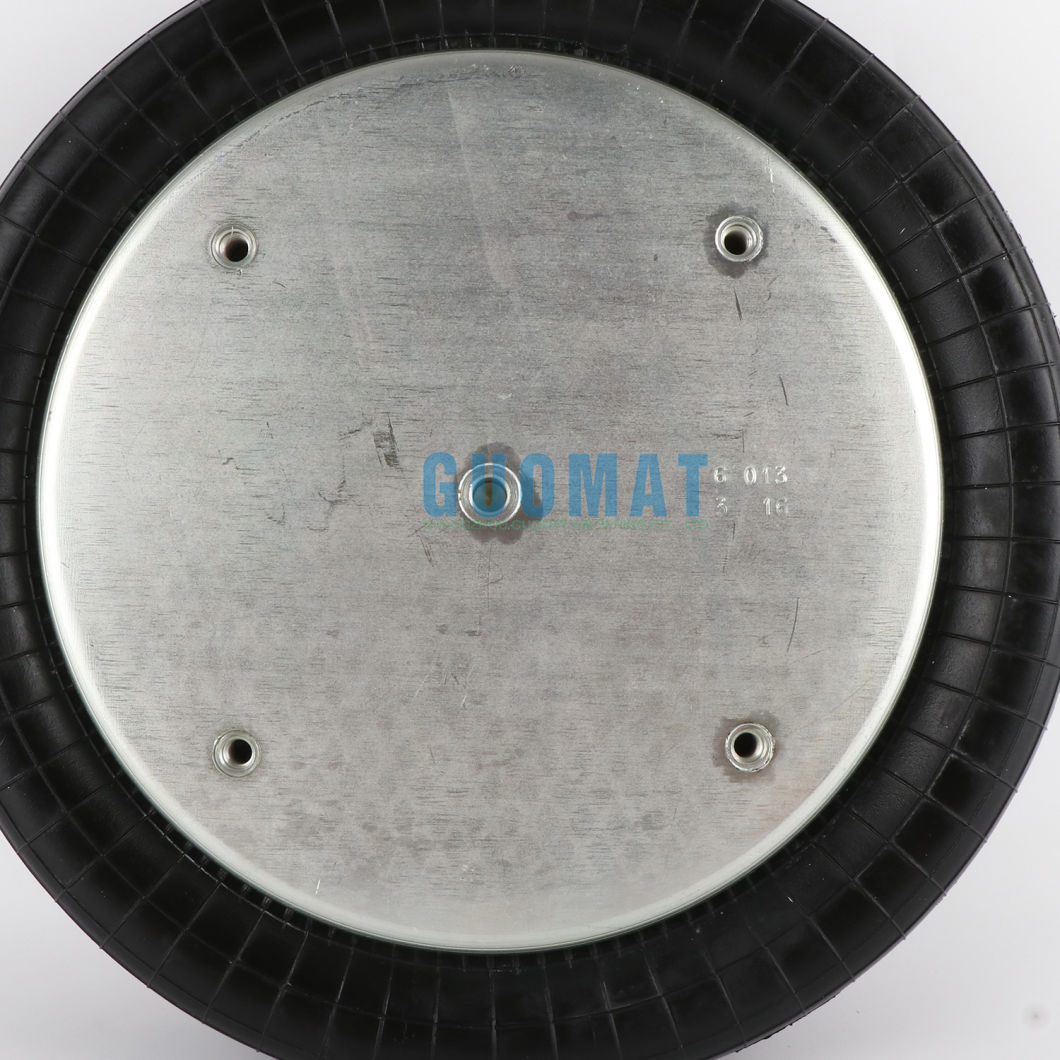

    0.2Mpa Contitech Air Bellows 2B15-375 Goodyear Air Spring FD530-30

    Double Convoluted 2B15-375 Goodyear Air Springs Bag Ref. to Contitech FD530-30 Firestone W013586800


    2B15-375 Goodyear Cross OEM

    Goodyear Parts NO.:2B14-468 ;
    Goodyear Parts NO.:2B14 468;
    Goodyear Parts NO.:2B14468
    Goodyear Parts NO.:2B14-362,
    Goodyear Parts NO.:2B14 362,
    Goodyear Parts NO.:2B14362,
    Goodyear Parts NO.:2B14-450,
    Goodyear Parts NO.:2B14 450,
    Goodyear Parts NO.:2B14450,
    Goodyear Parts NO.:2B15-375,
    Goodyear Parts NO.:2B15 375,
    Goodyear Parts NO.:2B15375

    Firestone Parts NO.:W01-358-6800

    Firestone Parts NO.::W01 358 6800

    Firestone Parts NO.::W013586800
    Firestone:21D-2
    Firestone:21-2
    Firestone:21 2

    ContiTech Parts NO:FD530-30 518 1/4 NPT

    ContiTech Parts NO::FD530-30518 1/4 NPT


    Nut / Blind Nut
    Top Cover Plate Screw (Nut) Tooth : 4 pcs X 3/8-16UNC
    Screw Center Distance of Top Cover Plate : 159 mm
    Bottom Cover Plate Screw (Nut) Tooth : 4 pcs X 3/8-16UNC
    Screw Center Distance of Bottom Cover Plate : 159 mm

    Gas Hole / Air inlet / Air Fitting
    Gas Hole / Air inlet : 1/4NPT
    Center Distance Between Nut and Air inlet: 79.5 mm

    Cover Plate
    Top Cover Plate Diameter (Width): 287 mm
    Bottom Cover Plate Diameter (Width): 287 mm

    Rubber Bellows
    Rubber Bellows MAX Diameter : 401 mm
    Compressed Height: 76.2mm / 3 inches
    Maximum Height: 351 mm
    Working Stroke : 254mm

    Bumper block / Buffer block
    Without Bumper Block

    Girdle Hoop / Girdle Ring
    With Girdle Hoop :One Pieces of Girdle Hoop

    Compressed Height: 3.00 inches
    Top Plate Number:3131 or 3134
    Top Plate Width:11.31 inches
    Piston Number:3130
    Piston Width:11.31 inches
    Firestone Bellows Number:21-2
    Triangle Part Number:4518
    Triangle Bellows Number:6336
    Watson & Chalin #:AS-0034
    Note:see W01-358-6808


    Maximum diameter @ 100 PSIG (inches)Bead type
    162
    Maximum height (inches)Blind nut center (inch)
    11.76.25
    Maximum travel (inches)Air isolator
    8.7Design height
    Minimum available height (inches)10.5
    3Load (at design height): 40 psig (pounds)
    80PSI force (lb) at 1 inch stroke3460
    11330Load (at design height): 60 psig (pounds)
    80PSI force (lb) at 3 inches stroke5350
    10670Load (at design height): 80 psig (pounds)
    Maximum thrust at maximum stroke @ 80PSI (lbs)7280
    5850Natural frequency (@ 80 psig) (cpm)
    material95
    2 layer standard lineIsolation percentage at a forced frequency of 400 CPM
    Finishing details94.1
    Isolation percentage at a forced frequency of 800 CPM
    98.6

    2b15-375 Goodyear Double Convoluted Air Springs Bag Ref. to Contitech Fd530-30 Firestone W013586800
    2b15-375 Goodyear Double Convoluted Air Springs Bag Ref. to Contitech Fd530-30 Firestone W013586800
    2b15-375 Goodyear Double Convoluted Air Springs Bag Ref. to Contitech Fd530-30 Firestone W013586800

    578922366000005789223660000020094692Y2B14-3662B14-366
    578922366000042B14-36620094693N2B14-366 Bellows Air Spring2B14-366 Bellows Air Spring
    578922367000005789223670000020094697Y2B14-3672B14-367
    578922367000042B14-36720035802N2B14-367 Bellows Air Spring2B14-367 Bellows Air Spring
    578922369000005789223690000020094702Y2B14-369 EXT2B14-369 EXT
    578922375000005789223750000020094705N2B15-3752B15-375
    578922375000045789223750000420116535Y2B15-3752B15-375
    578922375000195789223750001920094706YENIDINE YI-2B15-375ENIDINE YI-2B15-375
    578922376000005789223760000020094707Y2B15-3762B15-376
    578922376000045789223760000420116536Y2B15-3762B15-376
    578922376000195789223760001920094708YENIDINE YI-2B15-376ENIDINE YI-2B15-376
    578922377000005789223770000020094709Y2B15-3772B15-377
    578922377000042B15-37720116537N2B15-3772B15-377
    578922377000195789223770001920094710YENIDINE YI-2B15-377ENIDINE YI-2B15-377
    578922378000005789223780000020094711Y2B15-3782B15-378
    578922378000045789223780000420116538Y2B15-3782B15-378
    578922378000195789223780001920094712YENIDINE YI-2B15-378ENIDINE YI-2B15-378
    578922383000005789223830000020119612Y2B14-3832B14-383
    578922383000042B14-38320119613N2B14-383 Bellows Air Spring2B14-383 Bellows Air Spring
    578922383000775789223830007720215643Y2B14-383 WATSON & CHALIN AS00892B14-383 WATSON & CHALIN AS0089
    578922383000825789223830008220657134Y2B14-383 Torshin2B14-383 Torshin
    578922383001115789223830011120662408Ydummy for 2b14-383dummy for 2b14-383
    578922384000005789223840000020143080Y2B15-384 DALLAS SMITH DSC 10-10482B15-384 DALLAS SMITH DSC 10-1048
    578922385000005789223850000020371564Y2B14-3852B14-385
    578922386000945789223860009420806168YC 2B15-375C 2B15-375
    578922387000915789223870009120806482YP 2B14-383P 2B14-383
    578922388000915789223880009120806483YP 2B14-462P 2B14-462
    578922389000945789223890009420810062YC 2B10-226C 2B10-226
    578922390000905789223900009020811264YC 2B14-462C 2B14-462
    578922391000905789223910009020811288YC 2B14-383C 2B14-383
    578922392000905789223920009020811289YC 2B12-346C 2B12-346
    578922402000005789224020000020094715Y2B12-4022B12-402
    578922402000042B12-40220035803N2B12-402 Bellows Air Spring2B12-402 Bellows Air Spring
    578922406000005789224060000020094724Y2B12-4062B12-406
    578922406000042B12-40620094725N2B12-406 Bellows Air Spring2B12-406 Bellows Air Spring
    578922410000005789224100000020094740Y2B12-4102B12-410
