    3B12-320 Triple Bellow Air Bag 578-93-3-100 3B12-320 Suspension

    Ask Lasest Price
    Supply Ability : 1000pcs/week
    Payment Terms : T/T, Western Union,Paypal or Others
    Brand Name : Goodyear
    Certification : ISO/TS16949, ISO9001
    Delivery Time : 3-8 Working Days
    Model Number : 3B12-320
    • Product Details
    • Company Profile

    3B12-320 Triple Bellow Air Bag 578-93-3-100 3B12-320 Suspension

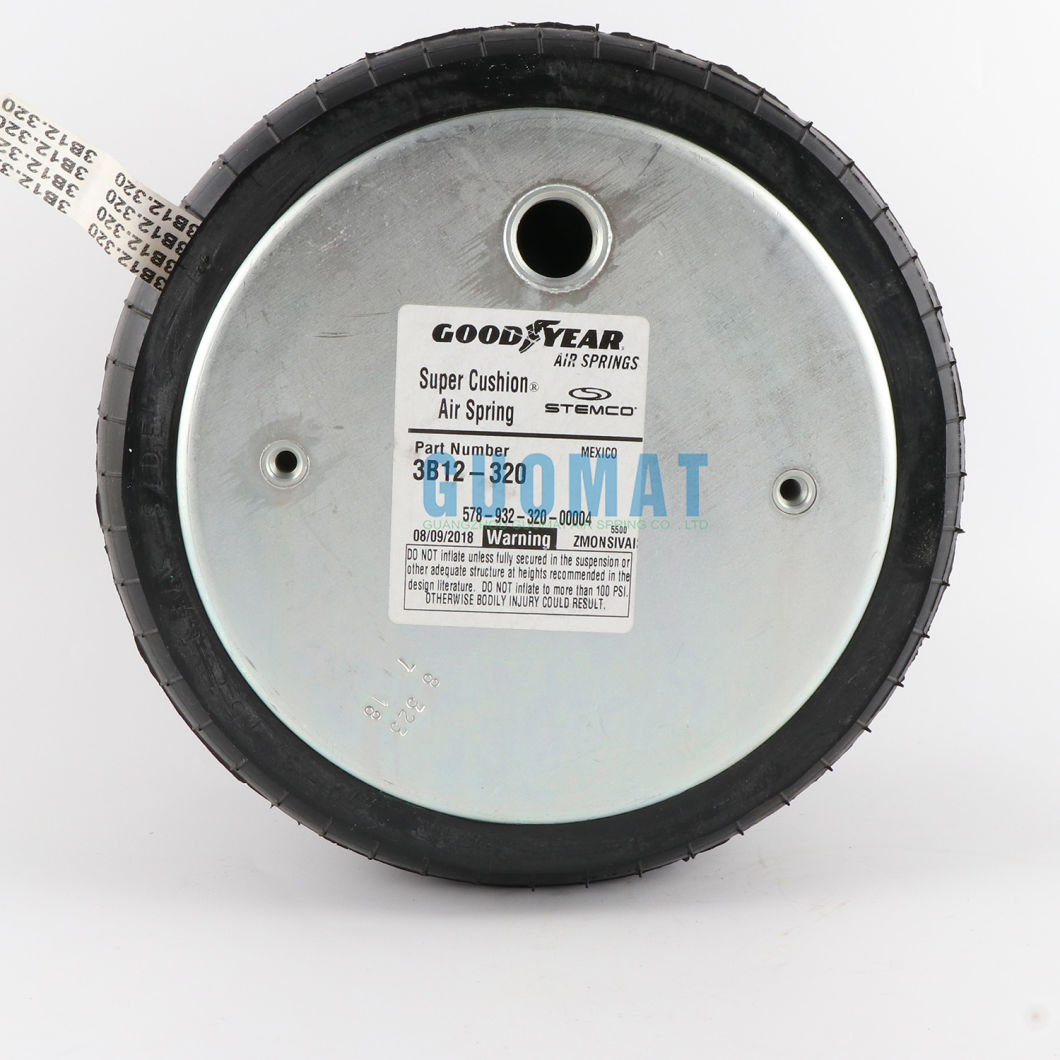

    Goodyear Air Spring 3B12-320 Original Triple Convolutions Flexmember 578-93-3-100

    3B12-320 Cross others OEM

    Goodyear Parts NO.: 3B12-320;
    Goodyear Parts NO.:3B12 320;
    Goodyear Parts NO.:3B12320
    Goodyear Flexmember Parts NO.: 578-93-3-100 ;
    Goodyear Flexmember Parts NO.:578 93 3 100;
    Goodyear Flexmember Parts NO.:578933100
    Flexmember 578 93 2 320;
    Flexmember 578-93-2-320;
    Flexmember 578932320
    Firestone Parts NO.: W01-358-7437;
    Firestone Parts NO.: W01 358 7437;
    Firestone Parts NO.: W013587437
    Contitech Parts NO.: FD 330-22 334;
    Contitech Parts NO.:FD 330 22 334;
    Contitech Parts NO.:FD33022334
    Goodyear: 2B12-320
    Ridewell: 1003587437C
    Neway: 90557015


    3B12-320 Goodyear Technical parameters


    Nut / Blind Nut


    Top Cover Plate Screw (Nut) Tooth : 2 pcs X1/2-13UNC

    Screw Center Distance of Top Cover Plate : 157 mm

    Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 1/2-13UNC

    Screw Center Distance of Bottom Cover Plate : 157 mm


    Gas Hole / Air inlet / Air Fitting

    Gas Hole / Air inlet : 1/4-18NPTF

    Screw Center Distance Between Gas Hole and Nut : 73 mm


    Cover Plate

    Top Cover Plate Diameter: 228.6 mm

    Bottom Cover Plate Diameter: 228.6 mm


    Rubber Bellows

    Rubber Bellows MAX Diameter: 325 mm

    Rubber Bellows Natural Diameter : 300 mm

    The Working Stroke : MIN 120 mm to MAX 457 mm

    Maximum Height : 305 mm

    Minimum Height :104 mm

    Stroke Height : 201mm


    Bumper block / Buffer block

    Without Bumper Block


    Girdle Hoop / Girdle Ring

    With Girdle Hoop :One Pieces of Girdle Hoop

    Goodyear® Goodyear air spring features


    Goodyear® Goodyear air springs utilize the compressive elasticity of air, and are essentially different from metal springs such as leaf springs. It has excellent characteristics as a suspension spring. For example, the combined use with a control device keeps the height of the vehicle always constant or arbitrarily changed. It can also improve the vehicle's inclination by individually controlling the left and right air springs.


    Modern road transportation places high demands on the comfort and efficiency of automobiles. STEMCO (Stemco) company's mission is to "make our roads safer", knowing user satisfaction, easy and comfortable user experience, is the foundation of the product, and fully consider commercial vehicles in product design The demanding requirements of trucks and customers, such as its super-buffered air springs, use the materials and design of the load to provide industry-leading vibration damping, light weight and long service life. In addition, the unparalleled comfort performance design makes the super-buffer air spring reduce driving fatigue, reduce parts wear and tear, shorten the failure time, and thus improve safety performance.

    578932314000005789323140000020094975Y3B12-3143B12-314
    578932315000005789323150000020099677Y3B12-3153B12-315
    578932315000043B12-31520127021N3B12-315 Bellows Air Spring3B12-315 Bellows Air Spring
    578932316000005789323160000020094977Y3B12-316 KIT3B12-316 KIT
    578932316000043B12-31620136005N3B12-316 KIT3B12-316 KIT
    578932317000005789323170000020094978Y3B12-3173B12-317
    578932319000005789323190000020109195Y3B12-3193B12-319
    578932319000043B12-31920109214N3B12-319 Bellows Air Spring3B12-319 Bellows Air Spring
    578932320000195789323200001920106776YENIDINE YI-3B12-320ENIDINE YI-3B12-320
    578932321000005789323210000020112849Y3B12-3213B12-321
    578932321000195789323210001920112990YENIDINE YI-3B12-321ENIDINE YI-3B12-321
    578932322000005789323220000020118920Y3B12-3223B12-322
    578932322000043B12-32220118921N3B12-322 Bellows Air Spring3B12-322 Bellows Air Spring
    578932323000005789323230000020118922Y3B12-3233B12-323
    578932323000043B12-32320118923N3B12-323 Bellows Air Spring3B12-323 Bellows Air Spring
    578932324000005789323240000020113782Y3B12-3243B12-324
    578932324000043B12-32420137951N3B12-324 Bellows Air Spring3B12-324 Bellows Air Spring
    578932325000005789323250000020118924Y3B12-3253B12-325
    578932325000043B12-32520118925N3B12-325 Bellows Air Spring3B12-325 Bellows Air Spring
    578932325000185789323250001820118926YENIDINE YI-3B12-325ENIDINE YI-3B12-325
    578932325000195789323250001920118927YENIDINE YI-3B12-325ENIDINE YI-3B12-325
    578932326000005789323260000020118928Y3B12-3263B12-326
    578932326000043B12-32620118929N3B12-326 Bellows Air Spring3B12-326 Bellows Air Spring
    578932326000185789323260001820118931YENIDINE YI-3B12-326ENIDINE YI-3B12-326
    578932326000195789323260001920118930YENIDINE YI-3B12-326ENIDINE YI-3B12-326
    578932327000005789323270000020132717Y3B12-3273B12-327
    578932327000043B12-32720132718N3B12-3273B12-327
    578932328000005789323280000020132490Y3B12-3283B12-328
    578932328000043B12-32820132491N3B12-328 Bellows Air Spring3B12-328 Bellows Air Spring
    578932328000775789323280007720215646Y3B12-328 WATSON & CHALIN AS00193B12-328 WATSON & CHALIN AS0019
    578932329000005789323290000020132492Y3B12-3293B12-329
    578932329000043B12-32920132493N3B12-329 Bellows Air Spring3B12-329 Bellows Air Spring
    578932329000775789323290007720215647Y3B12-329 WATSON & CHALIN AS0048-2G3B12-329 WATSON & CHALIN AS0048-2G
    578932330000005789323300000020130960Y3B12-3303B12-330
    578932330000045789323300000420130961Y3B12-3303B12-330
    578932334000005789323340000020156850Y3B12-3343B12-334
    578932334000043B12-33420156851N3B12-3343B12-334
    578932334000555789323340005520551236Y3B12-334 FOR MDC3B12-334 FOR MDC
    578932335000005789323350000020141253Y3B12-3353B12-335
    578932335000043B12-33520141254N3B12-335 Bellows Air Spring3B12-335 Bellows Air Spring
    578932336000005789323360000020141257Y3B12-336 HENDRICKSON HEBRON 0046453B12-336 HENDRICKSON HEBRON 004645
    578932336000045789323360000420141258Y3B12-336 HENDRICKSON HEBRON 0046453B12-336 HENDRICKSON HEBRON 004645
    578932337000005789323370000020156098Y3B12-3373B12-337
    578932337000043B12-33720156099N3B12-337 Bellows Air Spring3B12-337 Bellows Air Spring
    578932338000005789323380000020156259Y3B12-3383B12-338
    578932338000043B12-33820156300N3B12-338 Bellows Air Spring3B12-338 Bellows Air Spring
    578932339000005789323390000020160225Y3B12-3393B12-339
    578932339000043B12-33920160226N3B12-3393B12-339



    Goodyear Air Spring 3b12-320 Original Triple Convoluted Flexmember 578933100 Cross Firestone W013587437
    Goodyear Air Spring 3b12-320 Original Triple Convoluted Flexmember 578933100 Cross Firestone W013587437
    Goodyear Air Spring 3b12-320 Original Triple Convoluted Flexmember 578933100 Cross Firestone W013587437
