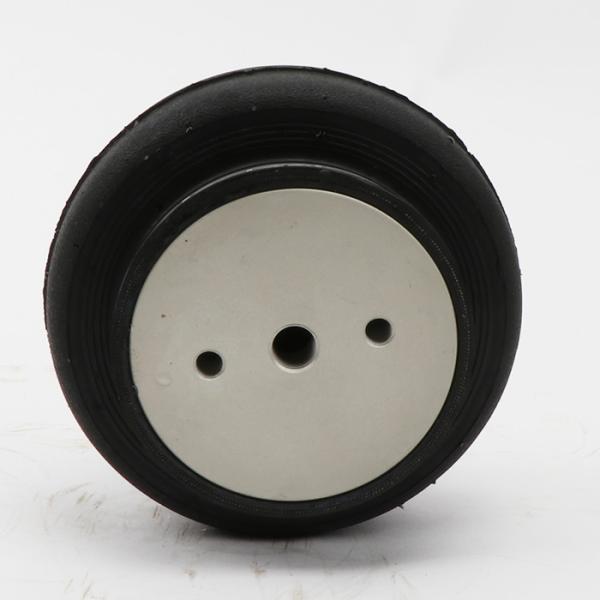

1B5-500 Air Suspension Spring Single AIRSUSTECH 1K130070 For Lumber Industry Machine

Weight and packing of AIRSUSTECH 1K130070:

Net Weight:1.0 KG

Gross Weight:1.3 KG

Package Size:160mm*160mm*160mm

Compressed height:55mm

Maximum Height:90mm

Full stroke:35mm

Working medium:water, air

Working pressure:< 0.7Mpa

Burst pressure:> 1.6Mpa

Endurance cycle:> 10"

Temperature:-35℃ ~+60℃

Quick details:

AIRSUSTECH 1K130070 product description:

The air spring shock absorber AIRSUSTECH 1K130070 refer to goodyear 1B5-500 can only push the bellows towards the workpiece, otherwise it must be equipped with a stroke limiter at the end of the stroke, otherwise the bellows will be overloaded

• In order to press the air spring shock absorber AIRSUSTECH 1K130070 refer to goodyear 1B5-500 to the minimum height, a restoring force is required. Usually, this is achieved by applying a load

• The entire bearing surface of the upper and lower plates of the air spring shock absorber AIRSUSTECH 1K130070 refer to goodyear 1B5-500 must be used to absorb the force

• Before disassembling the air spring shock absorber AIRSUSTECH 1K130070 refer to goodyear 1B5-500, the internal air must be released to prevent accidents and personal injury.

• During operation, the rubber air spring shock absorber AIRSUSTECH 1K130070 refer to goodyear 1B5-500 shall not be in contact with other parts

AIRSUSTECH 1K130070 Cross OEM Original Equipment Manufacturer:

AIRSUSTECH Part Number:1K130070

Goodyear: 1B5-500

❶Nuts/blind nuts
Number of top plate screws: 2
Number of bottom cover screws: 2
Nut distance: 44.5 mm
Nut screw: M8
❷Air hole/air inlet/air fittings
Air hole/air inlet: G1 / 4
❸Cover plate
Top plate diameter: 85 mm
Diameter of the bottom cover: 85 mm
❹Rubber bellows
Straight diameter of rubber bellows: 130 mm
In 0.7 pa, rubber bellows diameter: 150 mm
Working stroke: minimum 50 mm to maximum 100 mm
Design height of rubber bellows: 70 mm
❺Bumper block/bumper block
No bumper block
❻Belt loop/Belt loop
Without belt loop
