FS 530-14 CI 3/4 NPT Single Convoluted Air Spring Contitech Continental Bellows Style

AIRSUSTECH 1B53014-3/4​ product description:

The air spring shock absorber AIRSUSTECH 1B53014-3/4 refer to FS 530-14 CI 3/4 Contitech can only push the bellows towards the workpiece, otherwise it must be equipped with a stroke limiter at the end of the stroke, otherwise the bellows will be overloaded

• In order to press the air spring shock absorber AIRSUSTECH 1B53014-3/4 refer to FS 530-14 CI 3/4 Contitech to the minimum height, a restoring force is required. Usually, this is achieved by applying a load

• The entire bearing surface of the upper and lower plates of the air spring shock absorber AIRSUSTECH 1B53014-3/4 refer to FS 530-14 CI 3/4 Contitech must be used to absorb the force

• Before disassembling the air spring shock absorber AIRSUSTECH 1B53014-3/4 refer to FS 530-14 CI 3/4 Contitech, the internal air must be released to prevent accidents and personal injury.

• During operation, the rubber air spring shock absorber AIRSUSTECH 1B53014-3/4 refer to FS 530-14 CI 3/4 Contitech shall not be in contact with other parts

AIRSUSTECH 1B53014-3/4​ Cross OEM Original Equipment Manufacturer:

AIRSUSTECH Part Number: 1B53014-3/4​

Also known as: 74096,

Contitech Part Number: FS530-14CI3/4NPTOS

Contitech Part Number: FS530-14 CI 3/4NPT OS
Comparable

Firestone Part Number: W013587092,

Firestone Part Number:W01-358-7092,

Firestone Part Number:WO13587092,

Firestone Part Number:WO1-358-7092

Compressed height
2.01"
Maximum expansion height
7.28"
The maximum diameter
15.9"
Maximum inflation pressure
120 psi
Maximum stroke
5.27"
Inlet type
Imperial

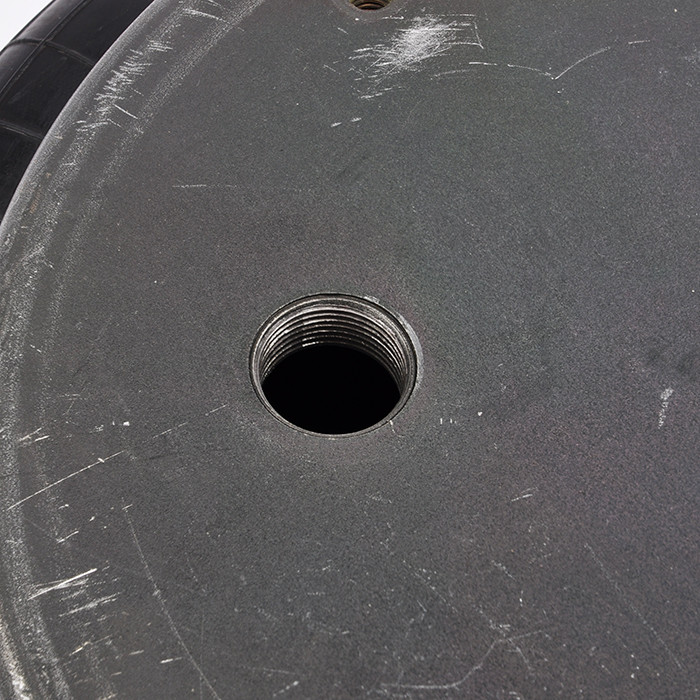

Air inlet
3/4"
series
C
lowest temperature
-76°F
Maximum temperature
158°F
Bellows type
Single convolution
weight
13.4 lb
