Product Description:

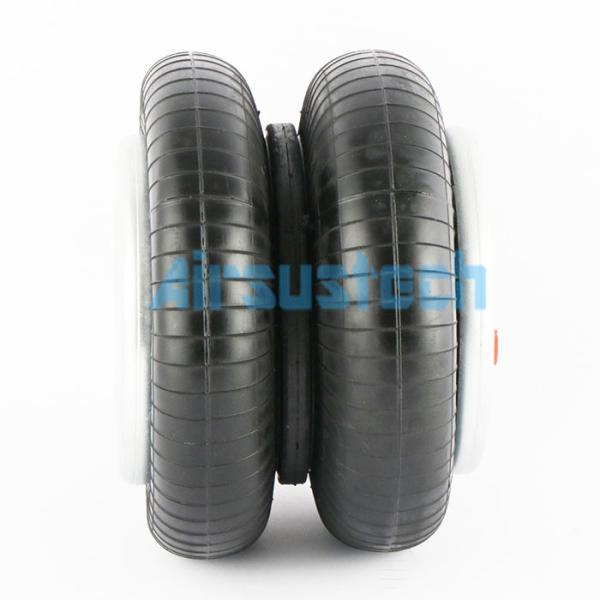

SP 2B 12R5/SP2B12R5 Phoenix Air Spring 75mm Height 2B9-287 Goodyear
Double Convoluted Airbags
This kind of air spring is produced by AIRSUSTECH, the number of
AIRSUSTECH is 2B6910-G1/4 M10 ,the quality is good and we offer one
year warranty. It is cross to Phoenix Air Spring double Convoluted
brand SP 2 B 12 R.
The material of air spring is mainly rubber or synthetic rubber,
fiber materials, valves and connections, gas. Rubber material has
good elasticity and wear resistance, and it can be formulated
according to different needs to meet specific elasticity and
durability requirements. Fiber materials are used to strengthen the
structural strength and stability of the air spring, which is
usually made of glass fiber and carbon fiber. Valves and
connections can control the flow and pressure regulation of gas.
The gas inside the air spring is often air, but sometimes other
gases, such as nitrogen, can be filled as well. The pressure of the
gas determines the elasticity and load-bearing capacity of the
spring.
Features:
Firestone Cross Part Number:
W01-M58-7894
Contitech Cross Part Number:
FD 200-19 P04 1/4 M10
Goodyear Cross Part Number:
2B9-287
Phoenix Cross Part Number:
SP 2B12R5
S09208
Airkraft Cross Part Number:
113549
SAF Cross Part Number:
4.229.1004.00
Pirelli Cross Part Number:
T20
86660
Taurus Cross Part Number:
Kf21680
Technical Parameters:
The following data was measured for an experimental spring
configuration:
Data, Static Height (mm), Pressure (bar), Force (kN), Spring Rate
(N/cm), Natural Frequency (Hz)
Measurement 1: 100 mm, 1357 bar, 2.27 kN, 977 N/cm, 3.28 Hz
Measurement 2: 100 mm, 12.0 bar, 17.3 kN, 2296 N/cm, 2.84 Hz
Measurement 3: 100 mm, 3667 bar, 2.75 kN, 5026 N/cm, 2.68 Hz
Applications:
| No. | Application |
| 1 | Roller tensioning |
| 2 | Impact absorption |
| 3 | Direct force |
| 4 | Machine isolation |
| 5 | Reel tensioning |
| 6 | Quick lock device |
| 7 | Mechanical handling stop |
| 8 | Hopper vibration and damping |
| 9 | Scissor lift |
Customization:
Phoenix Air Spring ReferenceBrand Name:
AIRSUSTECHModel Number:
2B6910-G1/4 M10Place of Origin:
Guangzhou,ChinaCertification:
ISO/TS16949:2009Minimum Order Quantity:
2Price:
USD59.9/PC-USD89.9/PCPackaging Details:
Strong Carton Box or as Customers RequirementDelivery Time:
5-8 Working DaysPayment Terms:
T/T, Western Union, Paypal or OthersSupply Ability:
1000PCS/WeekDIA. of Rubber Size:
224 MmWarranty:
One YearPlate DIA.:
160 MmDiameter max.:
251 MmScrew Distance:
89 MmPacking and Shipping:
Phoenix Air Spring Packaging and Shipping
The Phoenix Air Spring is packed in a sealed, waterproof
polyethylene bag and placed in a corrugated cardboard box. The box
is labeled with the product name, size, and other relevant
information. The box is then secured with tape and shipped to the
customer.
The box is also weighed and tracked with a bar code label and
shipping label prior to shipping. The customer is provided with a
tracking number to track the shipment and ensure it arrives safely
and on time.
