Product Description:

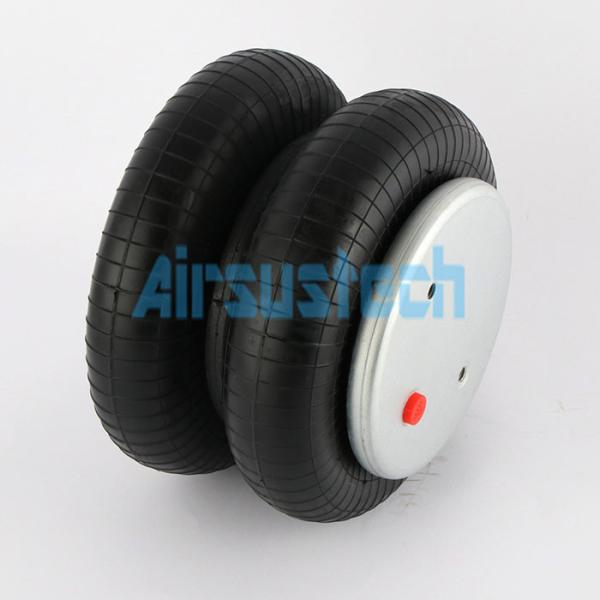

Phoenix Air Spring SP2B12R5 FD 200-19 Contitech Suspension Air
Shock Airkraft 113549
This kind of air spring is
produced by AIRSUSTECH, the number of AIRSUSTECH is
2B6910-G1/4 M10 ,the quality is good and we offer one year warranty. it is cross
to Phoenix Air Spring double Convoluted brand SP 2 B 12 R.
The air spring is mainly composed of rubber or synthetic rubber,
fiber materials, valves and connections, and gas.
Rubber or synthetic rubber: Rubber is the basic material of the air spring, which has good
elasticity and wear resistance. Rubber can be formulated according
to different needs to achieve specific elasticity and durability
requirements.
Fiber Materials: Fiber materials are often used to enhance the structural strength
and stability of air springs. Common fiber materials include glass
fiber and carbon fiber.
Valves and Connections: Valves and connections are used to control the flow and pressure
regulation of gas inside the air spring. They are usually made of
metal or plastic.
Gas: The gas filled in an air spring is usually air, although other
gases, such as nitrogen, may sometimes be filled. The pressure of
the filling gas determines the elasticity and load-bearing capacity
of the air spring.
Features:
Cross Part Number
Firestone: W01-M58-7894
Contitech: FD 200-19 P04 1/4 M10
Goodyear:2B9-287
Phoenix: SP 2B12R5
S09208
Airkraft: 113549
SAF: 4.229.1004.00
Pirelli: T20
86660
Taurus: Kf216
Technical Parameters:
The following table summarizes data collected for three separate
measurements regarding static height, pressure, force, spring rate,
and natural frequency:
| Data | Static Height (mm) | Pressure (bar) | Force (kN) | Spring Rate (N/cm) | Natural Frequency (Hz) |
|---|
| Measurement 1 | 100 | 1357 | 2.27 | 977 | 3.28 |
| Measurement 2 | 100 | 12.0 | 17.3 | 2296 | 2.84 |
| Measurement 3 | 100 | 3667 | 2.75 | 5026 | 2.68 |
Composition of air spring:
Gas-Filled Hole / Air Inlet: By filling air porosity for inflatable air spring
Bolt / Mounting Stud: Bolt is fixed as the installation of air spring in car or
equipment
Upper Retainer: Upper Retainer to protect the whole air spring
Rubber Bumper (Optional): Prevent the air spring up and down on the plate and base plate
collision
Flexible Bellows: The main part can lock the air and flexible activities up and down
Piston/ The base: Base is also carrying fluctuation pressure, sealed air and make
skins can according to the fluctuation of the trajectory
Mounting Stud: fixed as the installation of air spring in car or equipment
Customization:
Phoenix Air Spring
Brand Name: AIRSUSTECH
Model Number: 2B6910-G1/4 M10
Place of Origin: Guangzhou,China
Certification: ISO/TS16949:2009
Minimum Order Quantity: 2
Price: USD59.9/PC-USD89.9/PC
Packaging Details: Strong Carton Box or as Customers Requirement
Delivery Time: 5-8 Working Days
Payment Terms: T/T, Western Union, Paypal or Others
Supply Ability: 1000PCS/Week
Maintenance: Low
Loading capacity max.(7 bar): 15.91 KN
Shape: Double Convolution With Metal Parts
Required Installment space @: 270 Mm
DIA. of Rubber Size: 224 Mm
Phoenix Vibration Controls, Machine Air Cushion, Phoenix Rubber
Spring
Packing and Shipping:
Packaging and Shipping
Phoenix Air Spring is packaged and shipped with the utmost care and
safety in mind. Each package is inspected for quality and
reliability before being sent to its destination. All Phoenix Air
Springs are individually packaged in corrugated cardboard boxes.
The boxes are then placed in padded envelopes, sealed, and labelled
with a tracking number.
For international orders, Phoenix Air Spring is shipped by one of
the world's leading couriers. All packages are shipped with a full
insurance coverage to ensure that customers receive their order in
perfect condition. All orders are tracked and customers are
provided with a tracking number to monitor their package's
progress.
