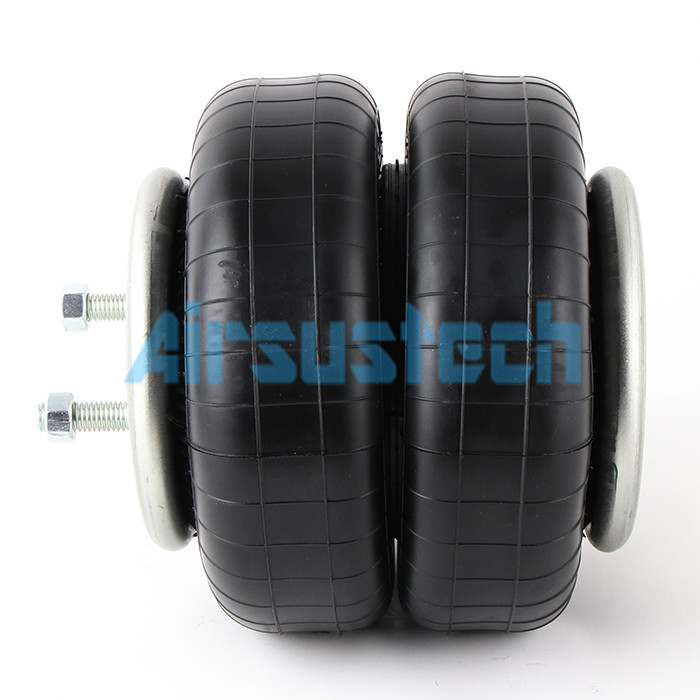

Easy Installation Suspension Air Spring White Zinc Iron Cover Plate
W01-358-6943 Firestone Rubber Air Balloon
Product Description:
Suspension Air Springs are air suspension components designed to
provide an adjustable air lift for a variety of vehicles. The air
springs are made of black rubber and white zinc iron cover plate,
making them incredibly durable and universal for all types of
vehicles. Air Lift Air Springs are an affordable and convenient way
to enhance the performance of your vehicle, allowing you to adjust
the ride height and improve stability. The air suspension
components are packaged in a strong carton for secure transport and
long-term storage.
With Air Ride Suspension, your vehicle can easily be adjusted to
the ideal ride height, allowing for better handling and overall
performance. The air springs are designed to be highly durable and
long-lasting, so they are a great investment for those who want to
optimize their vehicle's performance. The air springs are also
universal, meaning they can be used on any type of vehicle, making
them a great choice for anyone looking for a cost-effective way to
improve their vehicle's suspension.
Suspension Air Springs are the perfect solution for anyone looking
to improve the performance of their vehicle. With their strong
carton packaging, black rubber and white zinc iron cover plate, and
high durability, these air springs are a great choice for anyone
looking for a reliable and cost-effective way to upgrade their
vehicle's suspension.
Features:
- Product Name: Suspension Air Springs
- Load Capacity: According To The Sizes
- Size: Standard Specifications And Customization
- Packaging: Strong Carton Packaging
- Warranty: One Year
- Air Shocks: High Quality Air Shocks
- Suspension Air Bags: Provide Comfortable Ride Quality
- Load Capacity: Load Capacity Up To 2000kg
Technical Parameters:
| Parameter | Description |
|---|
| Pressure Range | 0.2-0.8 MPA |
| Top Cover Diameter | 160mm |
| Bottom Cover Diameter | 160mm |
| Air Hole | 1/4NPTF |
| Top Plate Screw (Nut) Teeth | 2X1/2-13UNC |
| Screw Center Distance | 89mm |
| The Air Hole Distance Between the Nuts | 44.5mm |
| Maximum Diameter of the Rubber Bellows | 262mm |
| Working Stroke | Maximum 325 mm to Minimum 79 mm |
| Compressed Height | 246mm |
OEM Number:
Firestone Number: W01-358-6943 / W013586943 / W01 358 6943
Firestone Number: WO1-358-6943 / WO13586943 / WO1 358 6943
Contitech Number: FD200-25 426 / FD 200-25 426 / FD200-25426
Contitech Number: 161332
Goodyear Number: 2B9-250 / 2B 9-250 / 2B9 250
Goodyear Number: 578923206 / 578 92 3 206 / 578-92-3-206
Triangle Number: 6332 / 4426
Watson&Chalin Number: AS-0041 / AS 0041
Neway/SAF Number: 90557237
Ridewell Number: 1003586943C
Tuthill Number: 6352
