    1S4-007 Goodyear Air Spring Mac-k truck Flexible Member 579-08-1-032 For Link 1101-0020

    Ask Lasest Price
    Brand Name : Goodyear
    Model Number : 1S4-007
    Certification : ISO/TS16949, ISO9001
    Payment Terms : T/T, Western Union,Paypal or Others
    Supply Ability : 1000pcs/week
    Delivery Time : 3-8 Working Days
    • Product Details
    • Company Profile

    1S4-007 Goodyear Air Spring Mac-k truck Flexible Member 579-08-1-032 For Link 1101-0020

    1S4-007 Goodyear Air Spring Mac-k truck FLEXIBLE MEMBER 579-08-1-032 For LINK 1101-0020


    OEM Cross:


    Goodyear Part Number : 1S4-007

    Goodyear Part Number : 1S4007

    Goodyear Part Number : 1S4 007

    Goodyear FLEXIBLE MEMBER :579-08-1-032

    Goodyear FLEXIBLE MEMBER :579081032

    Goodyear FLEXIBLE MEMBER :579 08 1 032

    Firestone Part Number:W02-358-7031,

    Firestone Part Number:W023587031,

    Firestone Part Number:W02 358 7031

    Firestone Piston Number:NBD-10549

    Firestone Piston Number:NBD10549

    Firestone Piston Number:NBD 10549

    Link manufacturing: 1101-0020
    Mike: 227QS33
    Flexible/Grumman: 97-9999-01867
    Euclid / Meritor (Meritor) aftermarket: E-FS7031
    PAI industry: FAS-4906
    Euclid / Meritor aftermarket: FS7031


    Top Plate Hole/Stud Qty: 1
    Top Plate Dia: 2.65 inch
    Top Plate C to C Diameter: N/A
    Bottom Plate Hole Stud Qyt: 1
    Bottom Plate Dia: 2.87 inch
    Min Height: 2.2 inch
    Max Height: 7.1 inch


    BrandGoodyear
    Item Weight1.5 pounds / 0.675 KG
    Package Dimensions20.2 x 12.3 x 7.3 inches / 51 x 31 x 18.5 cm
    Item model number1S4-007
    ExteriorSmooth
    Manufacturer Part Number1S4-007
    Cross OEM NO.
    Firestone:W01-358-7001,W01 358 7001,W013587001
    Firestone:W01-358-7002,W01 358 7002,W013587002
    Firestone:W01-358-7031,W01 358 7031,W013587031
    Link Manufacturing:1101-0020
    :227QS33
    Flexible/Grumman:97-9999-01867
    Euclid/Meritor Aftermarket:E-FS7031
    PAI Industries:FAS-4906
    Euclid/Meritor Aftermarket:FS7031
    TRUCK227QS33
    LINK CAB & SEAT SPRINGS1101-0020
    TRUCK227QS33


    Product description

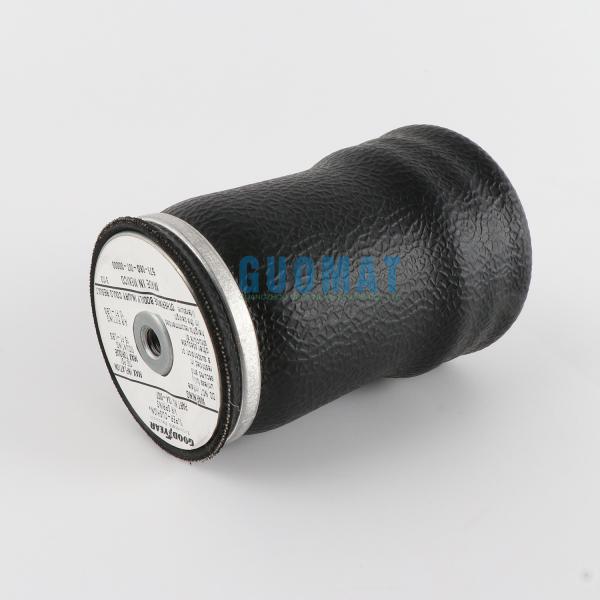

    Goodyear sleeve air springs will use flexible parts without the need for internally molded beads. The flexible member is attached to the end of the retainer by clamping the material between the end and the external crimp ring, and then adjusting the outer crimp ring to an appropriate diameter. Goodyear sleeve airbag springs have many applications. The most common uses are passenger ride springs and trucks, isolators and springs for truck cab and seat springs, as well as many common industrial applications. 1S4-007 sets of sleeve air spring durability and service life of the length.


    Specifications
    Goodyear # 1S4-007 Sleeve Style Air Spring
    Single Convolute
    4" Nominal Outside Working Diameter
    7.1" Extended Height
    Top Measurements: 2.65" Diameter, 1 Tapped Hole on Top Retainers 3/8-16, on Pistons - 1/2-13
    Bottom Measurements: 2.875" Diameter, 1 Single Centered Stud, 0.750-16 UNF-2A Outside, 0125-27 NPTF Inside
    Piston ASC-08-7-139
    ASB-08-5-007


    1S4-007 Goodyear Air Spring Mac-k truck Flexible Member 579-08-1-032 For Link 1101-00201S4-007 Goodyear Air Spring Mac-k truck Flexible Member 579-08-1-032 For Link 1101-0020


    Goodyear NO.QTYOur stockGoodyear NO.QTYOur stock
    1S6-055501R13-1186260
    1R12-552501S5-0386
    1R12-642451R12-4196
    1S5-186371R13-1194
    1S5-164261R13-1554
    1S4-00720561R12-0923
    1S5-152181R14-1173
    1S5-176171R13-03934
    1R11-268151R14-1713
    1S5-175131R12-4843
    1R14-159101R12-4322
    1R12-55591S5-1572
    1R12-53481R13-1592
    1S3-01371R12-6032
    1R14-21571R14-1602
    1R9-00911R12-4032
    1S5-00511R14-1601
    1R12-109311R12-4031
