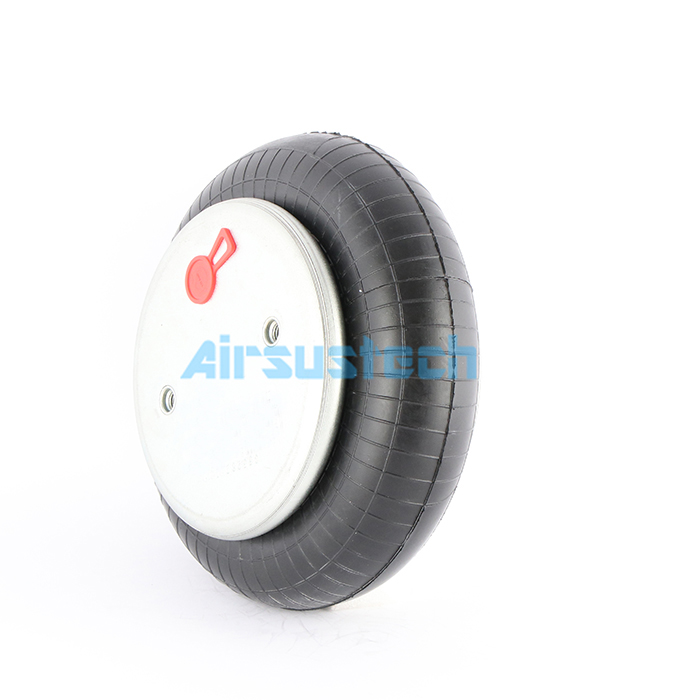

Goodyear Super Cusion 1B9-200 1B9-202 Firestone Air Bag W01-358-7460 Contitech FS200-10CI1/4NPTOS Industrial Air Springs

Cross Reference

Specifications and Detailed Technical Parameters

Top/ Bottom plate blind nuts: 2pcs x 3/8-16UNC

The center distance between the two blind nuts: 89mm

Top/ Bottom cover plate diameter: 160mm

Natural ubber bellow outer diameter: 220mm

Height: 110mm

Air fitting: 1/4NPTF, Offset, 44.5mm

Rubber bumper: Without

Girdle ring: No

HS Code: 8708809000

Sample: Available

Type: Industrial air springs

Applications: Washing machines or other equipments

Warranty: One year

Applications

Air springs are used in a wide range of applications. They are commonly used as actuators in amusement park rides, packaging equipment, clutch systems, conveyor belts, and scissor lifts, and they are also used as vibration isolators in centrifuges, commercial washing machines, measuring and weighing machinery, and textile looms.

Air spring maintenance way

The maintenance method for an industrial air springs typically involves inspecting the spring for any signs of damage or wear, such as cracks, leaks, or punctures. It is also important to regularly check the air pressure and adjust it as needed, using a pressure gauge and following the manufacturer's recommended guidelines. Cleaning the spring with a mild soap and water solution can also help to prevent dirt and debris from accumulating, which can cause damage over time. Additionally, it is important to store the air spring properly when not in use, in a dry and cool location away from direct sunlight and extreme temperatures. For specific instructions on maintaining your particular air spring model, it is best to refer to the manufacturer's maintenance manual or guidelines.

Industrial air springs characteristic

Air springs have a non-linear characteristic, meaning their characteristic line can be designed into an ideal curve as needed . The stiffness of the air spring also allows for the switch from comfortable to dynamic drive characteristics. Additionally, air springs can be designed with multi-axial response and damping characteristics to improve durability and measure stiffness.

Air spring components

1. Blind Nut (Threaded Hole)
A permanent part of the bead plate assembly providing an alternative mounting system to the Stud.
2. Air Fitting Hole
A tapped hole providing air entrance for the part.
3. Bead Plate (Top Plate)
Permanently crimped onto the bellows, diaphragm during manufacture.
4. Bellows
The heart of the airspring. Includes at least four ply, or layers of material - an inner layer, two ply of cord reinforced fabric and an outer layer.
5. Bumper (Bump Stop)
A solid moulded rubber fail safe device used on many suspension applications. Prevents excessive damage to the vehicle and suspension in the case of sudden air pressure loss.
6. Girdle Hoop (Centre Ring)
A ring between the convolutions of the convoluted type air spring, helps provide stability in the part.
