Goodyear 2B6-835 FD70-13CIG1/4CA Continental Firestone Air Bag W01M586105 Industrial Air Springs Double Convoluted

Cross Reference

Specifications and Technical Parameters

Air fittings: G1/4, Center

Top/Bottom plate blind nuts: 2pcs x M8x 1.25

The center distance between the two blind nuts:44.5mm

Top/ Bottom cover plate diameter: 105mm

Rubber bellow diameter: 146mm

Height: 162mm

Rubber bumper: Without

Girdle hoop: 1 pieces

Type: Industrial air springs
Applications: Industrial machines or others

Condition: 100% New

Packing: Strong cartons

Net weight: 1.6kg

Gross weight: 19.7kg

Packing sizes: 29*29*42cm

Packing quantity: 12pieces

Air spring applications

An air spring can be defined as an air reservoir made of rubber and fabric, shaped like a bellows, that can be used to support a load, isolate vibration and shock, or act as a cylinder by expanding itself.

Air springs have a wide range of applications across various industries. They are commonly used in the automotive industry, particularly in heavy-duty vehicles such as trucks and buses, to provide suspension and improve ride comfort. Air springs are also used in the railway industry, for both passenger and freight cars, to provide suspension and reduce vibrations. Other applications include industrial machinery, such as stamping presses and machine tools, and in the construction industry for heavy equipment and machinery. Additionally, air springs can be used in applications where high-speed vibration isolation is required, such as in aerospace and defense industries.

Crimped air spring components

This type of air spring is also known as a bellows air spring because it has one, two, or even three bellows in the rubber body. This air spring can be used in automotive or industrial fields as a suspension system or as a rubber actuator. The more turns an air spring has, the more stroke/travel it can have. However, two or three coiled air springs require more space and the space available in the application must be checked. Crimp air springs are more commonly used in industrial applications than the sleeve or rolling bellows springs used in the automotive and rail industries.

Air inlet dimension

Blind nuts

Top Bead plate

Girdle ring

Bottom bead plate

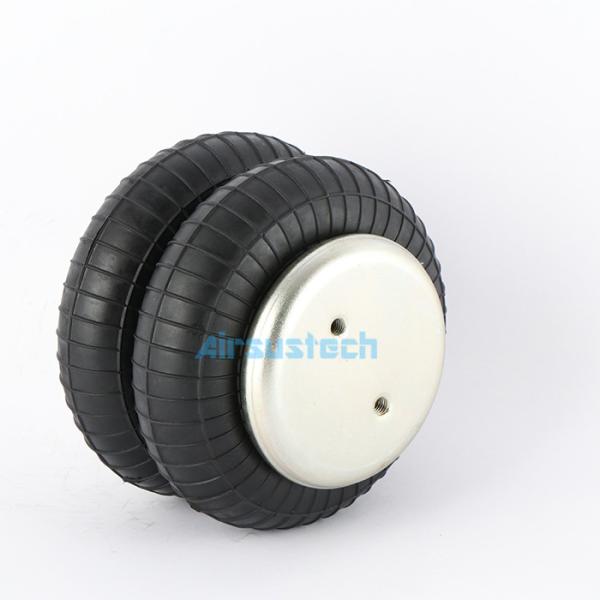

Airbag picture

Guangzhou Guomat Air Spring Co., Ltd. is located in Guangzhou, about 15min’s drive from Baiyun Airport. Our mainly products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles’ seat, luxurious car and industrial machine field.

AIRSUSTECH is another brand of Guangzhou Guomat Air Spring Co., Ltd.

AIRSUSTECH is focus on industrial air spring.

GUOMAT Factory gate：

Established in 2008, Our company covers 20,000㎡ and is located in Taihe Town Baiyun District. With the rapid development of our company, we are equipped with modernized workshop and advanced rubber air springs equipments now. We are the first company who started air spring business and has become one of the largest air spring manufacturing bases in China.

In 2017, we launched a collaboration with High Tech of US customers to customize the products of our customers and the logo of our customers. Every year, there are about 10,000 orders. In continuous cooperation, the products meet the international inspection standard ISO/TS16949:2009, and the customers are very satisfied with the products produced. This is our high recognition from American customers and also gives us Great motivation.

In 2018, we started cooperation with German GmbH, mainly industrial air springs, which are suitable for industrial equipment. We have successfully developed and produced the natural air-seal of the skin to reach the 700mm flanged air spring, the customer's annual demand is a few hundred.

With the development of business and demand for customers, our company introduced business with TomLog Corporation in 2010, our strategic cooperative partner in Taiwan. Then we developed air compressor program and air spring related business, in 2015, America Goodyear Corporation met with the transfer of shares in the North American plant, our company was granted with sale agent for air springs in China, providing more choice for our customers. Our company adopts the most advanced domestic air spring processing equipment and international production technology. Combined with unique production process, our company strictly execute international standards for production and spare no efforts to create the world-class products. We will endeavor to make air spring widely used at home and abroad, and let more and more customers to enjoy the best damping effect.
