KY9502 SP-1B12 Parker Single Convoluted Industrial Air Springs Rubber G3/4 Air Inlet For Press Machines

Cross Reference

Parker industrial air springs KY9502 / KY 9502

SP-1B12 / SP 1B12 / SP1B12

Specifications and Detailed Technical Parameters

Applications

Air shock absorber is a special shock absorber, it is different from the general spring shock absorber, mainly with rubber compressed air to complete, this kind of shock absorber has a common advantage, in many mechanical equipment used in the shock absorber must be used in order to really play a shock effect. Like on a press machines
First of all, the high matt air elastic yellow can reduce the transmission noise of the structure, because it does not produce the ordinary spiral spring elastic yellow vibration, so it does not produce noise itself. The air bomb can provide a shock absorption and damping effect unmatched by any other shock absorber. By adding an external gas storage device, a lower natural frequency can be provided, and the direct frequency of the system does not vary much with load size. Thus, the same air spring can be used at every mounting point on equipment with uneven loads.
Industrial air spring height control is very accurate: air spring is through the internal atmospheric pressure to adjust the height of travel, industrial air spring does not produce static friction with other components, in the case of bearing capacity changes can be adjusted by the system pressure to ensure the height of operation.
Effective prevention of coshock

Other model we could offer

Ømm (inches) Port size Max force (N) at 1 bar (0 stroke) Max strokemm Type Order code
Single Convoluted
150 G1/4 1250 55 SP-1B04 KY9500
165 G1/4 1350 45 SP-1B05 KY8401
205 G1/4 1550 90 SP-1B07 KY9501
250 G3/4 2800 100 SP-1B12 KY9502
350 G3/4 5050 110 SP-1B22 KY9590
420 G3/4 7600 110 SP-1B34 KY8010

Double convoluted

165 G1/4 1250 110 SP-2B04 KY9612
165 G1/4 1350 80 SP-2B05 KY8011
170 G1/4 1750 105 SP-2B05A KY8012
215 G1/4 2200 125 SP-2B07 KY9589
250 G3/4 3700 150 SP-2B12 KY9611
320 G3/4 5000 170 SP-2B22 KY9591
390 G3/4 8000 170 SP-2B34 KY8007

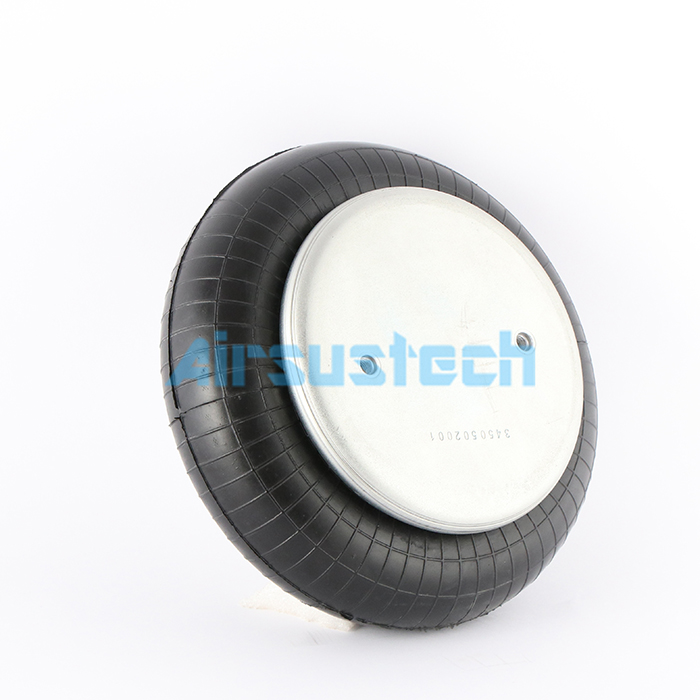

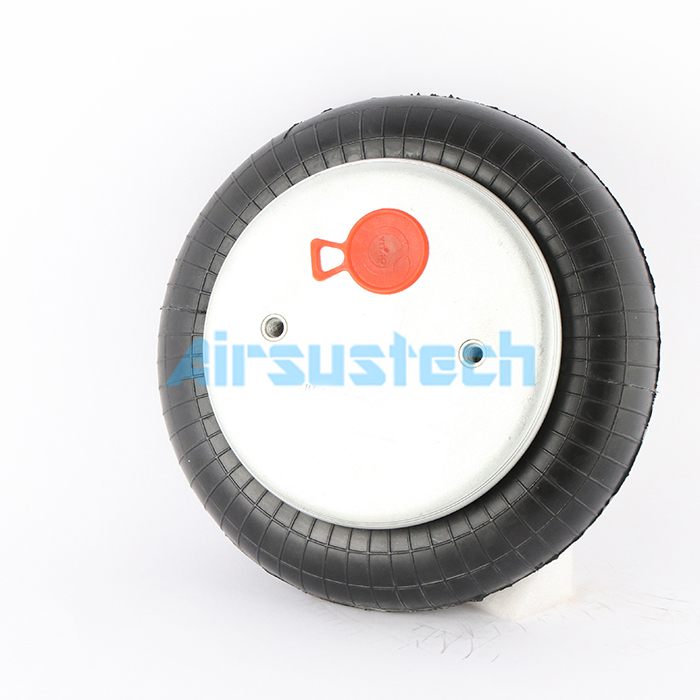

The industrial air springs related picture

Guangzhou Guomat Air Spring Co., Ltd. is located in Guangzhou, about 15min’s drive from Baiyun Airport. Our mainly products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles’ seat, luxurious car and industrial machine field.

AIRSUSTECH is another brand of Guangzhou Guomat Air Spring Co., Ltd.

AIRSUSTECH is focus on industrial air spring.

GUOMAT Factory gate：

Established in 2008, Our company covers 20,000㎡ and is located in Taihe Town Baiyun District. With the rapid development of our company, we are equipped with modernized workshop and advanced rubber air springs equipments now. We are the first company who started air spring business and has become one of the largest air spring manufacturing bases in China.

In 2017, we launched a collaboration with High Tech of US customers to customize the products of our customers and the logo of our customers. Every year, there are about 10,000 orders. In continuous cooperation, the products meet the international inspection standard ISO/TS16949:2009, and the customers are very satisfied with the products produced. This is our high recognition from American customers and also gives us Great motivation.

In 2018, we started cooperation with German GmbH, mainly industrial air springs, which are suitable for industrial equipment. We have successfully developed and produced the natural air-seal of the skin to reach the 700mm flanged air spring, the customer's annual demand is a few hundred.

With the development of business and demand for customers, our company introduced business with TomLog Corporation in 2010, our strategic cooperative partner in Taiwan. Then we developed air compressor program and air spring related business, in 2015, America Goodyear Corporation met with the transfer of shares in the North American plant, our company was granted with sale agent for air springs in China, providing more choice for our customers. Our company adopts the most advanced domestic air spring processing equipment and international production technology. Combined with unique production process, our company strictly execute international standards for production and spare no efforts to create the world-class products. We will endeavor to make air spring widely used at home and abroad, and let more and more customers to enjoy the best damping effect.
