    3 Convoluted Industrial Air Springs Goodyear 3B14-452 Firestone W01-358-7850 WO13587850 Continental FT 530-35 441

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 3B7850
    Certification : ISO/TS16949:2009
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    3 Convoluted Industrial Air Springs Goodyear 3B14-452 Firestone W01-358-7850 WO13587850 Continental FT 530-35 441

    Goodyear 3B14-452 Firestone W01-358-7850 WO13587850 Continental FT 530-35 441 3 Convoluted Industrial Air Springs


    Cross Reference

    Firestone W01-358-7850 / W01 358 7850 / W013587850
    Firestone WO1-358-7850 / WO1 358 7850 / WO13587850

    Contitech FT530-35 441 / FT 530-35 441 / FT 530 35 441 / FT530-35441/ FT53035441/ 64580

    Goodyear 3B14-452/ 3B14 452 / 3B14452

    Goodyear bellow number 566338335


    Goodyear 3B14-370 / 3B14 370 / 3B14370


    HISTEER 10301


    SUSPENSIONSNC 200177


    WATSON8 CHALIN AS-0086 / AS 0086 / AS0086


    Link 1103-0001 / 1103 0001 / 11030001


    Spring Valley AS-4441 / AS 4441 / AS4441


    Triangle Part Number 4441
    Triangle Bellows Number 6335


    TRP. AS78500


    AUTOMANN. SP3B32RA-7850 / SP3B32RA 7850 / SP3B32RA7850


    AIRKRAFT 115066

    AIRKRAFT 3B-357 / 3B 357 / 3B357


    Specifications and Technical Parameters


    Max. OD

    15.9 / 404 mm

    Min height

    4.6 / 117mm

    Max height

    20.1 / 518 mm

    Top/Bottom plate diameter

    11.31 / 287mm

    Top plate screws qty1pc combo studs, one studs/bolts
    The center distance on top plate6.20 / 157.5mm

    Bottom plate blind nuts qty

    2pcs

    Bottom plate screw center distance6.20 / 157.5mm
    Rubber bumperWith
    Girdle hoop2 pieces

    HS Code

    8708809000

    Sample

    Available

    Applications

    Industrial Mahines Or Others

    Material

    Rubber and Steel

    Type

    Triple Bellow Industrial Air Springs


    About us


    Guangzhou GUOMAT Air Spring Co., Ltd. is a Chinese company that specializes in the production and development of air springs. It is over 15 years. GUOMAT air springs are widely used in the fields of commercial vehicles, bus and industrial machinery. Our products include gas springs, industrial air springs, bus air springs. bus air springs, cabin air springs, truck air springs, passenger car air suspension, air suspension compressor. We have a strong research and development team, as well as a complete quality management system, ensuring that their products meet international standards. The company also provides customization services to meet the unique needs of their customers.
    The air springs cabe be used in industries, including agriculture, construction, mining, transportation, and more. Air springs are designed to provide a cushioning effect for heavy loads, reducing vibration and improving ride comfort.

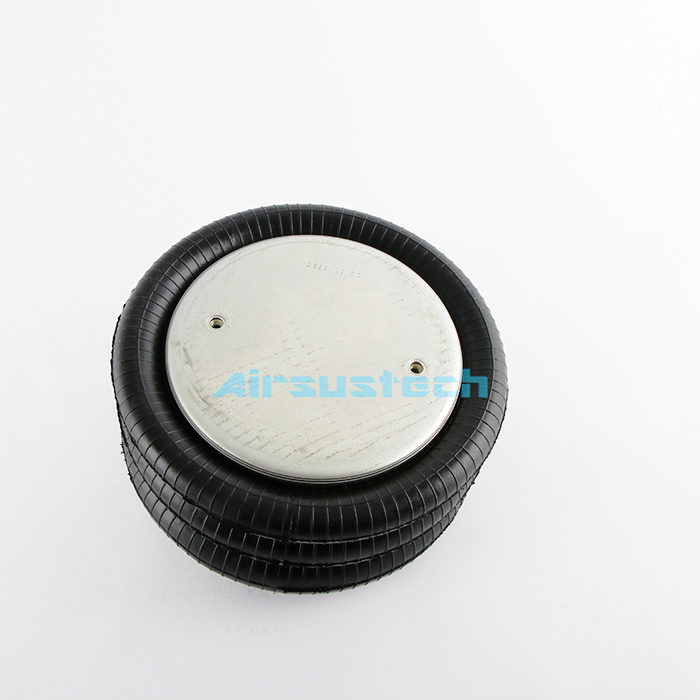

    Industrial air springs photos
