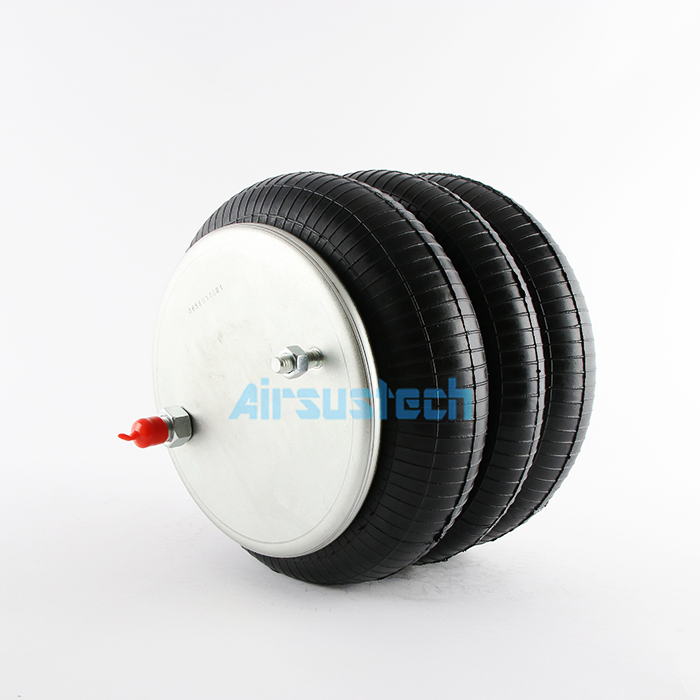

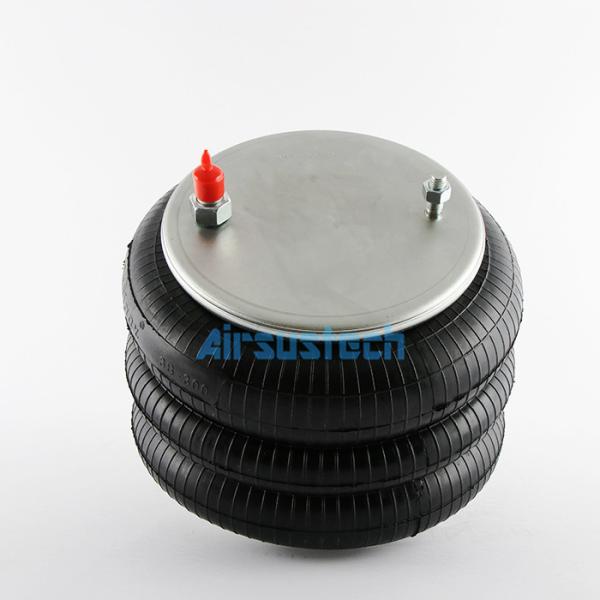

Industrial Air Springs Firestone W01-358-7862 Contitech FT 530-35 534 Triple Air Bellows For Hendrickson 1795

Cross Reference

Firestone W01-358-7862 / W01 358 7862 / W013587862
Firestone WO1-358-7862 / WO1 358 7862 / WO13587862

Contitech FT530-35 534 / FT 530-35 534 / FT 530 35 534 / FT530-35534/ FT53035534/64587

Goodyear 3B14-464 / 3B14 464 / 3B14464

Hendrickson 1795


Specifications and Technical Parameters

Components

1. Studs
A permanent part of a headplate assembly for attaching an air spring to a suspension.
2. Combo studs
Combination mounting studs and air connectors.
3. Nuts
Provide a permanent part of the headboard assembly for the stud in place of the mounting system.
4. Air connector hole
Threaded holes provide entry points for parts.
5. Beads
Permanently crimp on factory bellows, allowing partial leak testing to be completed prior to shipment
6. Bellows
The center of the air spring. Include at least four or four layers of material -- the inner layer. Two layers of rope reinforced fabric, plus an outer layer.
7. Bumper (Optional)
A solid molded rubber fail-safe device used in many suspension applications. Prevent excessive damage to the vehicle and suspension in the event of a sudden loss of air pressure.
8. Belt hoops
A ring between two helices of a helical air spring


Air Springs Advantage

Air spring frequency is relatively low, reliable stability, used in some industrial equipment, can effectively reduce vibration.

And the air spring, whether in the horizontal or vertical direction, can basically maintain close contact. Because the frequency is relatively low, the use of the air spring is longer, the maintenance and maintenance space is higher, do not need to change often.

Gas spring is a sealed container filled with compressed gas, using the compressibility of gas to achieve its spring function. The stiffness of the spring is variable, because the load acting on the spring increases, the quantitative gas in the container is compressed, the pressure rises, the stiffness of the spring increases; On the contrary, when the load is reduced, the air pressure in the spring decreases, and the stiffness decreases, so it has ideal variable stiffness characteristics.

Industrial air springs photos

Guangzhou Guomat Air Spring Co., Ltd. is located in Guangzhou, about 15min’s drive from Baiyun Airport. Our mainly products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles’ seat, luxurious car and industrial machine field.

AIRSUSTECH is another brand of Guangzhou Guomat Air Spring Co., Ltd.

AIRSUSTECH is focus on industrial air spring.

GUOMAT Factory gate：

Established in 2008, Our company covers 20,000㎡ and is located in Taihe Town Baiyun District. With the rapid development of our company, we are equipped with modernized workshop and advanced rubber air springs equipments now. We are the first company who started air spring business and has become one of the largest air spring manufacturing bases in China.

In 2017, we launched a collaboration with High Tech of US customers to customize the products of our customers and the logo of our customers. Every year, there are about 10,000 orders. In continuous cooperation, the products meet the international inspection standard ISO/TS16949:2009, and the customers are very satisfied with the products produced. This is our high recognition from American customers and also gives us Great motivation.

In 2018, we started cooperation with German GmbH, mainly industrial air springs, which are suitable for industrial equipment. We have successfully developed and produced the natural air-seal of the skin to reach the 700mm flanged air spring, the customer's annual demand is a few hundred.

With the development of business and demand for customers, our company introduced business with TomLog Corporation in 2010, our strategic cooperative partner in Taiwan. Then we developed air compressor program and air spring related business, in 2015, America Goodyear Corporation met with the transfer of shares in the North American plant, our company was granted with sale agent for air springs in China, providing more choice for our customers. Our company adopts the most advanced domestic air spring processing equipment and international production technology. Combined with unique production process, our company strictly execute international standards for production and spare no efforts to create the world-class products. We will endeavor to make air spring widely used at home and abroad, and let more and more customers to enjoy the best damping effect.
