    TS16949 Industrial Air Springs Firestone W01-358-6392 20F-2 MERITOR 2258-G-1489

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 2B6392
    Certification : ISO/TS16949:2009
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    TS16949 Industrial Air Springs Firestone W01-358-6392 20F-2 MERITOR 2258-G-1489

    Firestone W01-358-6392 20F-2 MERITOR 2258-G-1489 Double Convoluted Industrial Air Springs

    Cross Reference

    Firestone style 20F-2, 20-2
    Firestone W01-358-6392 / W01 358 6392 / W013586392
    Firestone WO1-358-6392 / WO1 358 6392 / WO13586392

    MERITOR 2258-G-1489 / 2258 G 1489 / 2258G1489

    AUTOMANN 2B12RA-6392 / 2B12RA 6392 / 2B12RA6392

    CONTITECH FD 200-25 1008 / FD 200-251008 / FD200-25 1008 / FD200-251008


    Specifications and Technical Parameters

    Top plate studs/bolts qty: 2pcs
    Bottom plate studs/bolts qty: 2pcs
    Screw center distance: 3.38''
    Top cover plate diameter: 6.31''
    Bottom cover plate diameter: 6.31''
    Min. height: 3.1
    Max. height: 12.8
    Max. OD: 10.0
    Rubber bumper: Without
    Girdle hoop: 1 piece
    Two ply Bellows
    Double Convoluted/ Convolution industrial air springs
    Rubber and Steel Material
    Double Convolution
    2-Ply Bellows



    Other Fire-stone 20F-2 Style air spring replacement we could offer

    Model Number

    Cross Reference

    2B6817

    Firestone W01-358-6817 / 20F-2
    RIDEWELL 1003586817C

    2B6927

    Firestone W01-358-6927 / 20F-2
    Goodyear 2B9-218

    REYCO 12906-01
    Contitech FD 200-25 453
    161336
    Triangle 6332/4453
    Leland Sc2072
    SAF Holland 57006927
    Tuthill Technology 1290601

    2B6943

    Contitech FD200-25 426
    Firestone W01-358-6943 / 20F-2
    Goodyear 2B9-250 / 578923206

    WATSON& CHALIN AS-0041
    VAN RADEN
    NEWAY 90557237
    V-Steer II
    ---
    (Lift Bag)

    Triangle 6332/4426
    Ridewell 1003586943C
    Tuthill 6352

    2B6944

    Contitech FD200-25 454
    Firestone W01-358-6944 / 20F-2
    Goodyear 2B9-252
    HISTEER 10307
    SUSPENSIONS
    INC.

    2B6945

    Contitech FD200-25 427
    Firestone W01-358-6945 / 20F-2
    Goodyear 2B9-253
    RIDEWELL 1003586945C

    2B6946

    Contitech FD200-25 463
    Firestone W01-358-6946 / 20F-2
    Goodyear 20F-2
    RIDEWELL 1003586946C

    2B6947

    Contitech FD200-25 428
    Firestone W01-358-6947 / 20F-2
    Goodyear 2B9-255
    HENDRICKSON
    TRAILER S8701
    RIDEWELL 1003586947C

    2B6948

    Contitech FD200-25 429
    Firestone W01-358-6948 / 20F-2
    Goodyear 2B9-251
    RIDEWELL 1003586948C
    SILENT DRIVE

    2B6960

    Contitech FD200-25 507
    Firestone W01-358-6960 / 20F-2

    RIDEWELL 1003586945C

    2B6962

    Contitech FD200-25 511
    Firestone W01-358-6962 / 20F-2

    HENDRICKSON
    TRAILER S21323

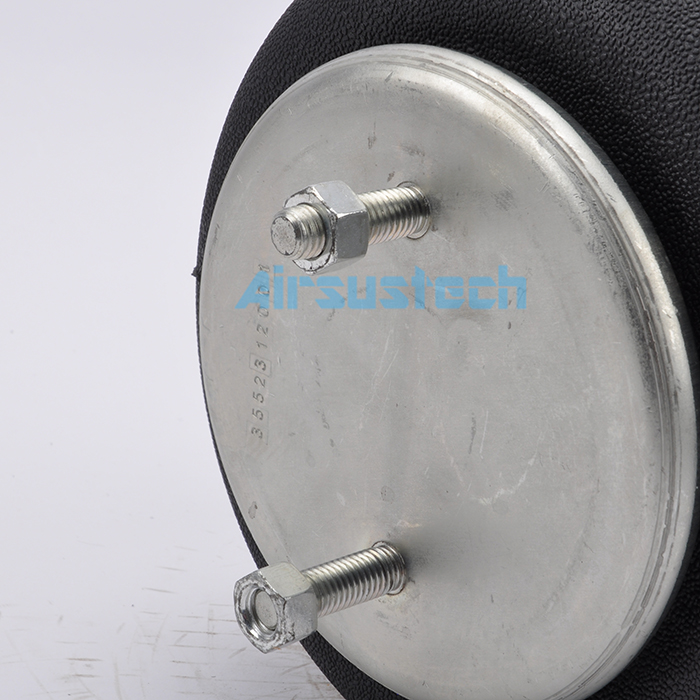

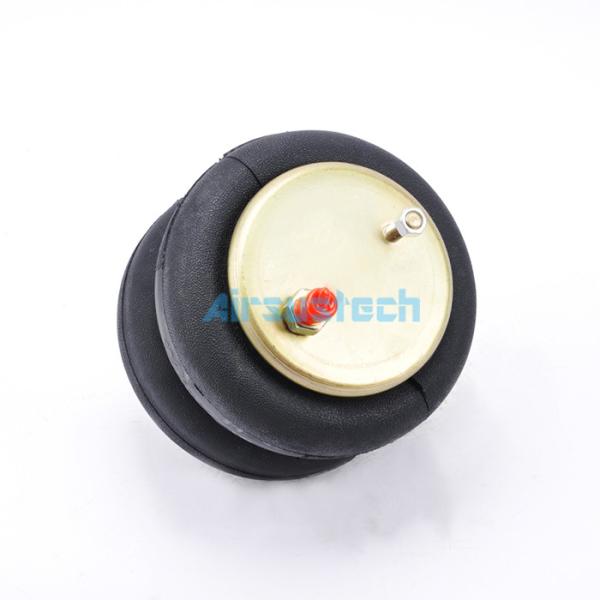

    The picture of AIRSUSTECH suspension air springs/ industrial air springs
