Brand Name : | AIRSUSTECH |
Model Number : | 2B7555 |
Certification : | ISO/TS16949:2009 |
Payment Terms : | T/T, Western Union, Paypal or Others |
Supply Ability : | 1000PCS/Week |
Delivery Time : | 5-8 Working Days |
Firestone WO13587555 Goodyear 2B12-440 AIRKRAFT 2B-320 113341
Industrial Air Springs For Filling machines
Cross Reference
AIRKRAFT 2B-320 / 2B 320 / 2B320
AIRKRAFT 113341
AIRKRAFT Order number 11120066
GOODYEAR 2B12-440 / 2B12 440 / 2B12440
GOODYEAR 578 9 2 3315 / 578923315
FIRESTONE W01-358-7555
FIRESTONE W01 358 7555
FIRESTONE W013587555
FIRESTONE WO1-358-7555
FIRESTONE WO1 358 7555
FIRESTONE WO13587555
CONTITECH FD331-26 480
CONTITECH FD 331-26 480
CONTITECH FD331-26480
BINKLEY XB-SPN-053-37
BINKLEY XB SPN 053 37
BINKLEY XBSPN05337
HISTEER 10315
TRIANGLE 4480
TRIANGLE 6375
WATSON&CHALIN AS-0087
WATSON&CHALIN AS 0087
WATSON&CHALIN AS0087
Reyco 20018-01 (86AR)
Reyco 2001801(86AR)
Brake&Wheel M3531
Twthill 1881301/2001801
Specifications and Detailed Technical Parameters
Material | Rubber and Steel |
Top plate combo stud | 1/4-18NPT + 3/4-16unf |
Top plate bolt | 1/2-13UNC |
Bottom plate studs | 2x 1/2-13UNC |
The screw center distance | 157mm |
Top/Bottom plate diameter | 224.5mm |
Height | 104-363mm |
Max. OD | 343m |
Rubber bumper | With |
Girdle hoop | 1piece |
Style | Air spring complete |
HS Code | 8708809000 |
Sample | Aavailable |
Convolutions | Double |
Warranty | One year |
Payment way | T/T, Western Union, Paypal or Others |
Currency | USD, CNY, EUR, GBP |
Applications | Bag loaders Or Other Industrial Machines |
Air spring bellows can be used in filling machines
Air springs, also known as pneumatic springs. Air springs work by
compressing air to generate a force, and can provide a high level
of precision and control when used as actuators in filling
machines. They can help to reduce the level of vibration and noise
in the machine, and may also help to increase the speed and
efficiency of the filling process. Additionally, air springs can
help to improve the safety of filling machines, by reducing the
risk of injury to operators or damage to the machine.
Air springs are commonly used in filling machines as actuators to
control the movements of the equipment. They are frequently used
for isolating vibration and reducing noise in the machines during
operation. The air spring technology allows for smooth and precise
movements due to the air pressurization system. This makes it ideal
for filling and packaging machines where precision, speed, and
consistency are key factors. Additionally, air springs can be
adjusted for various loads, which makes them versatile for
different packaging and filling applications.

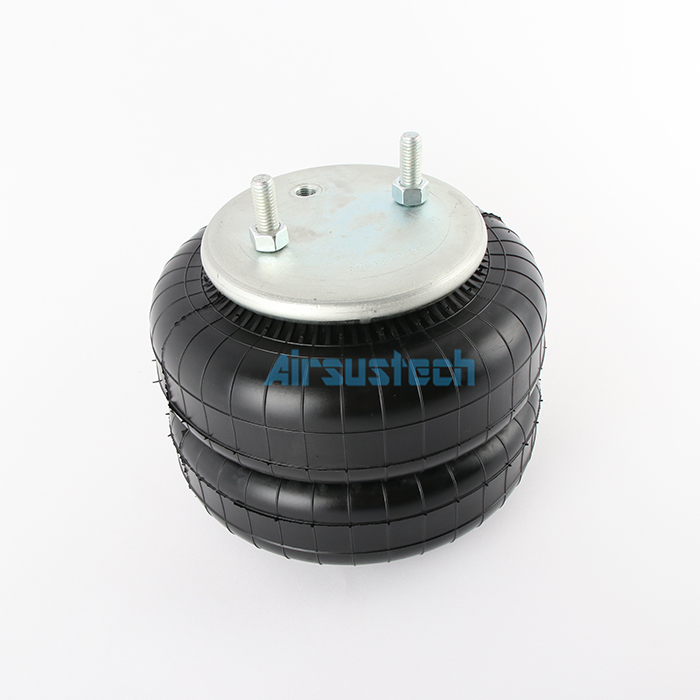

The related picture of industrial air springs
![]() |
