Industrial Laundry Equipment Air Springs Single Convoluted Airsustech Air Bag 1B9X5 With 4 Screws


Air Spring spcifications and data parameters: 1B9X5

Industrial air springs can be used in Industrial Laundry Equipment

Air springs can have various applications in industrial laundry equipment. They can be used to isolate and dampen vibrations generated by washing machines, dryers, and other laundry equipment. They can also be used to support and lift heavy loads in laundry equipment, such as in industrial washers and dryers. Additionally, air springs can help to improve the overall safety, reliability, and longevity of laundry equipment by reducing wear and tear on components and improving the stability of the equipment during operation.

The working principle of an industrial convoluted air spring involves the compression of air within a flexible and airtight container, which can then support a load by exerting a force upward. The convoluted shape of the air spring allows it to compress and expand vertically, providing a degree of elasticity that can absorb shocks and vibrations from the load. As more air is pumped into the container, the air pressure increases, and the air spring becomes stiffer and can support a greater amount of weight. Conversely, reducing the air pressure will decrease the air spring's stiffness and its ability to support weight. In summary, an industrial convoluted air spring works by using compressed air to provide a load-bearing force that can be adjusted with changes in air pressure.

Other kinds of 1B9X5 industrial air springs we could offer

1B9X5

Cross Reference

Goodyear 1B9-202, 1B9 202, 1B9202

Goodyear bellow number 578 91 3 201, 578-91-3-201, 578913201

Product details

1/4-18NPTF Offset air inlet, 44.5mm

2pcs x 3/8-16UNC on 89mm center

60-160mm Height

222mm Rubber bellow diameter

1B9X5-3/4

Cross Reference

Goodyear part number 1B9-202

Goodyear part number 1B9 202

Goodyear part number 1B9202

Goodyear bellow number 578 91 3 201, 578-91-3-201, 578913201

Product details

G3/4 centered air inlet

2pcs x M8X1.25 on 70mm center

128mm Height

222mm Rubber bellow diameter

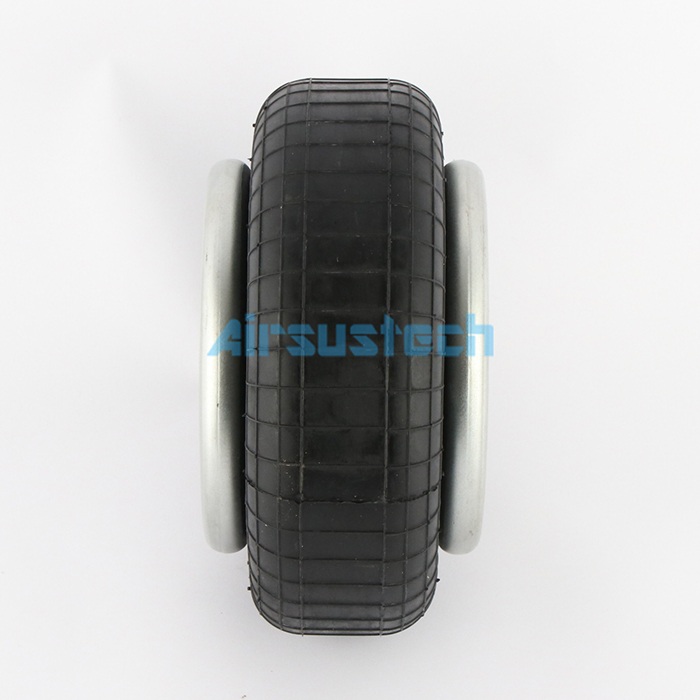

The reated picture of 1B9X5 industrial air springs

Guangzhou Guomat Air Spring Co., Ltd. is located in Guangzhou, about 15min’s drive from Baiyun Airport. Our mainly products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles’ seat, luxurious car and industrial machine field.

AIRSUSTECH is another brand of Guangzhou Guomat Air Spring Co., Ltd.

AIRSUSTECH is focus on industrial air spring.

GUOMAT Factory gate：

Established in 2008, Our company covers 20,000㎡ and is located in Taihe Town Baiyun District. With the rapid development of our company, we are equipped with modernized workshop and advanced rubber air springs equipments now. We are the first company who started air spring business and has become one of the largest air spring manufacturing bases in China.

In 2017, we launched a collaboration with High Tech of US customers to customize the products of our customers and the logo of our customers. Every year, there are about 10,000 orders. In continuous cooperation, the products meet the international inspection standard ISO/TS16949:2009, and the customers are very satisfied with the products produced. This is our high recognition from American customers and also gives us Great motivation.

In 2018, we started cooperation with German GmbH, mainly industrial air springs, which are suitable for industrial equipment. We have successfully developed and produced the natural air-seal of the skin to reach the 700mm flanged air spring, the customer's annual demand is a few hundred.

With the development of business and demand for customers, our company introduced business with TomLog Corporation in 2010, our strategic cooperative partner in Taiwan. Then we developed air compressor program and air spring related business, in 2015, America Goodyear Corporation met with the transfer of shares in the North American plant, our company was granted with sale agent for air springs in China, providing more choice for our customers. Our company adopts the most advanced domestic air spring processing equipment and international production technology. Combined with unique production process, our company strictly execute international standards for production and spare no efforts to create the world-class products. We will endeavor to make air spring widely used at home and abroad, and let more and more customers to enjoy the best damping effect.
