Brand Name : | AIRSUSTECH |
Model Number : | 3H320/350 |
Certification : | ISO/TS16949:2009 |
Payment Terms : | T/T, Western Union, Paypal or Others |
Supply Ability : | 1000PCS/Week |
Delivery Time : | 5-8 Working Days |
Firestone W01-358-7926 Atuo Rubber Air Bellow Repalcement Triple Convoluted Industrial Air Springs
Cross Reference
Firestone Style 314
Firestone W01-358-7926
Firestone W01 358 7926
Firestone W013587926
Firestone WO1-358-7926
Firestone WO1 358 7926
Firestone WO13587926
Ribbed neck aluminum bead rings (equal spacing),17/8 bolts, nuts, washers | W01-358-7761 | |
Style 312 | Ribbed neck aluminum bead rings (unequal spacing) 17/8 b,n,w | W01-358-7760 |
Two Ply Bellows | Rolled plate assembly*, 1/2 blind nuts, 3/4 NPT | W01-358-7286 |
Rubber bellows only | W01-358-7915 |
Style 314 | Ribbed neck aluminum bead rings (equal spacing),17/8 bolts, nuts, washers | W01-358-8003 |
High Strength Construction | Ribbed neck aluminum bead rings (unequal spacing) 17/8 b,n,w | W01-358-8004 |
Rubber bellows only | W01-358-7926 |
Style 312
Ribbed neck aluminum bead rings (equal spacing), 45 mm bolts, nuts, washers W01-M58-7530
Rolled plate assembly, 1/2 blind nuts, 3/4 NPT W01-358-7286
Style 314
Aluminum ribbed neck bead rings (equal spacing), 45 mm bolts, nuts, washers W01-M58-6981
Rolled plate assembly,1/2 blind nuts, 3/4 NPT W01-358-8009
Rubber bellows only W01-358-7926
Specifications and Detailed Technical Parameters
Rubber bellow diameter: 417mm
Height: 350mm
Min. Height:120mm
Max. Height: 440mm

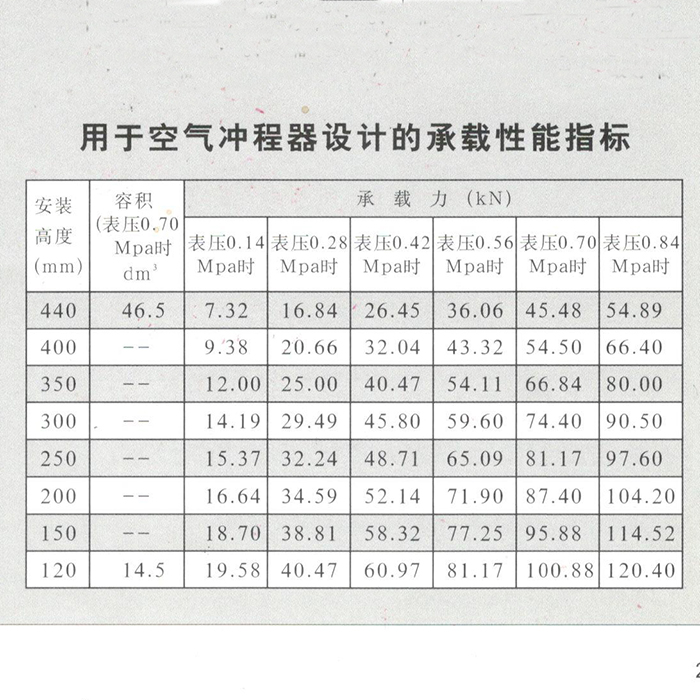

installation height(mm) | volume (When the pressure is 0.70Mpa)Dm3 | carrying capacity (KN) | |||||
0.14 Mpa | 0.28 Mpa | 0.42 Mpa | 0.56 Mpa | 0.70 Mpa | 0.84 Mpa | ||
440 | 46.5 | 7.32 | 16.84 | 26.45 | 36.06 | 45.48 | 54.89 |
400 | / | 9.38 | 20.66 | 32.04 | 43.32 | 54.50 | 66.40 |
350 | / | 12.00 | 25.00 | 40.47 | 54.11 | 66.84 | 80.00 |
300 | / | 14.19 | 29.49 | 45.80 | 59.60 | 74.40 | 90.50 |
250 | / | 15.37 | 32.24 | 48.71 | 65.09 | 81.17 | 97.60 |
200 | / | 16.64 | 34.59 | 52.14 | 71.90 | 87.40 | 104.20 |
150 | / | 18.70 | 38.81 | 58.32 | 77.25 | 95.88 | 114.52 |
120 | 14.5 | 19.58 | 40.47 | 60.97 | 81.17 | 100.88 | 120.40 |
![]() |
