    Industrial Suspension Air Springs AIRKRAFT 113071 2B-150 DUNLOP DB06219 Double Convoluted

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 6×2
    Certification : ISO/TS16949:2009
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    Industrial Suspension Air Springs AIRKRAFT 113071 2B-150 DUNLOP DB06219 Double Convoluted

    AIRKRAFT 113071 2B-150 DUNLOP DB06219 Double Convoluted Industrial Suspension Air Springs


    Cross Reference


    Air spring supplier/competitor: Dunlop

    Supplier/competitior number: 6''×2


    Air spring supplier/competitor: Dunlop

    Supplier/competitior number: DB 06219; DB06219


    Air spring supplier/competitor: AIRKRAFT

    Supplier/competitior number: 2B-150; 2B 150; 2B150; 113071


    Air spring supplier/competitor: F

    Supplier/competitior number: 2DC-150-2C | 500125


    Air spring supplier/competitor: Weforma No

    Supplier/competitior number: WBZ-G 210


    Other reference


    Supplier/competitor number: G2B150-2C; G2B150 2C; G2B1502C


    Supplier/competitor order number: 800125 PRODUCT NO:2AY-150-2C; 2AY 150 2C; 2AY1502C


    Air Spring Specifications and Parameters


    MaterialRubber and Steel
    SampleAvailable
    TypeAir spring complete
    ConvolutionsDouble
    Air hole/ air fittings/air holeG1/2
    Top plate studs qty4pcs × M10
    Bottom plate studs qty4pcs × M8
    Girdle hoop1 piece
    HS Code8708809000

    Air spring components


    Air Fitting: A threaded hole to allow spring supply from an air compressor
    Nuts/Bolts/Studs: A method of attaching an air spring to a component. Some air springs contain a combination bolt and air fitting.
    Bead Board: A crimped sheet of metal that encloses the spring and allows connections. This is usually forged steel, cast zinc alloy or cast aluminum.
    Bellows: A physical multi-layer material that traps compressed gas. Usually made of neoprene or rubber.
    Girdle hoop: Found only in air springs of complex design, used to separate bellows chambers.
    Bumper: An optional liner layer that protects the piston from damage should the air spring fail.


    About air spring knowledge


    Under normal circumstances, air springs have no expiration date and lifespan. As long as they are well maintained, they will last longer. Especially imported air springs, basically there will be no problems. However, users need to pay attention to that regular repairs and maintenance must be carried out every quarter, which can greatly improve the efficiency of use and prolong the service life of the air spring.
    The flexibility and stiffness of the air spring are relatively strong, and it can also be adjusted. The stiffness of the entire spring system can be changed by changing the gas container and pressure. Regardless of the weight being carried, the spring stiffness can be adjusted by varying the air pressure. In addition, the air spring will be easier to control, because the medium used in the entire spring device is air operation is relatively simple.

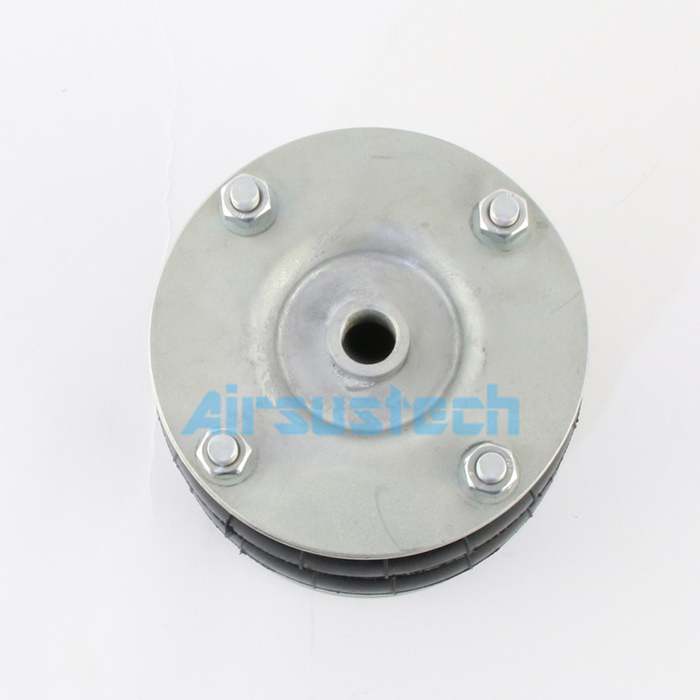

    The related picture of helper bag/air springs











    Quality Industrial Suspension Air Springs AIRKRAFT 113071 2B-150 DUNLOP DB06219 Double Convoluted for sale
