Contitech FD 614-26 DS G 1/2 68046 Double Convolution Air Actuator Norgren M/31142 Air Bellow

Specifications and Technical Parameters

1. Top plate bolts: 4pcsM10

2. The top plate screw center distance: 282.5mm

3. Bottom plate bolts: 4pcsM10

4. The bottom plate screw center distance: 282.5mm

5. Air inlet/air fittings: G1/2

6. Height: 75mm-340mm

7. Top plate diameter: 310mm

8. Bottom plate diameter: 310mm

9. Max. OD: 400mm

Min. pressure 0 bar
Return force to min height ≤ 280 N
Overall weight 8.3 kg

Vibration isolation – dynamic characteristic values
Design height H: recommended 250mm, minimum 230mm

Pneumatic application – static characteristic values

Force F [kN]

Cross Reference

CONTITECH FD 614-26 DS G 1/2 air spring

Contitech FD614-26DSG1/2 air spring assembly

Contitech FD 614-26 DS air springs

Contitech FD614-26DS air bag

Contitech FD 614 26 DS air bags

Contitech 68046 air actuator

FIRESTONE W01-R58-4064 rubber bellow

FIRESTONE W01 R58 4064 air spring complete

FIRESTONE W01R584064 air shock

FIRESTONE WO1-R58-4064 air suspension spring

FIRESTONE WO1 R58 4064 air suspension springs

FIRESTONE WO1R584064 air suspension bag

SMB/FRUEHAUF
GIGANT 881205 air suspension bags

WEWELER USN 510010DX air balloon

DUNLOP SP 257 pneumatic cylinder

TROUILLET

SAMRO

DUNLOP PNEURIDE 14" 1/2 x 2

DUNLOP SPRINGRIDE SP1556

NORGREN M/31142 air bellow

NORGREN M31142 rubber bags

NORGREN M 31142 air pillow

PARKER 9109061 air bellow

Feature

low installation height
Compared with traditional cylinders, pneumatic actuators do not contain a piston rod, so the design height can be greatly reduced. This allows for a compact design.

angular motion
Depending on the type, pneumatic actuators are available for tilt angles up to 30°, which enables designers to simplify articulated designs.

low purchase price
The purchase cost is much lower than that of traditional cylinders. Operating costs are also reduced due to their long service life and maintenance-free

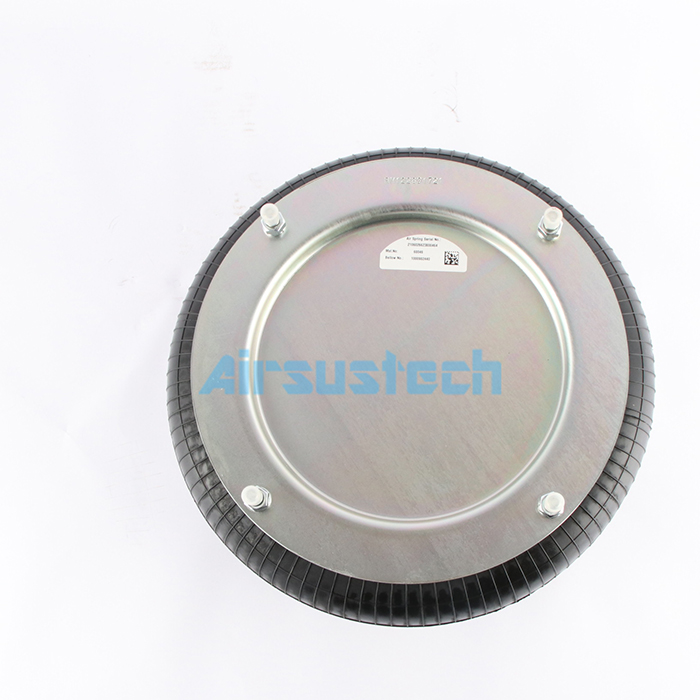

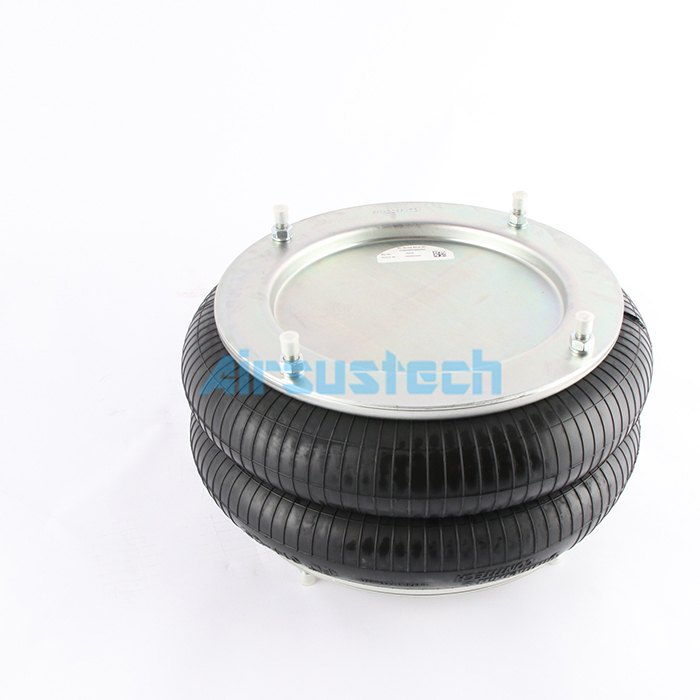

The picture of FD 614-26 DS G 1/2

Guangzhou Guomat Air Spring Co., Ltd. is located in Guangzhou, about 15min’s drive from Baiyun Airport. Our mainly products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles’ seat, luxurious car and industrial machine field.

AIRSUSTECH is another brand of Guangzhou Guomat Air Spring Co., Ltd.

AIRSUSTECH is focus on industrial air spring.

GUOMAT Factory gate：

Established in 2008, Our company covers 20,000㎡ and is located in Taihe Town Baiyun District. With the rapid development of our company, we are equipped with modernized workshop and advanced rubber air springs equipments now. We are the first company who started air spring business and has become one of the largest air spring manufacturing bases in China.

In 2017, we launched a collaboration with High Tech of US customers to customize the products of our customers and the logo of our customers. Every year, there are about 10,000 orders. In continuous cooperation, the products meet the international inspection standard ISO/TS16949:2009, and the customers are very satisfied with the products produced. This is our high recognition from American customers and also gives us Great motivation.

In 2018, we started cooperation with German GmbH, mainly industrial air springs, which are suitable for industrial equipment. We have successfully developed and produced the natural air-seal of the skin to reach the 700mm flanged air spring, the customer's annual demand is a few hundred.

With the development of business and demand for customers, our company introduced business with TomLog Corporation in 2010, our strategic cooperative partner in Taiwan. Then we developed air compressor program and air spring related business, in 2015, America Goodyear Corporation met with the transfer of shares in the North American plant, our company was granted with sale agent for air springs in China, providing more choice for our customers. Our company adopts the most advanced domestic air spring processing equipment and international production technology. Combined with unique production process, our company strictly execute international standards for production and spare no efforts to create the world-class products. We will endeavor to make air spring widely used at home and abroad, and let more and more customers to enjoy the best damping effect.
