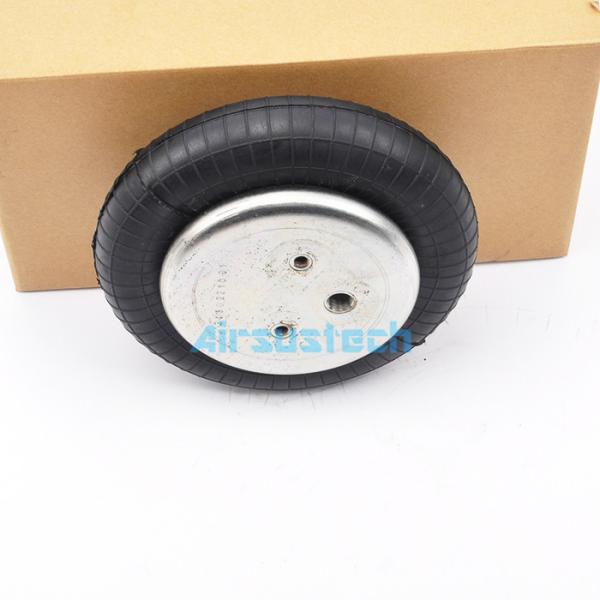

Impact Absorption Bellow Cylinders Phoenix SP1B07 PARKER KY9501 Single Convoluted Industrial Air Springs

Cross Reference

Air suspension supplier/competitor: Phoenix

Supplier/competitor: SP1B07; SP 1 B 07; SP 1B 07; SP1B 07; SP 1B07; SP1 B 07

Air suspension supplier/competitor: PARKER

Supplier/competitor: KY9501

Specifications and Detailed Technical Parameters

1. Top plate blind nuts: 2pcs x M8 x 1.25

The screw center distance: 53mm

2. Bottom plate blind nuts: 2pcs x M8 x 1.25

The screw center distance: 53mm

3. Top bead plate diameter: 135mm

4. Bottom bead plate diameter: 135mm

5. Air inlet/air fittings/air hole: G1/4, Offset, 26mm

6. Max. OD: 215mm

7. Working stroke: 50-115mm

8. Rubber bumper: Without

9. Girdle hoop: Without /NO

Other 1B1209 series we could offer

Phoenix SP series cross PARKER Pneumatic NO.

Phoenix PARKER

SP-1B04 KY9500

SP-1B05 KY8401

SP-1B12 KY9502

SP-1B22 KY9590

SP-1B34 KY8010

SP-2B04 KY9612

SP-2B05 KY8011

SP-2B05A KY8012

SP-2B07 KY9589

SP-2B12 KY9611

SP-2B22 KY9591

SP-2B34 KY8007

Application

Hopper vibration and damping

Commercial laundry machine

Wheel suspension

Mechanical handling stop

Impact absorbtion

Machine isolation

Reel tensioning

Platform lift

Web tensioning device

Quick lock device

Short stroke mechanical linkage

Roller tensioning

Hot foil stamping press

Advantages

High thrust and frictionless movement; No maintenance or lubrification, oil free; Short stroke for high force application; Easy to install, no precise alignment; Easy to work; Single acting use as a cylinder; High isolation level, use as an isolator
