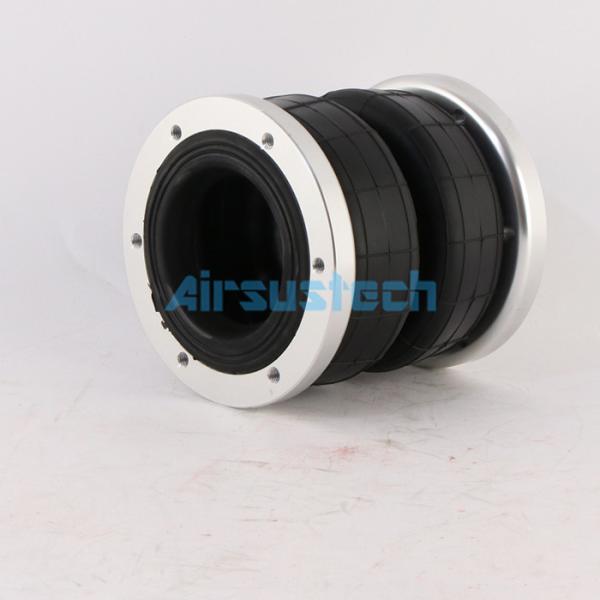

    Flange Modified Suspension Air Springs Universal Double Pneumatic Bag Shock Absorber

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 2B2300F
    Certification : ISO/TS16949:2009
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    Flange Modified Suspension Air Springs Universal Double Pneumatic Bag Shock Absorber

    Universal Double Pneumatic Bag Shock Absorber Flange Modified Suspension Air Springs


    Item Information

    Convolutions: Double/ Two
    Warranty: 12 Months
    Applcation: for modified car air spring
    Certifications: ISO/TS16949:2009
    Product name: ubber air spring shock absorber Air ride Springs suspension
    Ship from: Guangzhou city, guangdong province, China

    Ship to : Worldwide
    HS Code: 8708809000
    Delivery time: 3 working days if we have stocks
    Packing: Netural, strong cartons
    Terms: EXW, CNF, CIF or others
    Payment way: T/T, Western Union, Paypal or Others
    Acceptable currencies: RMB, USD, EUR, GBP

    Sample: Available

    OEM No.

    2S2300F
    An air spring could be defined as a reservoir of air made of rubber and fabric, which is shaped with bellows and that can be used to support load, isolate vibrations and shocks, or act as a pneumatic cylinder by expanding itself.

    Technical data

    The flange blind nuts on bottom6pcs×1/4''
    The screw center distance on top plate114.5mm
    The flange blind nuts on bottom6pcs×1/4''
    The screw center on bottom plate114.5mm
    The top plate diameter134mm
    The bottom plate diameter134mm
    Design height134mm
    Rubber bellow diameter125mm
    The opening diameter80mm
    Girdle hoop1pc



    Some common airbags are used in modified cars

    1. 2B2200
    2pcs 3/8-16UNC on top plate, 1pc 3/8-16UNC on bottom plate, 1/4NPT centered Air inlet,100mm rubber bellow diameter, 124mm height

    2. 2B2300
    2pcs 3/8-16UNC on top plate, 1pc 3/8-16UNC on bottom plate, 1/2-14NPT offset Air inlet,125mm rubber bellow diameter, 137mm height

    3. 2B2500
    2pcs 3/8-16UNC on top plate, 1pc 3/8-16UNC on bottom plate, 1/2-14NPT offset Air inlet,152mm rubber bellow diameter
    Design height: 212mm
    Deflection (Height min): 110mm
    Deflection (Height max): 240mm
    Working stroke: 130mm
    Loading cap.at 3.0 bar: 1.48kN

    Loading cap. At 7.0 bar: 6.23kN
    4. 2B2600
    2pcs 3/8-16UNC on top plate, 1pc 3/8-16UNC on bottom plate, 1/2-14NPT offset Air inlet,181mm rubber bellow diameter

    Design height: 212mm
    Deflection (Height min): 120mm
    Deflection (Height max): 255mm

    Working stroke: : 135mm
    Loading cap.at 3.0bar: 3.85kN

    Loading cap.At 7.0bar: 9.52kN
    5. 3B2200
    2pcs 3/8-16UNC on top plate, 1pc 3/8-16UNC on bottom plate, 1/4NPT offset Air inlet,97mm rubber bellow diameter, 180mm height


    6. 3B2300
    2pcs 3/8-16UNC on top plate, 1pc 3/8-16UNC on bottom plate, 1/2-14NPT offset Air inlet,125mm rubber bellow diameter, 187mm height


    7. 3B2400
    2pcs 3/8-16UNC on top plate, 1pc 3/8-16UNC on bottom plate, 1/2NPT offset Air inlet,144.5mm rubber bellow diameter, 213mm height


    The related picture
