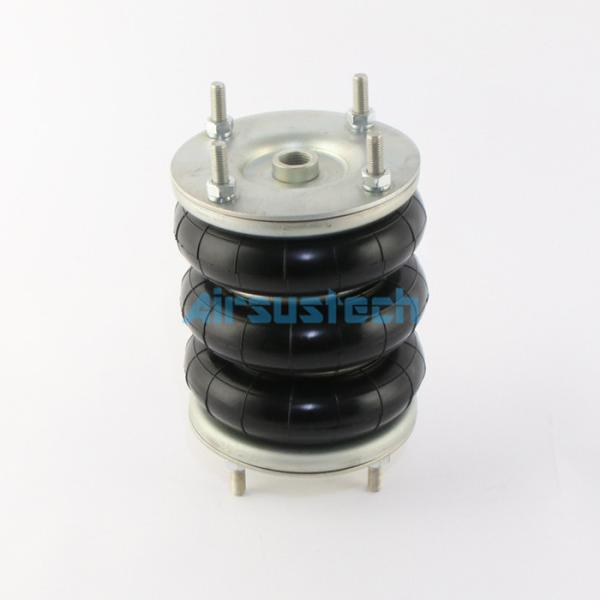

6''×3 Firestone W01R584095 DUNLOP SP 2861 CONTITECH FT 76-20 DS Tripe Convoluted Industrial Air Springs For Pallet Lifts

Cross Reference

Firestone W01R584095

Firestone W01 R58 4095

Firestone W01-R58-4095

Firestone WO1R584095

Firestone WO1 R58 4095

Firestone WO1-R58-4095

Firestone wo1r584095

Firestone wo1 r58 4095

Firestone wo1-r58-4095

DUNLOP SP 2861

DUNLOP SP2861

CONTITECH FT 76-20 DS

CONTITECH FT 76 20 DS

CONTITECH FT76-20DS

CONTITECH FT 76-20 DS CR

Continental FT76-20DSCR

Continental 70217

CONTITECH FT 76-20 DS G 1/2

CONTITECH FT76-20DSG1/2

CONTITECH FT 76-20 DS G 1/2 M10

CONTITECH FT76-20DSG1/2M10

Norgren M/31063

Norgren M 31063

Norgren M31063

PARKER 9109007

Specifications and Detailed Technical Parameters

Top plate bolts/studs: 4pcs× M10

The screw center distance on top plate: 153.5mm

Bottom plate bolts/studs: 4pcs×M10

The screw center distance on bottom plate: 153.5mm

Air fittings: G1/2, Centered

Girdle hoop: 2 pieces

Convolutions: Triple

HS Code: 8708809000

Type: air spring with dismountable plates,G1/2 air inlet

We could also offer 6''×3(Al) Model

Reference

Advantages of airbags

1. Controllable spring elastic coefficient:
2. Adjustable load carrying capacity:
3. Easy height control;
4. Reduce friction
5 coincides with changes, but the natural frequency is basically unchanged

Air spring application

When the air spring is working, it must first inflate its interior. After inflating, it has a certain air pressure. Because the traditional shock absorber itself is made of hard material, it cannot avoid vibration itself, and its natural vibration frequency is certain. So it is difficult to have a good shock absorption and noise reduction effect. The air spring is a soft material, which has the functions of vibration absorption and noise reduction, which can effectively avoid the transmission of vibration and cause a vicious circle.
The lifting accuracy is higher, and the equipment with secondary lifting can adopt mechanical lifting on a large stroke. When the lifting height is close to the target height, the mechanical lifting stops and the air spring is used for lifting. The air spring uses air pressure to change its height. During the process of air spring inflation and expansion, due to the continuous increase of internal air pressure, the height of the air spring increases slowly, giving the on-site operators sufficient reaction time, improving positioning accuracy and reducing the difficulty of operation.
