Industrial Air Springs Firestone W01R584058 DUNLOP SP1538 PARKER 9109021 Double Convoluted

Basic Information

Cross Reference

Air suspension supplier/competitior: Firestone

Supplier/competitior number: W01R584058; W01 R58 4058; W01-R58-4058; WO1R584058; WO1 R58 4058; WO1-R58-4058

Air suspension supplier/competitior: DUNLOP

Supplier/competitior number: SP1538

Air suspension supplier/competitior: PARKER

Supplier/competitior number: 9109021

Air suspension supplier/competitior: Contitech / Continental

Supplier/competitior number: FD 210-22 DS; FD210-22 DS; FD210-22DS; FD 210-22 DS G 1/2; FD210-22DSG1/2; FD 210-22 1/2 M10; FD 210 22 1/2 M10; FD210-22 1/2 M10; FD210 22 1/2 M10; 67403

Air suspension supplier/competitior: Norgren

Supplier/competitior number: M/31102; M31102; M 31102

Air suspension supplier/competitior: Goodyear

Supplier/competitior number: 2B10-2350; 2B10 2350; 2B102350

Goodyear Flex No.: 578-92-3-2350; 578 92 3 2350; 5789232350

Air suspension supplier/competitior: WEFORMA

Supplier/competitior number: WBZ-G 450

Air suspension supplier/competitior: GRANNING

Supplier/competitior number: 15807

Air suspension supplier/competitior: SAMRO

Supplier/competitior number: H250-0021

Air suspension supplier/competitior: AIRKRAFT

Supplier/competitior number: 113100

Specifications and Detailed Technical Parameters: 10 X 2

Rubber bellow diameter: 250mm

The top plate diameter: 210mm

The bottom plate diameter: 210mm

The studs on top plate: 4pcs× M10

The screw center distance on top plate:181mm

The studs on bottom plate: 4pcs× M10

The screw center distance on bottom plate: 181mm

Air inlet/ar fittings/air hole: G1/2

Girdle hoop/ring: 1 piece

Height:190mm

Working pressure: ≤0.7Mpa
Applicable medium: water, air, a small amount of oil
Folding times: ≥ 1 million times
Hydrostatic test: 1Mpa for 15 minutes
Burst pressure: ≥2.0MPa

Application

Industrial air spring shock absorbers are widely used in industrial equipment such as machine tools, stamping machines, injection molding machines, and cooling towers. Its main function is to reduce the vibration and impact of the equipment, improve the stability and precision of the equipment, and also prolong the service life of the equipment.

Precautions for the use of industrial air spring shock absorbers

1. Choose the right model: Choose the right model and quantity according to the weight and vibration of the equipment.

2. Adjust the air pressure: It is necessary to adjust the air pressure properly according to the vibration of the equipment to achieve the best shock absorption effect.

3. Maintenance: Regularly check whether the air pressure and spring of the industrial air spring shock absorber are normal, and replace damaged parts in time.

4. Avoid overloading: When using industrial air spring shock absorbers, it is necessary to avoid overloading, so as not to cause damage or poor shock absorption effect.

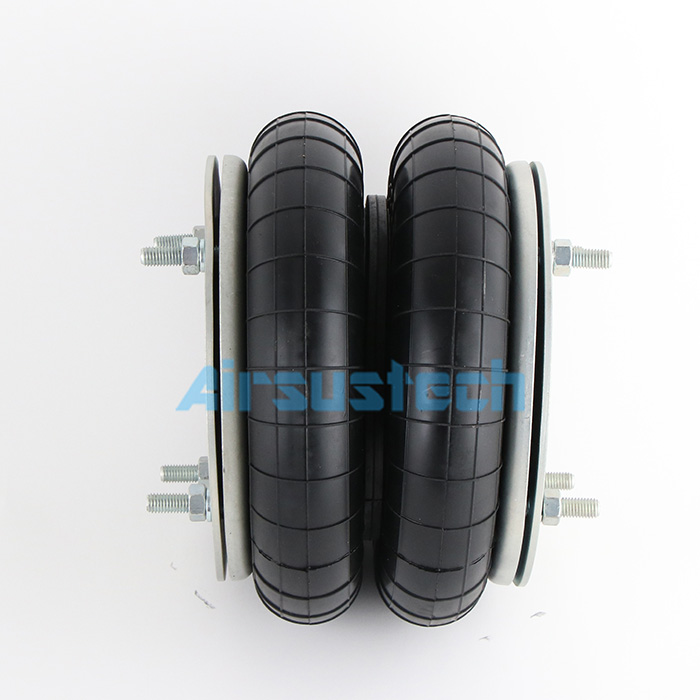

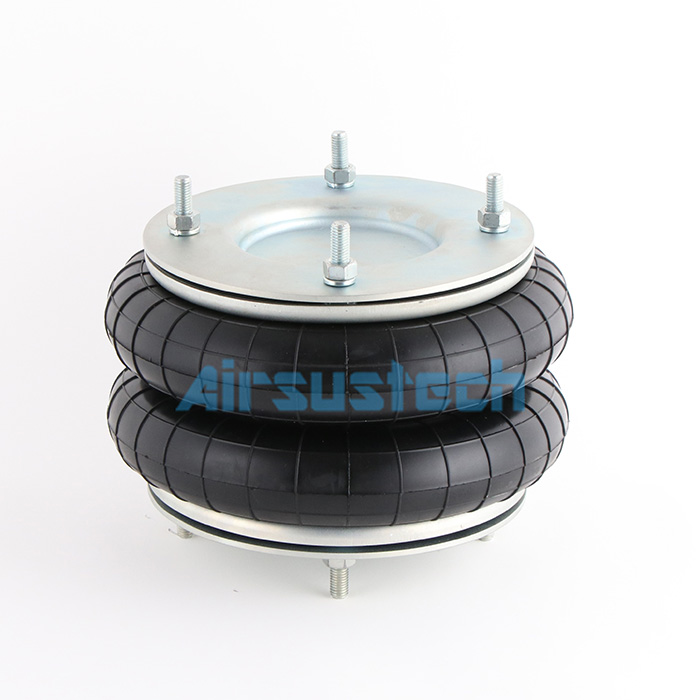

The related picture of 2B10×2 double convoluted air spring
