Contitech FT 816-40 DS Firestone W01R584068 Triple Convoluted Industrial Air Springs


Cross Reference

Air Supension supplier/competitior: Contitech

Supplier/competitior number: FT 816-40; FT 816-40 DS; FT 816-40 DS G 1/2; FT816-40DSG1/2; 68053

Air Supension supplier/competitior: Firestone

Supplier/competitior number: W01R584068; W01 R58 4068; W01-R58-4068; WO1R584068; WO1 R58 4068; WO1-R58-4068

Air Supension supplier/competitior: DUNLOP PNEURIDE

Supplier/competitior number: 16" x 3

Air Supension supplier/competitior: DUNLOP SPRINGRIDE

Supplier/competitior number: SP2141

Air Supension supplier/competitior: NORGREN

Supplier/competitior number: M/31163; M 31163; M31163

Air Supension supplier/competitior: PARKER

Supplier/competitior number: 9109177

Air Spring spcifications and data parameters

Air inlet: G1/2

Mounting threads on top plate: 4pcs×M10

Screw center distance on top plate: 282.5mm

Mounting threads on bottom plate: 4pcs×M10

Screw center distance on bottom plate: 282.5mm

Top plate diameter: 310mm

Bottom plate diameter: 310mm

Hmax: 550mm

Hmin: 120mm

Girdle hoop: 2pcs

Max. OD:430mm

Min. Pressure: 0 bar
Return force to min height ≤ 100 N
Overall weight: 10.4 kg

Pneumatic application – static characteristic values

Force F [kN]

Other 16'' series model

16''×1 with dismountable plates,G1/2 air inlet

Reference

Firestone W01-R58-4066; W01 R58 4066; W01R584066； WO1-R58-4066; WO1 R58 4066; WO1R584066

DUNLOP 16 x 1

Contitech FS 816-15 DS; FS816-15DSG1/2

NORGREN M/31161; M 31161; M31161

PARKER 9109026

16 ''X 2 Only rubber bellow

Firestone W01-R58-4023; W01 R58 4023; W01R584023; WO1-R58-4023; WO1 R58 4023; WO1R584023

DUNLOP SP 1129; SP1129

16 X 2 with dismountable plates,G1/2 air inlet

Reference

Firestone W01-R58-4067; W01 R58 4067; W01R584067; WO1-R58-4067; WO1 R58 4067; WO1R584067

WEWELER USN 510008DX
DUNLOP SP 1557

Contitech FD 816-30 DS; FD816-30DSG1/2

NORGREN M/31162; M 31162; M31162

PARKER 9109171

16‘’×3 Only rubber bellow

Reference

Contitech FT 816-40 VP

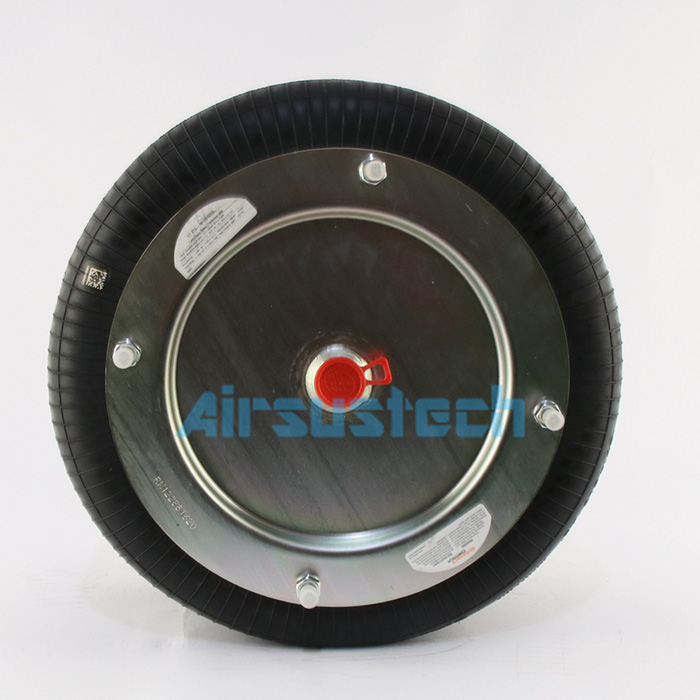

The reated picture of air springs/convoluted air spring/air bag/air balloon
