    Industrial Machines 224C Style Air Spring W01-M58-6400 Double Bellows Convoluted Air Actuator

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 2B6400
    Certification : ISO/TS16949:2009
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    Industrial Machines 224C Style Air Spring W01-M58-6400 Double Bellows Convoluted Air Actuator

    Industrial Machines 224C Style AirSpring W01-M58-6400 Double Bellows Convoluted Air Actuator


    Cross Reference

    Firestone Style 224; 224C
    Firestone W01-M58-6400
    Firestone W01 M58 6400
    Firestone W01M586400
    Firestone WO1-M58-6400
    Firestone WO1 M58 6400
    Firestone WO1M586400
    Firestone w01-M58-6400
    Firestone w01 M58 6400
    Firestone w01M586400
    Firestone wo1-M58-6400
    Firestone wo1 M58 6400
    Firestone wo1M586400



    Specifications and Technical Parameters

    Two ply Bellows


    Type

    Metric

    Air inlet

    1/4 BSP

    Blind nuts on top plate

    2pcs × M8×1.25

    The screw center on top plate

    70mm

    Blind nuts on bottom plate

    2pcs × M8×1.25

    The screw center on bottom plate

    70mm

    Top cover plate diameter

    135mm

    Bottom cover plate diameter

    135mm

    Max. OD at 7 bar

    203mm

    Min. Height

    71mm

    Max. Height

    229mm

    Girdle hoop

    Without

    Bumper block/ Rubber bumper

    One piece



    Other 224C Style

    Rubber Bellows only W01-358-5101; W01 358 5101; W013585101; WO1-358-5101; WO1 358 5101; WO13585101
    Countersunk steel bead ring W01-358-3407; W01 358 3407; W013583407; WO1-358-3407; WO1 358 3407; WO13583407



    Other models

    FS 530-11CI G1/4; 61359; W01-M58-6101; 113; 113B; 578-91-3-352
    FS 530-11CI G3/4; 63205; W01-M58-6100; 113; 113B; 1B14-371; 36; YI14-371
    FS530-14 339; 64521; W01-358-7112; 113-1; 113B-1; 1B14-358; 578-91-3-352
    FS 530-14 442; 64523; W01358-7103; 113-1; 113B-1; 1B14-350; 578-91-3-351
    FS 530-14 446; 64524; W01-358-7104;113-1; 113B-1; 1B14-351; 578-91-3-351
    FS 530-14 447; 64525; W01-358-7105; 113-1; 113B-1; 1B14-351; 578-91-3-351
    FS 530-14 538; 64529; W01-358-7094; 113-1; 113B-1
    FS 530-14CI G1/4; 60435; W01-M58-6371; 113-1; 113B-1; 578-91-3-352
    FS 530-14CI G3/4; 61360; W01-M586369; 113-1; 113B-1; 1B14-372; 578-91-3-352; 86; YI1B-372


    Application

    Waste incineration equipment air bag
    Mining equipment air bag
    Mold Separator Air Mold Pad
    Roller Airbag

    Web Assembly Machine Airbag
    Pneumatic secondary lift airbag
    Gate Valve Operator Air Spring
    Forming press pneumatic tire
    Cable Tensioner Airbag

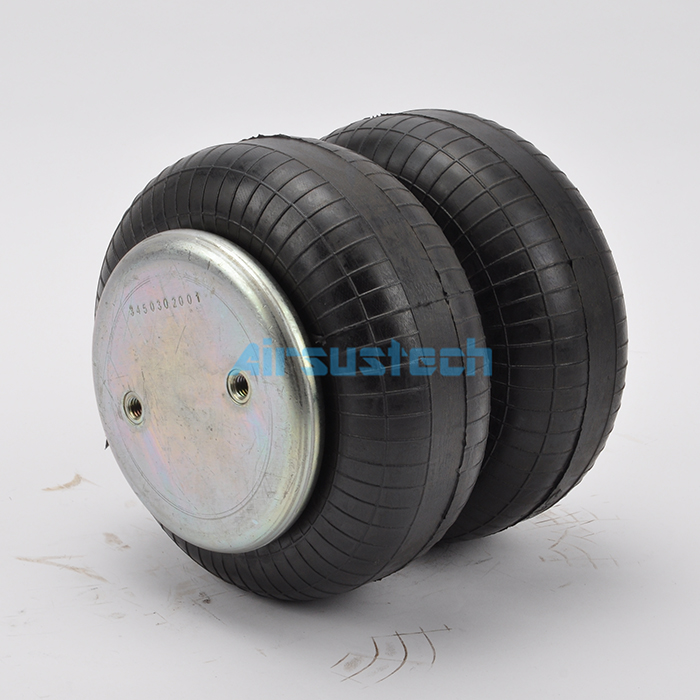

    Airbag picture
