Firestone Air Bags W01-M58-6160 WO1M586160 Double Convoluted 1/4 BSP Indsutrial Bellow Actuator

Basific Information

Product name: air spring, air bag, air suspension, air shock

Convolution: Double

Material: Rubber and steel

Sample: Available

Condition: 100% New

Payment: T/T, Western Union, Paypal or Others

Delivery time: 3-8 Working days

Shipping ways: By express, by sea, by air or others

Cross Reference

Firestone Style 25
Firestone W01-M58-6160

Firestone W01 M58 6160

Firestone W01M586160

Firestone WO1-M58-6160

Firestone WO1 M58 6160

Firestone WO1M586160

Firestone w01-M58-6160

Firestone w01 M58 6160

Firestone w01M586160

Firestone wo1-M58-6160

Firestone wo1 M58 6160

Firestone wo1M586160

Specifications and Technical Parameters

Two ply Bellows
Blind nuts on top plate: 2pcs × M8×1.25
The screw center on top plate: 44mm
Blind nuts on bottom plate: 2pcs × M8×1.25
The screw center on bottom plate: 44mm
Top cover plate diameter: 114mm
Bottom cover plate diameter: 114mm
Max. OD at 7 bar: 163mm
Girdle hoop: Without
Bumper block/ Rubber bumper: One piece

Other 25 Style Firestone air spring replacement we could offer

About convoluted air spring

What is a double convoluted Air Spring? There is a belt in the middle of the air spring. This belt is called an air spring hoop, and the number of this hoop is one of the basic elements to distinguish the number of bellow.

The double convoluted industrial air spring is a curved capsule made of rubber mesh. The two ends of the capsule need to be connected with two steel plates to form two compressed air chambers. The rubber and the wire itself do not provide load bearing capacity, but are completed by the compressed air filled in the capsule. The hyperbolic industrial air spring is an excellent low-frequency vibration isolator, which relies on the pressure change of the compressed air in the rubber bag to achieve the required stiffness. At present, the hyperbolic industrial air spring is widely used in precision instruments, precision machinery and special equipment low frequency vibration isolation.

The shock absorption effect of the capsule air spring is far better than that of the traditional steel coil spring, buffer pad, etc. The upper and lower end covers of the air spring are connected by rubber air bags and compressed air, which can reduce the vibration of any frequency to 1Hz. In addition, due to the adjustable softness and hardness of the capsule air spring, it can be applied to shock absorption under various load conditions without replacing the shock absorber, and achieve a satisfactory shock absorption effect.

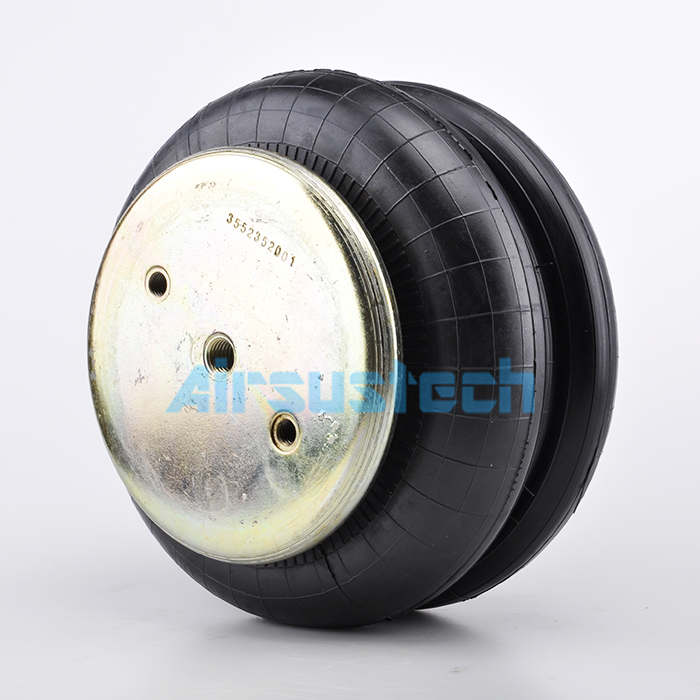

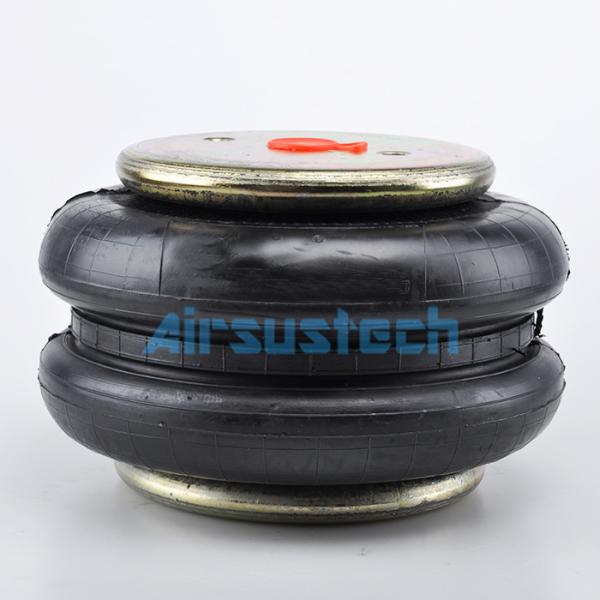

Airbag picture

Guangzhou Guomat Air Spring Co., Ltd. is located in Guangzhou, about 15min’s drive from Baiyun Airport. Our mainly products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles’ seat, luxurious car and industrial machine field.

AIRSUSTECH is another brand of Guangzhou Guomat Air Spring Co., Ltd.

AIRSUSTECH is focus on industrial air spring.

GUOMAT Factory gate：

Established in 2008, Our company covers 20,000㎡ and is located in Taihe Town Baiyun District. With the rapid development of our company, we are equipped with modernized workshop and advanced rubber air springs equipments now. We are the first company who started air spring business and has become one of the largest air spring manufacturing bases in China.

In 2017, we launched a collaboration with High Tech of US customers to customize the products of our customers and the logo of our customers. Every year, there are about 10,000 orders. In continuous cooperation, the products meet the international inspection standard ISO/TS16949:2009, and the customers are very satisfied with the products produced. This is our high recognition from American customers and also gives us Great motivation.

In 2018, we started cooperation with German GmbH, mainly industrial air springs, which are suitable for industrial equipment. We have successfully developed and produced the natural air-seal of the skin to reach the 700mm flanged air spring, the customer's annual demand is a few hundred.

With the development of business and demand for customers, our company introduced business with TomLog Corporation in 2010, our strategic cooperative partner in Taiwan. Then we developed air compressor program and air spring related business, in 2015, America Goodyear Corporation met with the transfer of shares in the North American plant, our company was granted with sale agent for air springs in China, providing more choice for our customers. Our company adopts the most advanced domestic air spring processing equipment and international production technology. Combined with unique production process, our company strictly execute international standards for production and spare no efforts to create the world-class products. We will endeavor to make air spring widely used at home and abroad, and let more and more customers to enjoy the best damping effect.
