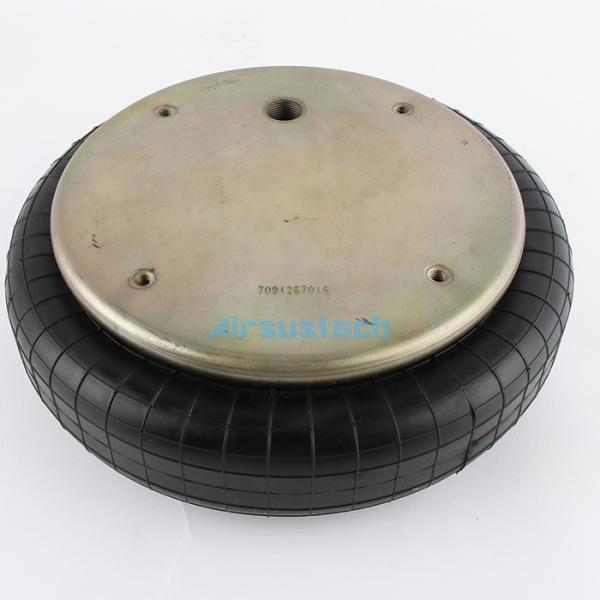

Firestone W01-M58-6371 W01-M58-6369 Metric Single Convoluted 113B1 Style Industrial Air Bags


Cross Reference

Blind nuts, 1/4 BSP, W01-M58-6371, W01 M58 6371, W01M586371,WO1-M58-6371, WO1 M58 6371, WO1M586371

Blind nuts, 3/4 BSP, W01-M58-6369, W01 M58 6369, W01M586369, WO1-M58-6369, WO1 M58 6369, WO1M586369

Specifications and Technical Parameters

113B1 Style AirSpring, Type 2 Bead Plate, (4) M8 Blind Nuts On 159MM Centers, 1/4" BSP Offset Port
Firestone 113-1 Style
Two ply Bellows
Blind nuts on top plate: 4pcs × M8×1.25
The screw center on top plate: 159mm
Blind nuts on bottom plate: 4pcs × M8×1.25
The screw center on bottom plate: 159mm
Top cover plate diameter: 287mm
Bottom cover plate diameter: 287mm
Max. OD at 7 bar: 404mm
Girdle hoop: Without
Bumper block/ Rubber bumper: No

Commonly used industrial air springs models

Air spring components

Air fitting: A tapped hole allowing for the spring to be fed from the air compressor
Nut/bolt/mount: The method for attaching the air spring to the component. Some air springs incorporate a bolt and air fitting combination device.
Bead plate: Crimped metal plate enclosing the spring and allowing attachment. This is typically forged steel, cast zinc alloy or cast aluminum.
Bellows: The physical, multi-layer material withholding the compressed gas. Usually made of neoprene or rubber.
Girdle: Only found in air springs of convoluted design, separating the bellows chambers.
Bumper: An optional layer of padding protecting the piston from damage if the air spring fails.

Application

Air springs can be used in various mechanical devices for cushioning, shock absorption, motion control or pressurization. Compared with cylinders or other elastic elements with the same function, the air spring has simple structure, reliable operation, no complicated parameter calculation and structural design, no seal leakage problem, convenient use and maintenance, and long service life. If the air spring is used as the buffer, the processing cost can be reduced and the processing accuracy can be guaranteed.

Paper and textile machine

Agricultural air spring

Power machinery

Electronic equipment

Instrumentation

Chemical machinery and other equipment

Airbag picture

Guangzhou Guomat Air Spring Co., Ltd. is located in Guangzhou, about 15min’s drive from Baiyun Airport. Our mainly products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles’ seat, luxurious car and industrial machine field.

AIRSUSTECH is another brand of Guangzhou Guomat Air Spring Co., Ltd.

AIRSUSTECH is focus on industrial air spring.

GUOMAT Factory gate：

Established in 2008, Our company covers 20,000㎡ and is located in Taihe Town Baiyun District. With the rapid development of our company, we are equipped with modernized workshop and advanced rubber air springs equipments now. We are the first company who started air spring business and has become one of the largest air spring manufacturing bases in China.

In 2017, we launched a collaboration with High Tech of US customers to customize the products of our customers and the logo of our customers. Every year, there are about 10,000 orders. In continuous cooperation, the products meet the international inspection standard ISO/TS16949:2009, and the customers are very satisfied with the products produced. This is our high recognition from American customers and also gives us Great motivation.

In 2018, we started cooperation with German GmbH, mainly industrial air springs, which are suitable for industrial equipment. We have successfully developed and produced the natural air-seal of the skin to reach the 700mm flanged air spring, the customer's annual demand is a few hundred.

With the development of business and demand for customers, our company introduced business with TomLog Corporation in 2010, our strategic cooperative partner in Taiwan. Then we developed air compressor program and air spring related business, in 2015, America Goodyear Corporation met with the transfer of shares in the North American plant, our company was granted with sale agent for air springs in China, providing more choice for our customers. Our company adopts the most advanced domestic air spring processing equipment and international production technology. Combined with unique production process, our company strictly execute international standards for production and spare no efforts to create the world-class products. We will endeavor to make air spring widely used at home and abroad, and let more and more customers to enjoy the best damping effect.
