    Height 220mm Triple Convoluted Air Bags Replace Firestone W01R584064 W01-R58-4064 DUNLOP PNEURIDE 14'' 1/2 X 2

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 14.5×2
    Certification : ISO/TS16949:2009
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    Height 220mm Triple Convoluted Air Bags Replace Firestone W01R584064 W01-R58-4064 DUNLOP PNEURIDE 14'' 1/2 X 2

    Firestone W01R584064 W01-R58-4064 Triple Convoluted Air Bags DUNLOP PNEURIDE 14'' 1/2 X 2


    Basic Information

    Model No.

    14 1/2×2, 14'' 1/2×2

    Product name

    air springs, air bag, air balloon, pneumatic springs, air suspesion, air spring assembly

    Convolutions

    Double

    Sample

    Available

    Condition

    100% New

    Application

    Industrial Machines Or Others

    Delivery time

    3-8 Working Days

    Shipping way

    By express, By sea, By air plane Or Others



    Specifications and Technical Parameters: 14 1/2×2

    Top cover plate bolts: 4pcs × M10

    Bottom plate bolts: 4pcs × M10

    Top plate diameter: 310mm

    Bottom plate: 310mm

    Rubber Bellow diameter:365mm

    Airbag minimum installation space: 400mm

    Height: 220mm

    Air inlet: 1/2

    Screw center distance: 282.5mm

    Girdle hoop: one piece


    Cross Reference


    FIRESTONE W01-R58-4064; W01 R58 4064; W01R584064; WO1-R58-4064; WO1 R58 4064; WO1R584064


    SMB/FRUEHAUF
    GIGANT 881205
    WEWELER USN 510010DX
    DUNLOP SP 257
    TROUILLET
    SAMRO

    DUNLOP PNEURIDE 14" 1/2 x 2

    DUNLOP SPRINGRIDE SP1556

    CONTITECH FD 614-26 DS; FD614-26DS; FD 614 26 DS

    NORGREN M/31142; M31142; M 31142

    PARKER 9109061



    Other 14'' 1/2 Model We could offer

    (1) 14 1/2 X 1

    Reference

    Firestone W01-R58-4063; W01 R58 4063; W01R584063; WO1-R58-4063; WO1 R58 4063; WO1R584063

    DUNLOP SP 1643; SP1643

    DUNLOP SPRINGRIDE SP1543

    CONTITECH FS 614-13 DS

    NORGREN M/31141

    PARKER 9109064

    Description

    Single Conolution

    1/2 BSP

    4pcs×M10×1.5



    (2) 14 1/2 X 2
    Reference
    Firestone W01-R58-4074; W01 R58 4074; W01R584074; WO1-R58-4074; WO1 R58 4074; WO1R584074
    FRUEHAUF J40108M08A05
    LOHR
    DUNLOP SP1988; SP 1988
    Description
    M22×1.5 On 85 RAD
    4pcs M10×1.5 bolts on to plate and bottom plate

    (3) 14 1/2 X 2
    Reference
    Firestone W01-R58-4075; W01 R58 4075; W01R584075; WO1-R58-4075; WO1 R58 4075; WO1R584075
    DUNLOP SP 257; SP257
    Description

    1/2 BSP Centered

    4pcs ×M10×1.5


    (4) 14 1/2 X 3

    Reference

    Firestone W01-R58-4065; W01 R58 4065; W01R584065; WO1-R58-4065; WO1 R58 4065; WO1R584065

    WEWELER USN 510018KD
    DUNLOP SP 1558

    CONTITECH FT 614-36 DS

    NORGREN M/31143

    PARKER 9109069

    Description

    1/2 BSP Centered air inlet

    4pcs ×M10×1.5 bolts

    2 PLY


    (4) 14 1/2 X 3

    Reference

    Firestone W01-R58-4100; W01 R58 4100; W01R584100; WO1-R58-4100; WO1 R58 4100; WO1R584100

    DUNLOP 14 1/2 X 3 4 PLY

    Description

    1/2 BSP Centered air inlet

    4pcs ×M10×1.5 bolts

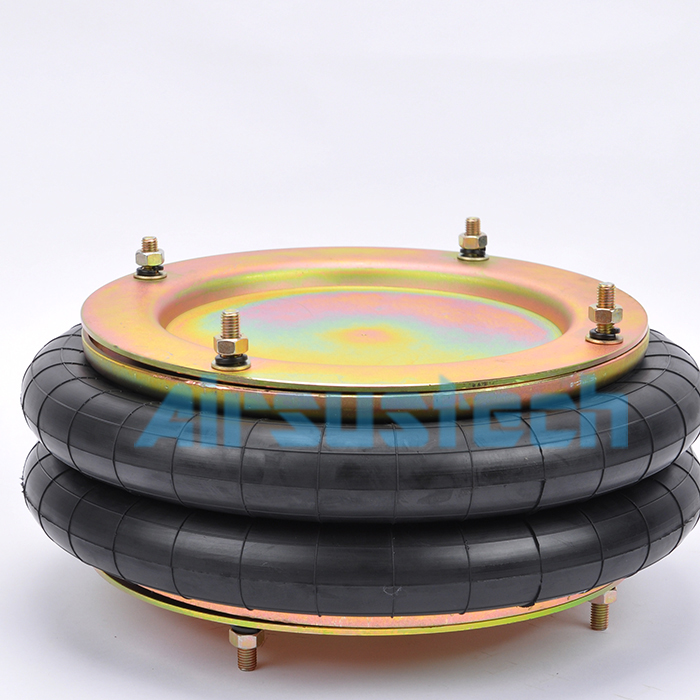

    The picture of 14 1/2×2 air spring/air bag/ air springs / air bags/ air pillow/ rubber bellow/ air suspension
