Wood Pilling Machines And Debarkers Industrial Air Springs G1/8 Rubber Single Convolution Bag

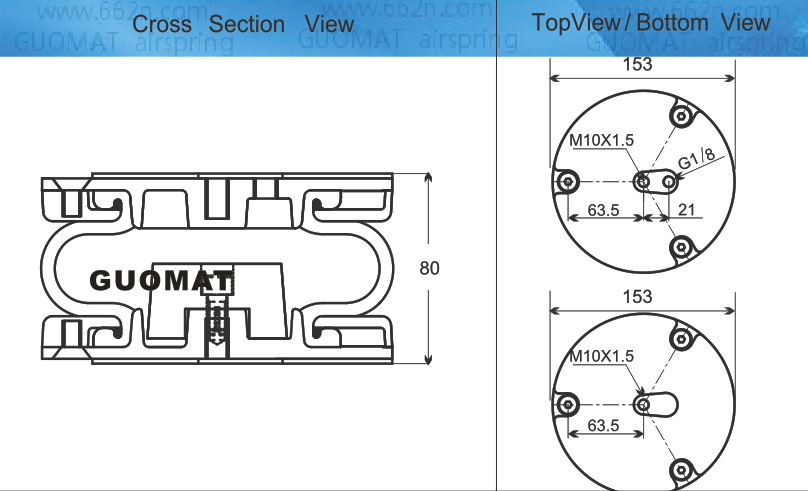

Specifications and Technical Parameters

Type: Two ply Bellows

Convolutions: Single

Top plate diameter: 153mm

Bottom plate diameter: 153mm

Mounting threads: M10× 1.5

Air inlet: G1/8

Girdle hoop/Belt loop: Without

Bumper Block: Without

Application: Industrial Machines Or Others

HS Code: 8708809000

Sample: Available

Packing: Strong cartons

Shipping ways: By express, By air, By sea, Or others

Air spring components

Air fitting: A tapped hole allowing for the spring to be fed from the air compressor
Nut/bolt/mount: The method for attaching the air spring to the component. Some air springs incorporate a bolt and air fitting combination device.
Bead plate: Crimped metal plate enclosing the spring and allowing attachment. This is typically forged steel, cast zinc alloy or cast aluminum.
Bellows: The physical, multi-layer material withholding the compressed gas. Usually made of neoprene or rubber.
Girdle: Only found in air springs of convoluted design, separating the bellows chambers.
Bumper: An optional layer of padding protecting the piston from damage if the air spring fails.

Air spring can be used in wood pilling machines and debarkers

The pneumatic air spring is used as an air actuator in order to move the blades and make the necessary strength to cut the bark of the wood, while it follows its path through the debarker. It can also be used in the following machines.

Presses

Air compressors

Centrifuges

Vibrating conveyors

Control hammers

Foundry machinery and textile machines

Optical and laser instruments

Integrated circuits

Ultra-precision machine tools and other equipment

Other common industrial air spring we could offer

Guangzhou Guomat Air Spring Co., Ltd. is located in Guangzhou, about 15min’s drive from Baiyun Airport. Our mainly products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles’ seat, luxurious car and industrial machine field.

AIRSUSTECH is another brand of Guangzhou Guomat Air Spring Co., Ltd.

AIRSUSTECH is focus on industrial air spring.

GUOMAT Factory gate：

Established in 2008, Our company covers 20,000㎡ and is located in Taihe Town Baiyun District. With the rapid development of our company, we are equipped with modernized workshop and advanced rubber air springs equipments now. We are the first company who started air spring business and has become one of the largest air spring manufacturing bases in China.

In 2017, we launched a collaboration with High Tech of US customers to customize the products of our customers and the logo of our customers. Every year, there are about 10,000 orders. In continuous cooperation, the products meet the international inspection standard ISO/TS16949:2009, and the customers are very satisfied with the products produced. This is our high recognition from American customers and also gives us Great motivation.

In 2018, we started cooperation with German GmbH, mainly industrial air springs, which are suitable for industrial equipment. We have successfully developed and produced the natural air-seal of the skin to reach the 700mm flanged air spring, the customer's annual demand is a few hundred.

With the development of business and demand for customers, our company introduced business with TomLog Corporation in 2010, our strategic cooperative partner in Taiwan. Then we developed air compressor program and air spring related business, in 2015, America Goodyear Corporation met with the transfer of shares in the North American plant, our company was granted with sale agent for air springs in China, providing more choice for our customers. Our company adopts the most advanced domestic air spring processing equipment and international production technology. Combined with unique production process, our company strictly execute international standards for production and spare no efforts to create the world-class products. We will endeavor to make air spring widely used at home and abroad, and let more and more customers to enjoy the best damping effect.
