Air Spring W01-358-0100 W013580100 Firestone Single Convoluted Rubber Bellows Only Contitech FS 100-10 VP Air Bag

Cross Reference

Firestone Style 110, 110B
Air spring supplier/competitor: Firestone
Supplier//competitor: W01-358-0100; W01 358 0100;W013580100; WO1-358-0100; WO1 358 0100; WO13580100

Air spring supplier/competitor: Contitech/ Continental
Supplier//competitor: FS 100-10 S VP; FS 100-10; FS100-10VP; FS10010VP; FS 100 10 VP

Order number: 63457

Specifications and Technical Parameters

Mfr Part # W013580100
Part # Variations: W01-358-0100, WO13580100, WO1-358-0100
Additional Info: WO1-358-0100, 110B Style AirSpring, Rubber Bellows Only

Other Models replacements we could offer and cross reference

Rubber Bellow Only 115 W01-358-0118

Crimped, 1/4 BSP, Blind nuts 115 W01-M58-6375

Crimped, 3/4 BSP, Blind nuts 115 W01-M58-6374

Crimped, 1/4 NPT, Blind nuts 115 W01-358-7460

Crimped, 3/4 NPT, Blind nuts 115 W01-358-7465

Countersunk Bead Rings 115 W01-M58-6977

Rubber Bellow Only FS 200-10 S VP 72850

Crimped, 1/4 NPT, Blind nuts FS 200-10 CI 1/4 NPT 63530

Crimped, 3/4 NPT, Blind nuts FS 200-10 CI 3/4 NPT 63531

Crimped, 1/4 BSP, Blind nuts FS 200-10 CI G 1/4 60030

Crimped, 3/4 BSP, Blind nuts FS 200-10 CI G 3/4 2681045000

Applications

Industrial actuator
Vibration isolator
Press machines
Conveyors
Lifts
Pakaging machines

Advantages

1. The air spring can adjust the stiffness and load capacity
The air spring has nonlinear characteristics, its stiffness and load-bearing capacity can be adjusted, and its stiffness changes with the change of the load. The characteristic curve of the air spring can be ideally designed according to actual needs, so that it has a lower stiffness value near the rated load, and enables the air suspension to obtain a lower natural frequency, so it works softly.

2. The air spring can change the height

The height of the air spring can be changed or maintained by using the height valve. The air pressure of the compressed gas can be automatically adjusted with the change of load and road conditions, regardless of full load or no load, to ensure that the height of the vehicle body does not change with the change of load, which greatly improves the ride comfort. Elevate the body to improve the passability of the vehicle on extremely poor roads, lower the body to facilitate people or goods to get on and off, and improve the safety of high-speed vehicles.
3. The air spring has higher vibration absorption and noise reduction capabilities
The air spring has higher shock absorption and noise reduction (no friction, instant response), which can not only improve the comfort of commercial vehicles, but also have a certain protective effect on the vehicle itself and the transported goods

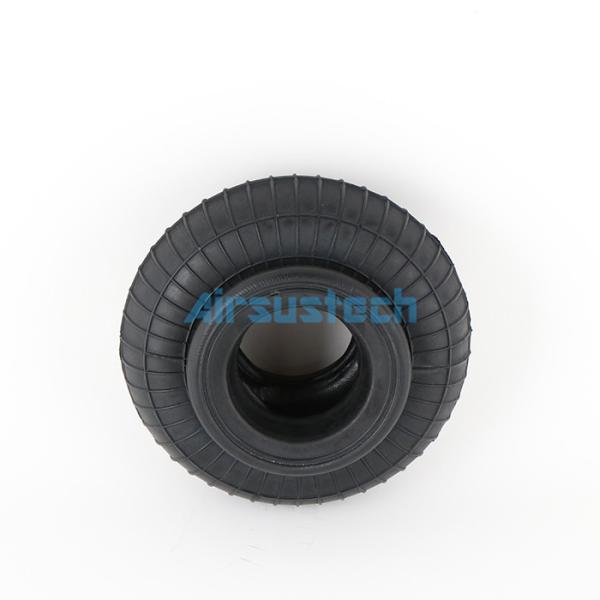

The picture of AIRSUSTECH Air Bag / air spring / air balloon/ air shocks/ air spring assembly

Guangzhou Guomat Air Spring Co., Ltd. is located in Guangzhou, about 15min’s drive from Baiyun Airport. Our mainly products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles’ seat, luxurious car and industrial machine field.

AIRSUSTECH is another brand of Guangzhou Guomat Air Spring Co., Ltd.

AIRSUSTECH is focus on industrial air spring.

GUOMAT Factory gate：

Established in 2008, Our company covers 20,000㎡ and is located in Taihe Town Baiyun District. With the rapid development of our company, we are equipped with modernized workshop and advanced rubber air springs equipments now. We are the first company who started air spring business and has become one of the largest air spring manufacturing bases in China.

In 2017, we launched a collaboration with High Tech of US customers to customize the products of our customers and the logo of our customers. Every year, there are about 10,000 orders. In continuous cooperation, the products meet the international inspection standard ISO/TS16949:2009, and the customers are very satisfied with the products produced. This is our high recognition from American customers and also gives us Great motivation.

In 2018, we started cooperation with German GmbH, mainly industrial air springs, which are suitable for industrial equipment. We have successfully developed and produced the natural air-seal of the skin to reach the 700mm flanged air spring, the customer's annual demand is a few hundred.

With the development of business and demand for customers, our company introduced business with TomLog Corporation in 2010, our strategic cooperative partner in Taiwan. Then we developed air compressor program and air spring related business, in 2015, America Goodyear Corporation met with the transfer of shares in the North American plant, our company was granted with sale agent for air springs in China, providing more choice for our customers. Our company adopts the most advanced domestic air spring processing equipment and international production technology. Combined with unique production process, our company strictly execute international standards for production and spare no efforts to create the world-class products. We will endeavor to make air spring widely used at home and abroad, and let more and more customers to enjoy the best damping effect.
