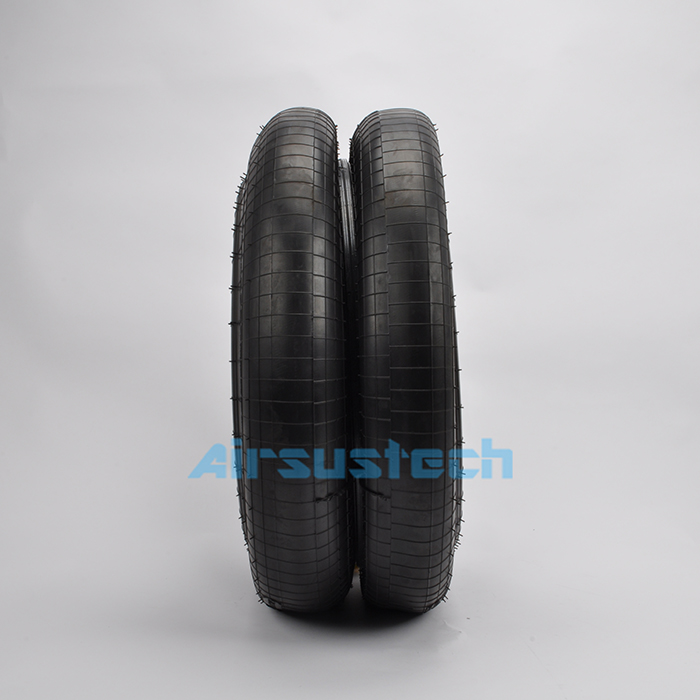

Goodyear Airlift Bag Replacement 556 2 3 8077 Double Convoluted Rubber Air Springs Bellows


Basic Info.

Product name: Air spring, air bag, air shocks, air balloon, air suspension spring, pneumatic cushion, rubber bellow
Sample: Available
Condition: 100% Tested
Material: Rubber
HS code: 8708809000
Quality: High-quality
Warranty: 1 year
Delivery time: 3-8 Working days
Payment ways: T/T, Western Union, Paypal or Others
Shipping way: By express, by air, by sea or others
Ship from: Guangzhou, Guangdong, China
Ship to: All over the world

Cross Reference

Goodyear number: 556 2 3 8077

Goodyear number: 556238077

Goodyear number: 556-2-3-8077

Specifications and Technical Parameters

Air spring components

Air fitting: A tapped hole allowing for the spring to be fed from the air compressor
Nut/bolt/mount: The method for attaching the air spring to the component. Some air springs incorporate a bolt and air fitting combination device.
Bead plate: Crimped metal plate enclosing the spring and allowing attachment. This is typically forged steel, cast zinc alloy or cast aluminum.
Bellows: The physical, multi-layer material withholding the compressed gas. Usually made of neoprene or rubber.
Girdle: Only found in air springs of convoluted design, separating the bellows chambers.
Bumper: An optional layer of padding protecting the piston from damage if the air spring fails.

Characteristics of rubber air spring

Low natural frequency;
low stiffness;
good damping;
Height adjustable.
When the air spring is in use, it must be equipped with an air source to ensure the stability of its internal pressure.

Production Process

1. Rubber mixing
2. Cord calendering

The calendering process is the process of using a calender to cover the surface of the textile with the compounded rubber material and penetrate into the gaps in the fabric, so that the rubber material and the textile are closely combined to form a rubber cord.
3. Film calendering

The film required for air spring production is generally rolled by a three-roller calender. The heat-smelted rubber is pressed into a thin sheet with a certain thickness by three rolls, and rolled into a roll after being cooled by the conveyor belt. The width of the film is generally on the roller. The width of the cutting edge is fixed, and the edge is no longer cut when forming.
4. Rubber cord cutting

It is to cut the rubber cord fabric into single pieces according to a certain angle and width, and then curl the joints into rolls for molding. There are two ways to joint the curtain, one is the automatic joint of the joint machine, and the other is the manual joint.
5. Air spring forming
The process of combining rubber parts and other parts into semi-finished products according to design requirements on special equipment and forming drums.

Guangzhou Guomat Air Spring Co., Ltd. is located in Guangzhou, about 15min’s drive from Baiyun Airport. Our mainly products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles’ seat, luxurious car and industrial machine field.

AIRSUSTECH is another brand of Guangzhou Guomat Air Spring Co., Ltd.

AIRSUSTECH is focus on industrial air spring.

GUOMAT Factory gate：

Established in 2008, Our company covers 20,000㎡ and is located in Taihe Town Baiyun District. With the rapid development of our company, we are equipped with modernized workshop and advanced rubber air springs equipments now. We are the first company who started air spring business and has become one of the largest air spring manufacturing bases in China.

In 2017, we launched a collaboration with High Tech of US customers to customize the products of our customers and the logo of our customers. Every year, there are about 10,000 orders. In continuous cooperation, the products meet the international inspection standard ISO/TS16949:2009, and the customers are very satisfied with the products produced. This is our high recognition from American customers and also gives us Great motivation.

In 2018, we started cooperation with German GmbH, mainly industrial air springs, which are suitable for industrial equipment. We have successfully developed and produced the natural air-seal of the skin to reach the 700mm flanged air spring, the customer's annual demand is a few hundred.

With the development of business and demand for customers, our company introduced business with TomLog Corporation in 2010, our strategic cooperative partner in Taiwan. Then we developed air compressor program and air spring related business, in 2015, America Goodyear Corporation met with the transfer of shares in the North American plant, our company was granted with sale agent for air springs in China, providing more choice for our customers. Our company adopts the most advanced domestic air spring processing equipment and international production technology. Combined with unique production process, our company strictly execute international standards for production and spare no efforts to create the world-class products. We will endeavor to make air spring widely used at home and abroad, and let more and more customers to enjoy the best damping effect.
