    Triple Convoluted Industrial Air Springs Firestone W01-358-8017 GRANNING 15673

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 3B8017
    Certification : ISO/TS16949:2009
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    Triple Convoluted Industrial Air Springs Firestone W01-358-8017 GRANNING 15673

    Firestone W01-358-8017 GRANNING 15673 Triple Convoluted Industrial Air Springs



    Cross Reference

    Firestone Style 38D; 38
    Air spring supplier/competitor: Firestone
    Supplier//competitor: W01-358-8017;W01 358 8017; W013588017; WO1-358-8017;WO1 358 8017; WO13588017


    Air spring supplier/competitor:GRANNING
    Supplier//competitor: 15673


    DENNIS EAGLE



    Specifications and Technical Parameters

    Convolution: Triple

    Industrial bellow actuator

    2-ply standard cord
    Air spring complete

    Material: Rubber and steel

    2pcs mounting threads on top plate

    2pcs bolts on bottom plate

    2pcs girdle hoop/belt loop

    With bumper block/bumper

    Product name: Airbag, airbag cylinder, air spring assembly, air bellow, rubber bellow, air balloon, air pillow, air shocks


    Other firestone style and assembly number reference


    Firestone style number

    Firestone assembly number

    116-1

    W01-M58-6170

    113-1

    W01-M58-6171

    117

    W01-M58-6175

    117

    W01-M58-6176

    124

    W01-M58-6181

    124

    W01-M58-6182

    20-2

    W01-M58-6183

    274 (formerly 20)

    W01-M58-6185

    274 (formerly 20)

    W01-M58-6186

    274 (formerly 20)

    W01-M58-6187

    274 (formerly 20)

    W01-M58-6188

    202

    W01-M58-6190

    202

    W01-M58-6192

    20-2

    W01-M58-6194

    22

    W01-M58-6200

    22

    W01-M58-6201

    210

    W01-M58-6210

    210

    W01-M58-6212

    26

    W01-M58-6353

    113-1

    W01-M58-6369

    19

    W01-M58-6372

    19

    W01-M58-6373

    115

    W01-M58-6374

    115

    W01-M58-6375

    115

    W01-M58-6376

    21-2

    W01-M58-6377

    21-2

    W01-M58-6378


    How Air Springs Work


    When the rubber air spring works, the inner cavity is filled with compressed air to form a compressed air column. As the vibration load increases, the height of the spring decreases, the volume of the inner cavity decreases, the stiffness of the spring increases, the effective bearing area of the air column in the inner cavity increases, and the bearing capacity of the spring increases at this time. When the vibration load decreases, the height of the spring increases, the volume of the inner cavity increases, the stiffness of the spring decreases, the effective bearing area of the air column in the inner cavity decreases, and the bearing capacity of the spring decreases at this time. In this way, within the effective stroke of the air spring, the height, inner cavity volume, and bearing capacity of the air spring have a smooth and flexible transmission with the increase and decrease of the vibration load, and the efficient control of the amplitude and vibration load. It is also possible to adjust the stiffness and bearing capacity of the spring by increasing or decreasing the amount of inflation, and an auxiliary air chamber can also be attached to realize self-control adjustment.

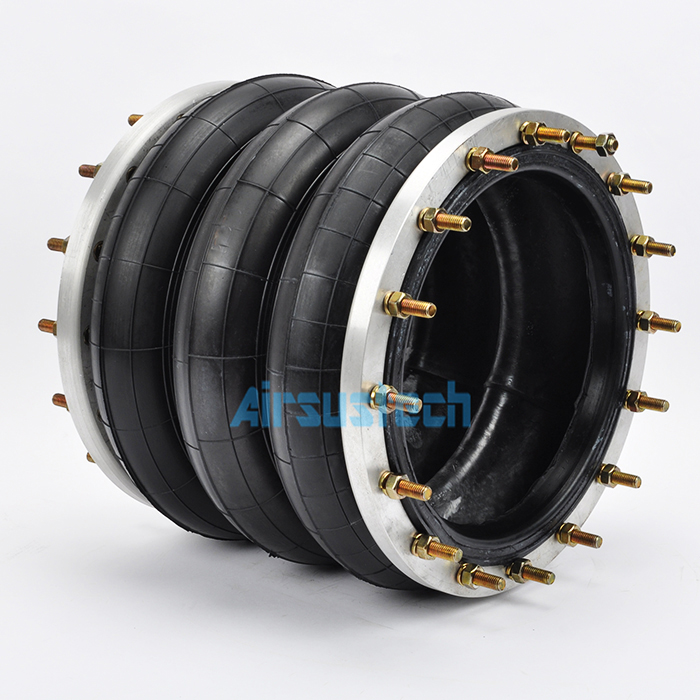

    The picture of AIRSUSTECH Air Bag / air spring / air balloon/ air shocks/ air spring assembly
