    Industrial Rubber Air Spring 4 Screws DUNLOP 12''×2 With Flange For Level Platforms

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 12×2
    Certification : ISO/TS16949:2009
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    Industrial Rubber Air Spring 4 Screws DUNLOP 12''×2 With Flange For Level Platforms

    4 Screws DUNLOP 12''×2 With Flange Industrial Rubber Air Spring For Level Platforms


    Cross Reference


    Mode No.: 12×2

    Type: Air Spring Assembly

    Convolutions: Double

    Sample: Available

    Delivery time: 3-8 Working days

    Shipping way: By sea, By train, By express Or Others


    Specification and Technical Parameters: 12×2


    1. Top plate mounting threads: 4pcs × M10

    2. Bottom plate mounting threads: 4pcs × M10

    3. Air fittings: G1/2

    4. Bumper Block: Without

    5. Girdle ring: 1 piece


    Other Model


    DUNLOP
    Ref. Number
    [inches]
    Dimensions of the Moulding
    in the Mould [mm]
    Air spring Body Height
    [mm]
    Diameter
    [mm]
    (Max Outside dimension of the body)
    Effective
    Surface
    [cm2]
    Outside dimension of the bodyBody heightInside body diameter

    Hstat

    Static (assembling) height of the body

    HminHmax
    2 3/4 x 170.041.035.76050707823
    2 3/4 x 270.068.035.792651107825.5
    2 3/4 x 370.095.035.7119801457823
    4 1/2 x 1114.050.052.065459012565
    4 1/2 x 2114.090.052.01006514512567
    4 1/2 x 3114.0130.052.014510020012567
    6 x 1152.569.875.68058108168135
    6 x 2152.5127.075.612073170168140
    6 x 3152.5184.275.6180105255168140
    8 x 1203.276.299.59047120230200
    8 x 2203.2139.799.515072225230220
    8 x 3203.2203.299.5210115330230180
    9 1/4 x 2235.0152.4112.516070240260272
    10 x 1254.089.0125.59550135280350
    10 x 2254.0165.3125.516070240280355
    10 x 3254.0241.6125.5235100365280350
    12 x 1304.889.0181.09550145330510
    12 x 2304.8165.3181.016074240330510
    12 x 3304.8241.6181.0222100430330510
    14 1/2 x 1368.3101.6232.010547165395750
    14 1/2 x 2368.3190.5232.018070280395760
    14 1/2 x 3368.3279.4232.0280100476395800
    16 x 1406.4101.6232.010550200430850
    16 x 2406.4190.5232.018077320430950
    16 x 3406.4279.4232.0280125500430850
    21 1/2 x 2546.1191.0408.5200903905701950

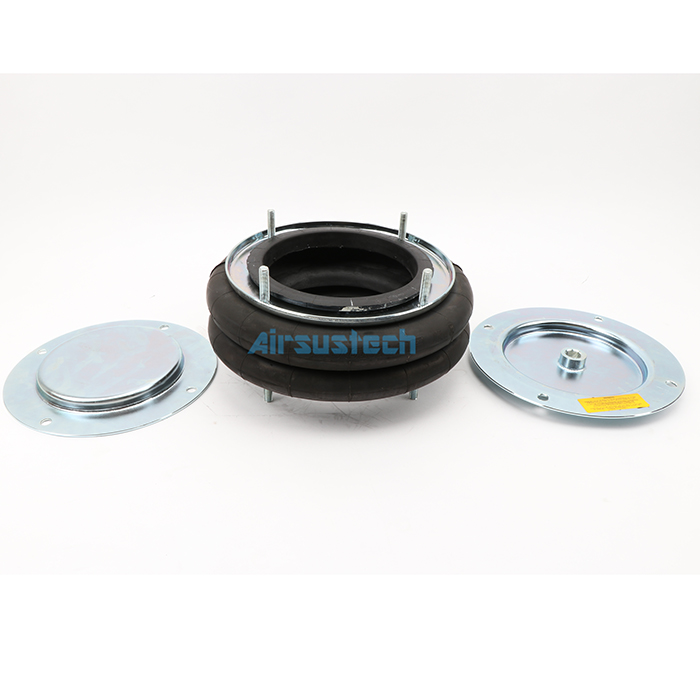

    The related picture of DUNLOP 12×2 air spring/air shocks/air spring assembly/ air bag
