    FS 200-10 CI G1/4 OS Contitech Single Convoluted Air Spring For Quick Lock Device

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 1B20010-1/4
    Certification : ISO/TS16949:2009
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    FS 200-10 CI G1/4 OS Contitech Single Convoluted Air Spring For Quick Lock Device

    Industrial Air Spring FS 200-10 CI G1/4 OS Contitech Replacement Single Convoluted For Quick Lock Device


    Basic Info.


    Type: Air Spring Assembly

    Style: Single Bellow

    Brand: Netural Or GUOMAT

    Delivery time: 3-8 Working days

    Sample : Available

    HS Code: 8708809000

    Port: Huangpu, Guangzhou

    Shipping way: By express, By sea, By train Or others



    Original Equipment


    Contitech FS 200-10 CI G 1/4 OS

    Contitech FS200-10CIG 1/4OS

    Contitech FS 200-10

    Contitech FS200-10

    Contitech FS 200 10

    Contitech FS200 10

    Contitech FS 20010

    Contitech FS20010


    Specifications and Detailed Technical Parameters:AIRSUSTECH 1B20010-1/4


    Blind nuts on top plate2pcs×M10×1.5
    The screw center distance on top plate89mm
    Blind nuts on bottom plate2pcs×M10×1.5
    The screw center distance on bottom plate89mm
    Air fittingsG1/4, offset, 44.5mm
    Rubber bellow diameter220mm
    Height110mm
    Top cover plate diameter160mm
    Bottom cover plate diameter160mm
    Bumper/Bumper blockWithout
    Girdle hoopWithout

    Rubber actuators, compared with traditional products (rigid actuators, spring...) offer numerous advantages such as
    - Flexibility (no angle or alignment problem),
    - Compactness,
    - Power / price ratio,
    - No maintenance
    or lubrication required,
    - Durability,
    - Reliability,
    - Resistance to aggressive or hot conditions.


    Application


    Clamp device

    Table lifter


    Bumper and actuator

    Level platforms

    Web tensioning device

    Quick lock device


    Packing details


    Net weight: 2.778kg

    Gross weight: 8.714kg

    Box weight: 0.38kg

    Box size: 24*24*24cm

    Packing quantity: 3pcs

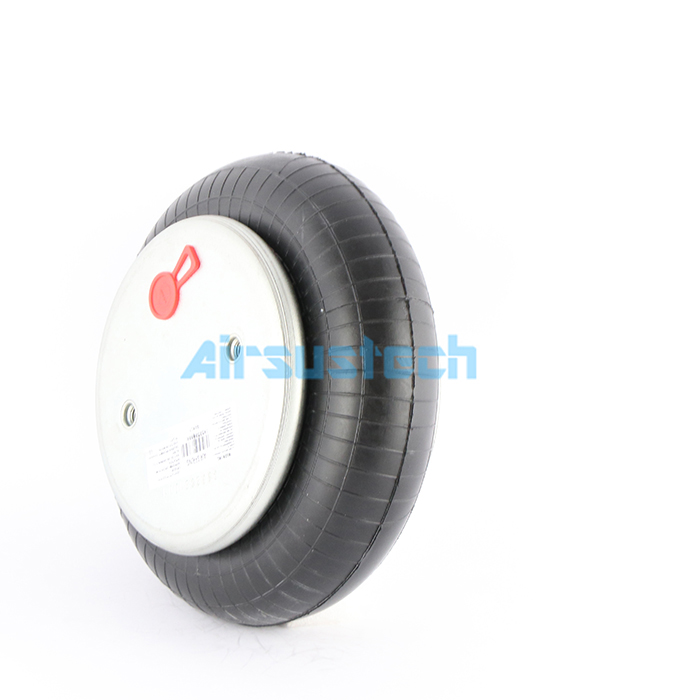

    The photos of 1B20010-1/4
