    Industrial Suspension Air Springs 2B188168 Dual Convoluted 4pcs M8 Blind Nuts

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 2B188168
    Certification : ISO/TS16949:2009
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    Industrial Suspension Air Springs 2B188168 Dual Convoluted 4pcs M8 Blind Nuts

    AIRSUSTECH Air Bag 2B188168 Double Convoluted 4pcs M8 Blind Nuts Industrial Suspension Air Springs

    2B188168 Specification and Technical Parameters


    Nut/Blind nuts

    Top plate screw

    4pcs × M8×1.5

    Bottom plate screw

    4pcs × M8×1.5

    Cover plate

    Top plate

    135mm

    Bottom plate

    135mm

    Convolution number

    2

    Rubber Bellow Natural Diameter

    190mm

    Height

    Natural Height

    168mm

    Minimum compression

    80mm

    Safe elongation

    195mm

    Full stroke115mm
    Bumper blockWithout
    Girdle hoop2 pieces

    Cross Reference


    Pirelli: T2086660
    ContiTech: 603 N; 603N
    ContiTech:FD 120-17 ; FD120-17 ; FD12017

    Goodyear:2B7-540
    Goodyear:2B7540
    Goodyear:2B7 540
    Goodyear:578-92-3-202
    Goodyear:578 92 3 202
    Goodyear:578923202
    Firestone: 0142
    Firestone:W01-358-0142
    Firestone:W01 358 0142
    Firestone:W013580142

    PHOENIX: 2B O7 R

    AIRKRAFT: 114050

    BOSCH: 822419042

    DUNLOP (FR): SO 8201

    FESTO: EB-215-155

    NORGREN: PM/31082 (8x2)

    PIRELLI: T26 84181

    TAURUS: KF 218

    WEFORMA : WBZ 300-E1

    AIRKRAFT: 113053


    Application


    Chassis dynamometer lift, car speedometer test tygas, Leather pull software, Shock softening machine, jumping mouse, Calender, Precision, Instrument Test Field, Press roll, Web Assembly Machine, Corrective Airbag, press machine, Air compressor, centrifuge, vibrating conveyor, trampoline, High frequency vibration table, belt tensioner, Tire changer, slide out, Aluminum Machinery, Vibrating screen, vibrator, stamping airbag, forging machinery, winding packaging machine airbag


    About Air Spirng


    1. Air fitting: A tapped hole allowing for the spring to be fed from the air compressor
    2. Nut/bolt/mount: The method for attaching the air spring to the component. Some air springs incorporate a bolt and air fitting combination device.
    3. Bead plate: Crimped metal plate enclosing the spring and allowing attachment. This is typically forged steel, cast zinc alloy or cast aluminum.
    4. Bellows: The physical, multi-layer material withholding the compressed gas. Usually made of neoprene or rubber.
    5. Girdle/Girdle hoop: Only found in air springs of convoluted design, separating the bellows chambers.
    6. Bumper: An optional layer of padding protecting the piston from damage if the air spring fails.

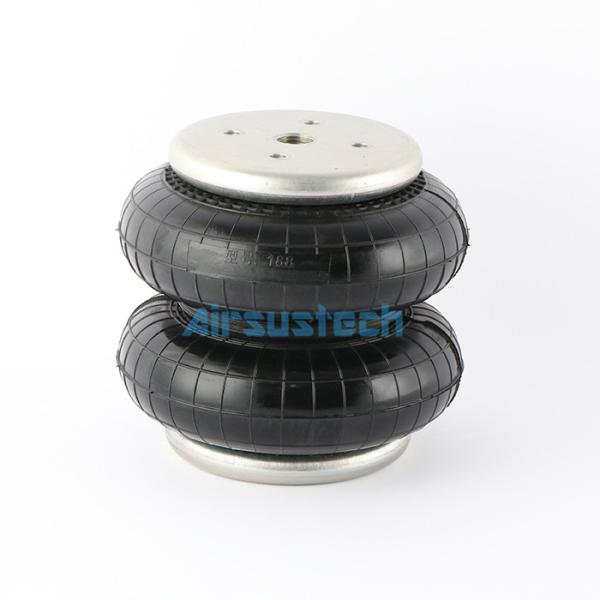

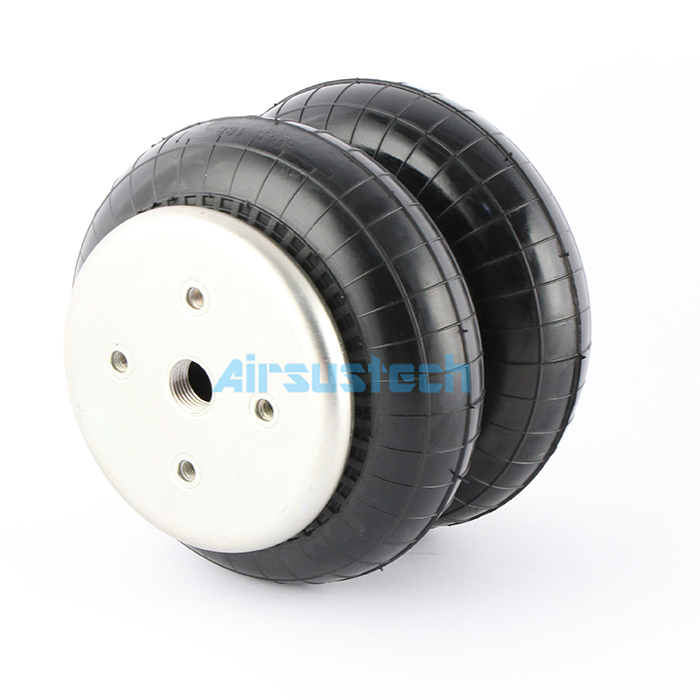

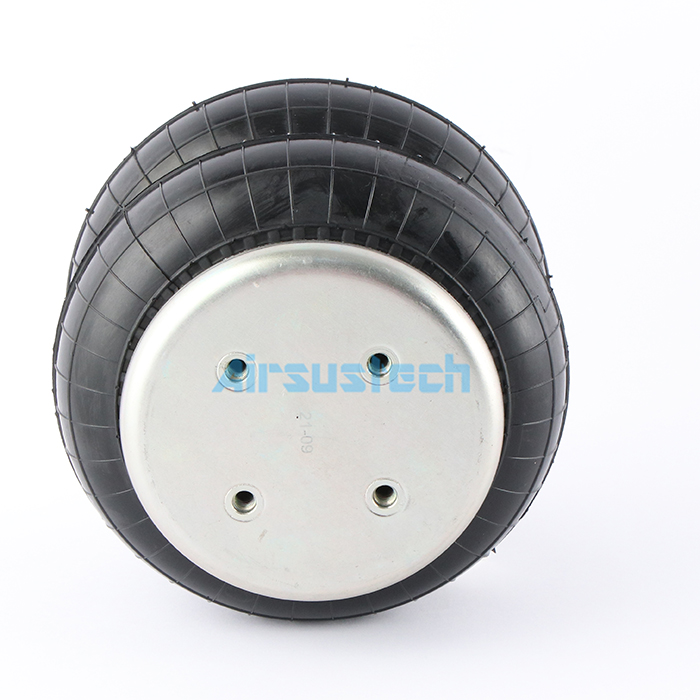

    The related picture of 2B188168 air spring/air shocks/air spring assembly/air bag
