    FD 200-22 524 CONTI W01-358-7795 Firestone Air Suspension Springs For Irrigation Systems

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 2B7795
    Certification : ISO/TS16949:2009
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    FD 200-22 524 CONTI W01-358-7795 Firestone Air Suspension Springs For Irrigation Systems

    FD 200-22 524 CONTI W01-358-7795 Firestone Double Convoluted Air Suspension Industrial Springs For Irrigation Systems

    Basic Informatoion

    Guomat Model No.

    2B7795

    Convolutions

    Double Convoluted

    Sample

    Available

    HS Code

    8708809000

    Style

    Air Spring Complete

    Ship from

    Guangzhou, China

    Ship to

    Worldwide

    Shipping way

    By sea, by train, by express or others



    2B7795 Specifications and Technical Parameters

    1. Mounting threads on Top plate Qty: 1pc
    2. Bottom cover plate screw (nut) teeth Qty: 2pcs× 3/8-16UNC

    The screw center distance: 89mm
    3. Top cover plate diameter: 160mm

    4. Bottom cover plate diameter: 160mm
    5. Min Height: 81mm

    6. Max. Height: 274mm
    7. Bumper block: Without
    8. Belt loop/belt loop with belt loop: with one belt loop

    Cross Reference

    Firestone Style 20F
    Firestone: W01-358-7795; W01 358 7795; W013587795; WO1-358-7795; WO1 358 7795; WO13587795
    Contitech: FD 200-22 524; FD 200 22 524; FD 20022524; FD 200-22524; FD200-22 524; FD200-22524; FD20022524
    Goodyear: 2B10-226; 2B10 226; 2B10226
    Goodyear Bellow number: 578923250; 578 92 3 250; 578-92-3-250
    Triangle: 6395/4524
    Hendrickson: S14486 / 003317
    Hendrickson Aux. (Paralift,Paralift Ultra)
    Watson&Chalin: AS-01461G; AS 01461G; AS01461G
    MERCEDES: 942 320 60 21; 9423206021
    HENDRICKSON: HS 508264C; HS508264C



    Feature

    Require little to no maintenance
    Pressure tested for quality assurance
    Increase towing and hauling capabilities
    Replace worn out oem air bags
    Increase life of other suspension components



    Application

    Irrigation Systems air spring
    Papermaking equipment airbags
    Straightener airbags
    Paper machine net blanket straightener airbags
    Calender airbags
    Press airbags
    Scraper wire airbags,
    Dehydrator airbags
    Press roll airbags
    Air-drying tank airbags
    Paper sizing Airbags for presses
    Airbags for gluing machines
    Environmental protection equipment airbag
    Waste incineration equipment air bag
    Mining equipment air bag

    Control hammer shock absorber airbag
    Cast mechanical shock absorber airbag
    Optical and Laser Instrument Airbags
    Integrated Circuit Equipment Airbag



    Packing Details

    Net weight: 3.586KG
    Gross weight: 3.966KG
    Box weight: 0.38KG
    Box size: 24*24*24cm
    Packing quantity: 1pcs

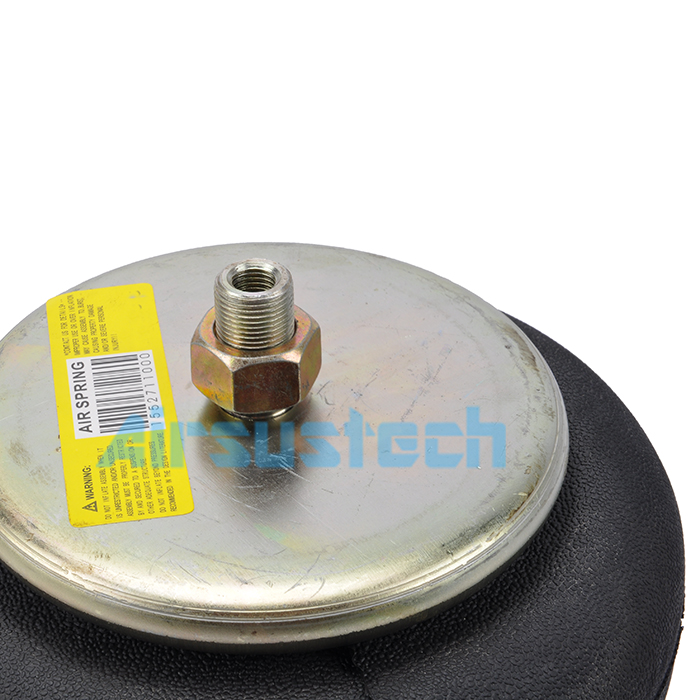

    The actual picture of AIRSUSTECH Air Bag 2B7795
