Product Description:
One of the key features of air actuators is their smooth and
comfortable ride even when carrying heavy loads. This is thanks to
the advanced engineering and precision manufacturing of our air
springs.
Air actuators are also designed to be easy to install and maintain.
With a maximum height of 290mm and a minimum height of 100mm, this
air suspension bag can be easily adapted to a variety of vehicles
and applications. Whether you're looking to improve the ride
quality of your truck, trailer or other heavy-duty vehicle,
ContiTech air actuators are a great choice.
Features:
- Product Name: Contitech Air Spring
- Pressure: 2 Bar - 8 Bar
- Trademark: Airsustech
- Maximum Pressure: 8 Bar
- Cross Reference: Contitech FT 76-20 DI CR
- Convolution Number: Triple
- Product Type: Contitech Air Actuators
- Application: Pneumatic Applications Spring
- Material: Rubber Air Spring

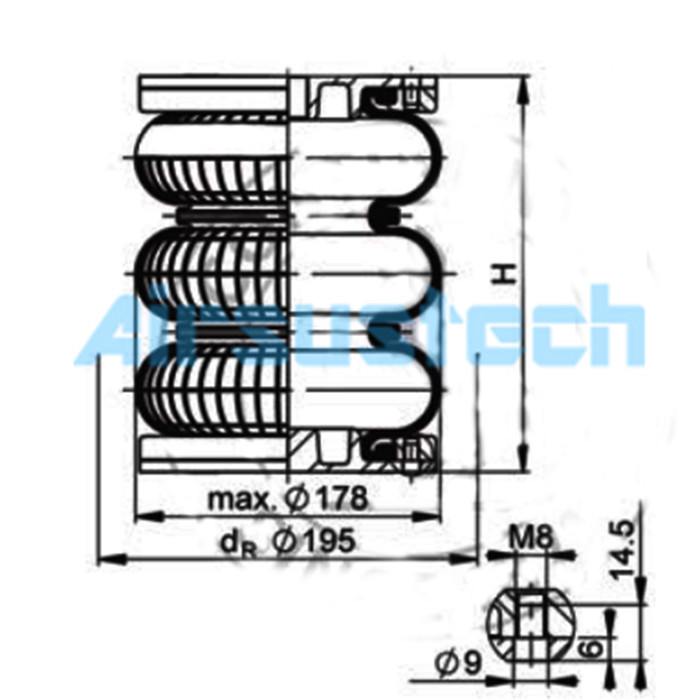

Technical Parameters:
| Max height | 290mm |
| Min height | 100mm |
| Cover plate diameter | 152.5mm |
| Threaded hole | M8 |
| Air inlet | G1/2 |
| Center distance between threaded holes | 127mm |
| The rubber bellow max outer diameter | 178mm |
Applications:
Whether you are in the trucking, bus, or automotive industry, the
AIRSUSTECH Air Spring is an excellent choice for your needs. It is
designed to provide excellent ride quality, reliable performance,
and easy installation.
With its compact design and easy-to-use connection parts, the
AIRSUSTECH Air Spring is an ideal choice for a wide range of
applications. It is suitable for use in a variety of scenarios,
including but not limited to:
- Heavy-duty trucks
- Buses and coaches
- Trailers and semi-trailers
- Industrial machinery
- Agricultural equipment
Packing and Shipping:
This Air Spring product comes in a sturdy packaging to ensure safe
delivery to your doorstep. The product is carefully sealed to
prevent any damage during shipping.
Our shipping process is fast and efficient. We use reliable
carriers to deliver the product to you as quickly as possible. You
can expect your order to arrive within 3-5 business days.
If you have any concerns or questions about your order, please
contact our customer service team. We are always happy to help.
Pneumatic application – static characteristic values:
Force F [kN]
| Pressure p | bar | 3 | 4 | 5 | 6 | 7 | 8 | Vol.V[l] |
| Height H [mm] | 260 | 1.75 | 2.46 | 3.19 | 3.95 | 4.74 | 5.56 | 3.2 |
| 220 | 2.69 | 3.65 | 4.63 | 5.64 | 6.67 | 7.74 | 2.9 |
| 180 | 3.51 | 4.71 | 5.93 | 7.17 | 8.43 | 9.71 | 2.4 |
| 140 | 4.27 | 5.69 | 7.12 | 8.6 | 10.1 | 11.7 | 1.8 |
| 100 | 5.55 | 7.32 | 9.1 | 10.9 | 12.8 | 14.7 | 1.1 |
