Product Description:

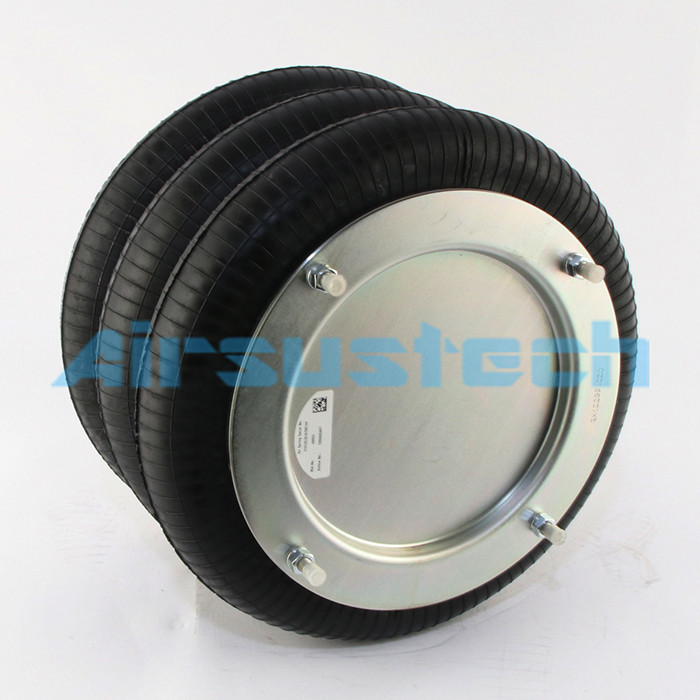

The Contitech Air Bags are made with a triple convolution design
which helps in better absorption of shocks and vibrations. This
design also helps in maintaining the height of the vehicle, which
is essential for stability and control. These air bags are suitable
for a wide range of applications, including trucks, trailers,
buses, and other heavy-duty vehicles.
The Contitech Air Bags are capable of handling a maximum pressure
of 8 Bar, which is more than enough for most applications. The air
bags are made from high-quality materials which make them durable
and long-lasting. These air bags are rigorously tested to ensure
that they meet the highest quality standards.
Contitech is a leading manufacturer of air springs and air
suspension systems. The Contitech Air Bags are part of the FT 76-20
DS series which is known for its high-quality and reliability.
These air bags come with a quality assurance of 12 months which
gives the customers peace of mind.
Features:
- Product Name: Contitech Air Spring
- Maximum Pressure: 8 Bar
- Mounting Type: With Removable Connecting Parts
- Shock Absorber Type: Gas-filled
- Distance of Two Bolts: 127.0 Mm
- Quality Assurance: 12 Months
- Product Attributes: Air Suspension Bag, Air Actuators for Pneumatic
Applications, Airbag Spring Assembly
Technical Parameters:
Air Spring Options:
- Air spring FT 76-20 DS CR
- Air spring FT76-20 DS CR
- Air spring FT76-20 DSCR
- Air spring FT 76-20
- Air spring FT76-20
Specifications:
- Maximum stroke: 190 mm
- Maximum load: 11.7 kN
- Maximum diameter: 178 mm
- Maximum height: 285 mm
- Minimum height: 95 mm
- Maximum recommended operating height: 255 mm
- Plate diameter: 153.5 mm
- Mounting bolts: 4x M10
- Air inlet: G1/2"
- Material: CR
- Temperature range: -40°C / +85°C
- Style: FT76
OEM Numbers:
| CONTITECH | FT 76-20 DS / FT76-20 |
| FIRESTONE | W01-R58-4095 / W01R584095 |
Support and Services:
The Contitech Air Spring is a high-quality product that requires
proper technical support and services. We offer the following:
- Installation assistance: We provide guidance and support to
ensure proper installation of the air spring.
- Troubleshooting: Our team of experts is available to help
diagnose any issues and provide solutions.
- Maintenance recommendations: To ensure optimal performance and
longevity of the air spring, we offer maintenance recommendations.
- Warranty support: We stand behind the quality of our product and
offer warranty support as needed.
Contact us for any technical support or service needs related to
your Contitech Air Spring.
Packing and Shipping:
Product Packaging:
- The Contitech Air Spring product will be packaged securely in a
cardboard box with protective foam padding to prevent any damage
during transit.
- The box will be labeled clearly with the product name and any
necessary handling instructions.
Shipping:
- The Contitech Air Spring product will be shipped via a reputable
courier service.
- The shipping fees will be calculated based on the destination and
weight of the product.
- The estimated delivery time will be provided upon checkout and may
vary depending on the destination.
- Customers will receive a tracking number to monitor the status of
their shipment.
