Product Description:

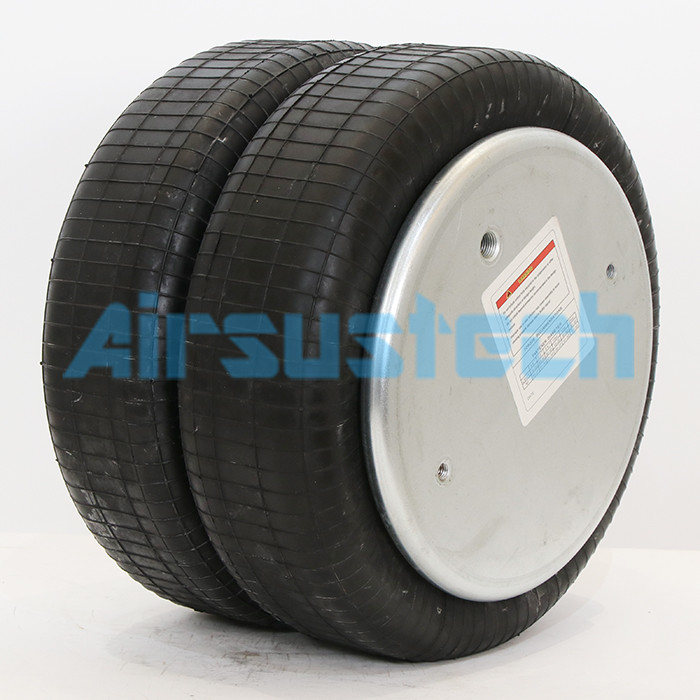

- Product Name: Convoluted Air Spring
- Maintenance: Minimal
- Operating Temperature: -30°C+70°C
- Convoluted Air Spring
- Convoluted Air Bags
- Convoluted Air Bags for Trucks
- Air Spring for Trucks
| CONTITECH FD330-30 |
| CONTITECH FD 330-30 |
| CONTITECH FD 330-30 CI |
| CONTITECH FD330-30 CI |
| CONTITECH FD 330-30 CI G1/4 |
| CONTITECH FD330-30 CI G1/4 |
Technical Parameters:
Top Cover Plate Diameter
The diameter of the top cover plate is 224.5 mm.
Bottom Cover Plate Diameter
The diameter of the bottom cover plate is 224.5 mm.
Gas Hole / Air inlet
The gas hole/air inlet has a size of 1/4-18 NPT.
Rubber Bellows MAX Diameter
The maximum diameter of the rubber bellows is 343 mm.
Design Height
The design height ranges from 363 mm to 104 mm.
Top Cover Plate Screw (Nut) and air inlet Tooth
The top cover plate screw (nut) and air inlet have teeth sizes of G
1/4 or G 3/4.
Top Cover Plate Screw (Nut) Tooth
The top cover plate screw (nut) has a tooth size of M 8.
Bottom Cover Plate Screw (Nut) Tooth
The bottom cover plate screw (nut) has a tooth size of M 8.
Screw and air inlet Distance of Top Cover Plate
The distance between the screw and air inlet on the top cover plate
is 157 mm.
Screw Center Distance of Bottom Cover Plate
The distance between the screw centers on the bottom cover plate is
157 mm.
Applications:
Convoluted Air Spring - AIRSUSTECH
Product Description
The Convoluted Air Spring is a type of air suspension system
designed for heavy-duty vehicles. It is also known as Air Spring
Bags, Air Suspension Bags, Convoluted Air Bags, Air Shock Absorber,
and Air Ride Suspension. This innovative product is manufactured by
AIRSUSTECH in Guangzhou, China and has a model number of
2B12-331P06. It is made from high-quality materials and has
received ISO/TS16949:2009 certification, ensuring its durability
and reliability.
Application and Scenarios
The Convoluted Air Spring is commonly used in trucks, trailers,
buses, and other heavy-duty vehicles. It is suitable for various
applications such as long-distance transportation, construction,
and off-road driving. Its advanced air suspension technology
provides a smoother and more comfortable ride, reducing driver
fatigue and improving overall driving experience.
Here are some possible scenarios where the Convoluted Air Spring
can be used:
- Transportation of heavy cargo: The Convoluted Air Spring can handle
heavy loads and maintain a stable and balanced ride, making it
suitable for transporting goods over long distances.
- Off-road driving: The air suspension system of the Convoluted Air
Spring allows for better shock absorption, making it ideal for
off-road driving where roads may be uneven and bumpy.
- Construction sites: The Convoluted Air Spring can withstand the
rough conditions of construction sites and provide a smooth and
safe ride for workers and equipment.
- Long-distance travel: The advanced air suspension technology of the
Convoluted Air Spring reduces vibrations and improves stability,
making it a comfortable choice for long-distance travel.
Packing and Shipping:
Packaging and Shipping for Convoluted Air Spring- The Convoluted Air Spring will be packaged in a sturdy cardboard
box to ensure safe transportation.
- The box will be sealed with strong tape to prevent any damage or
tampering during shipping.
- Inside the box, the air spring will be wrapped in protective
packaging material such as bubble wrap or foam to provide extra
cushioning and prevent any potential damage during transit.
- The box will be labeled with the product name, quantity, and
handling instructions to ensure proper handling and delivery.
- The package will be shipped using a reliable and reputable shipping
service to ensure timely and safe delivery.
- Additional measures, such as insurance or tracking, can be arranged
upon request for an extra fee.
Thank you for choosing our Convoluted Air Spring. We strive to
provide the best packaging and shipping services to ensure your
product arrives in perfect condition.
