2B9-254 Goodyear Air Spring 578-92-3-206 Cross FD200-25 463
Contitech Air Bag Shock Absorber
Product Description:
Goodyear Automotive Spring is renowned for its Goodyear Suspension
Spring, Air Ride Suspension Spring, Shock Absorption, Noise Level,
UPPER MOUNTING VIEW, Pressure Range and Stroke. The Goodyear Air
Spring is designed to have a superior shock absorption, low noise
level, UPPER MOUNTING VIEW of ASA-92-8-172, a pressure range of 2-8
Bar and a stroke from 3.8-12.2 Inch. With its advanced engineering,
Goodyear Air Spring is the perfect choice for adjustable suspension
and improved ride quality.
Features:
- Product Name: Goodyear Air Spring
- Pressure Range: 2-8 Bar
- Durability: Long Lasting
- Corrosion Resistance: High
- Combination Stud: Stud – 3/4-16
- NET Weight: 3.5 Kg
- Heavy-Duty Air Spring
- Heavy Duty Spring System
- Automotive Air Spring
Technical Parameters:
The goal of this project is to lift a mass up to 2000 M (kg). The
desired stroke per minute is 190 S min (mm). Also, the installation
requires a minimum of 4 air springs, and a minimum height of 190 H
min (mm). The diameter of the setup must be at least 500 D (mm).
The maximum air pressure is set to 6 P (bar).

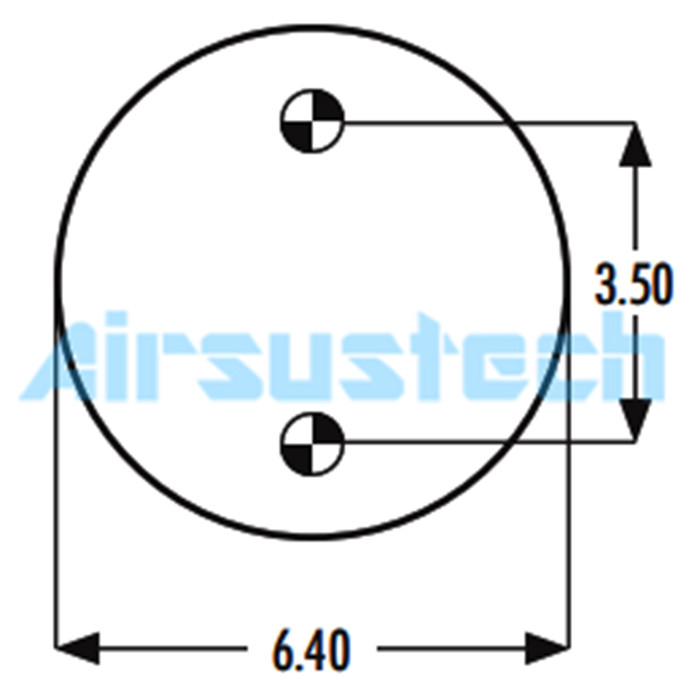

Top Plate Hole/Stud Qty: 2
Top Plate Dia: 6.4
Top Plate C to C Diameter: 3.38
Bottom Plate Hole Stud Qyt: 2
Bottom Plate Dia: 6.4
Bottom Plate C to C Diameter: 3.5
Bottom Plate Alignment: 90 Degree
Bumper: Yes
Min Height: 3.8
Max Height: 12.2
Applications:
| AUTOMANN | ABSP2B12RA-6946 |
| CONTITECH | 64555/FD 200-25 463 |
| FIRESTONE | 6946/W013586946 |
| LOAD GUARD | SC2126 |
| RIDEWELL | 1003586946C |
| SUSPENSIONS INC. | 200180 |
| TRIANGLE | 4463 |
| TRP | AS69460 |
