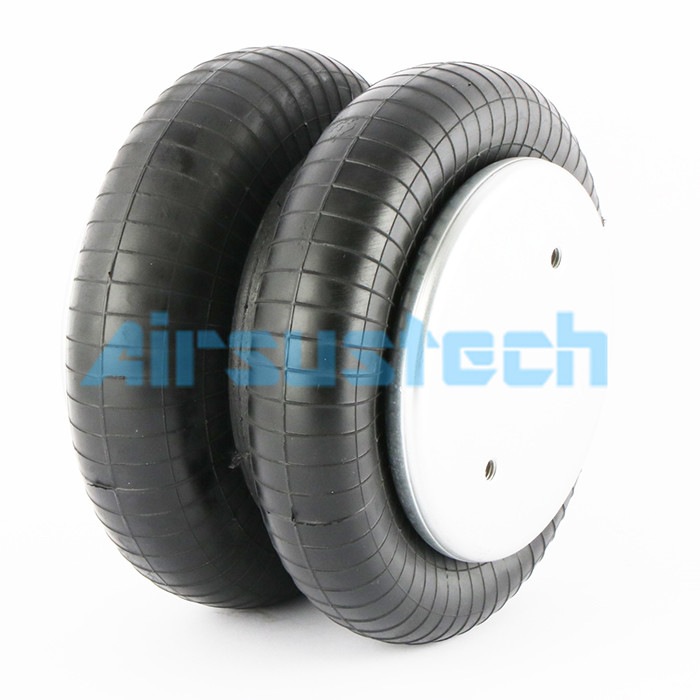

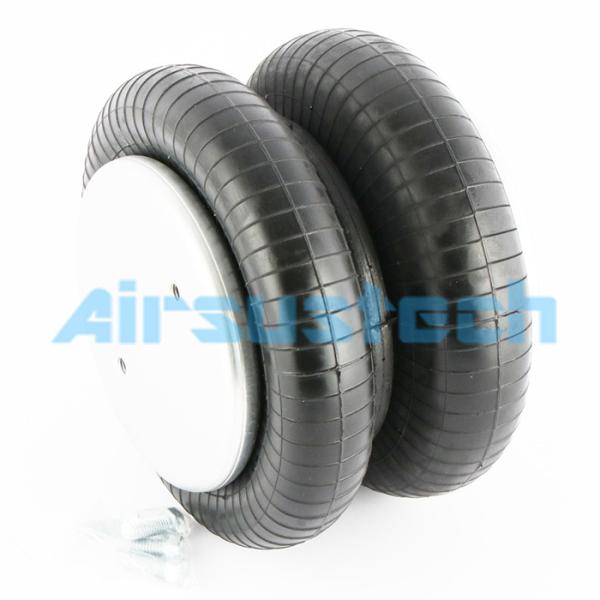

W013586910 Firestone Cover Plate Air Suspension Components FD
200-19 320 Contitech Air Spring
Product Description:
GOODYEAR AIR SPRING has ten different kinds available, namely
2B9-200, 2B9-216, 2B9-210, 2B9-206, 2B9-201, 2B9-245, 2B9-244,
2B9-240, 2B9-230, 2B9-225, all of which are double convolutions.
All the ten air springs have the same BELLOWS NUMBER 578-92-3-202,
and the same data sheet for loading machines or cars, even though
the top plate and bottom plate connection may be different.
In particular, the 2B9-201, 2B9-206, 2B9-230, 2B9-244 and 2B9-245
air springs have a bumper inside, which can help to limit the MIN
stroke of the air spring.
GOODYEAR AIR SPRING 2B9-240 has a flange ring kind, without a cover
plate; while the other kinds are of the crimped cover plate type,
making installation much easier.
Features:
AIRSUSTECH air spring technology can replace various OEMs of air
springs. These models include, but are not limited to, GOODYEAR
2B9-200, AUTOMANN ABSP2B12R-6910, CONTI 64267, FD 200-19 320,
DAYTON 354-6910, DINA A-8127-19, FIRESTONE 6910, W013586910,
GRANNING 1371, HDA PMABG-6910B, HENDRICKSON 45843-3, B-8768,
INT’L/NAVISTAR 554783C1, LOAD GUARD SC2011, MASA 227138412, PREVOST
63-0173, R&S TRUCK & BODY 1027405, RIDEWELL 1003586910C,
S-4512-C, SPRINGRIDE 2B9-492, TAURUS AS218-6910, TRIANGLE 4320, TRP
AS69100, and WATSON & CHALIN AS-00017A-9.
AIRSUSTECH air spring technology has numerous advantages compared
to other OEMs. It provides enhanced performance, improved
durability and is relatively easy to install. Moreover, it has
great compatibility with different vehicles of varied models and
brands.
Overall, AIRSUSTECH air spring is the perfect replacement for
numerous OEMs and can be used to improve the performance and
longevity of all kinds of vehicular applications.
Technical Parameters:
| Parameter | Value |
|---|
| Assembly Weight | 3.5 KG |
| Top Plate Hole/Stud Qty | 3 |
| Top Plate Dia | 6.4 |
| Top Plate C to C Diameter | 3.5 |
| Bottom Plate Hole Stud Qyt | 2 |
| Bottom Plate Dia | 6.4 |
| Bottom Plate C to C Diameter | 3.5 |
| Min Height | 3.2 |
| Max Height | 10.8 |
Customization:
Customized Service for Suspension Air Springs
Brand Name: AIRSUSTECH
Model Number: 2B6910
Place of Origin: Guangzhou, China
Certification: ISO/TS16949:2009
Minimum Order Quantity: 2
Price: USD69-139.9/PC
Packaging Details: Strong Carton Box or as Customers Requirement
Delivery Time: 5-8 Working Days
Payment Terms: T/T, Western Union, Paypal or Others
Supply Ability: 1000PCS/Week
Product Name: Suspension Air Springs
Operating Temperature: -40℃ To +70℃
Pressure Range: 0.2-0.8 MPA
Load Capacity: According To The Sizes
The Working Stroke: MIN 3.2 Inches To MAX 10.8 Inches
Air Lift Air Springs, Air Struts, Air Suspension Kits
Support and Services:
We offer technical support and service for Suspension Air Springs.
Our team of experienced technicians is ready to help you with
installation, maintenance, and troubleshooting for Suspension Air
Springs.
We provide comprehensive training courses to help you understand
the product and how to use it correctly. We also offer technical
support and consultation services to help you identify and address
any potential issues or problems.
We offer warranty services for Suspension Air Springs. In the event
that a defective product is found, we will replace it with a new
one or repair it at no additional cost.
Our customer service team is available 24/7 to address any
questions or concerns you may have. We also offer online resources
such as tutorials, FAQs and product specifications.
