Long Lasting Goodyear Air Spring 2B12-317 Firestone W01-358-7499
For Various Industries
Product Description:
Goodyear Air Spring is the perfect heavy duty air suspension system
for your vehicle. It is designed with a solid 6.5 Kg air spring,
and a tapped hole on the top retainers of 3/8-16 for maximum
strength. This air spring is designed for a pressure range of 0-8
Bar, and is highly resistant to corrosion. With air spring
suspension, your vehicle will experience heavy duty spring system,
allowing you to enjoy a smooth air ride suspension spring.
Cross Reference:
GOODYEAR 2B12-305 air spring cross:
CONTI 64531 FD 330-22 323
DAYTON 354-7443 FIRESTONE 7443 W013587443
GRANNING 1218 1589 INT’L/NAVISTAR 554786C1
LOAD GUARD SC2026 RIDEWELL 1003587443C S-2683-C
TRIANGLE 4323 TRP AS74430 WATSON & CHALIN AS-0027
GOODYEAR 2B12-317 air spring cross:
AUTOMANN ABSP2B22RA-7499 CONTI 64539 FD 330-30 502 FIRESTONE 7499
W013587499
SUSPENSIONS INC. 201602 TRIANGLE 4502
GOODYEAR 2B12-324 air spring cross:
AUTOMANN ABSP2B22RA-7447 ABSP2B22RA-7790 CONTI 64532 FD 330-30 340
DAYTON 354-7447
E-Z RIDE 8030150 FIRESTONE 7447 7790 FIRESTONE CONT. W013587447
W013587790
HENDRICKSON 1475 B-6242 INT’L/NAVISTAR 554790C1 LOAD GUARD SC2028
TRIANGLE 4340 4513 TRP AS74470 AS77900 WATSON & CHALIN AS-0025
Technical Data:
| Top Plate Hole/Stud Qty | 2 |
| Top Plate Dia | 9 |
| Top Plate C to C Diameter | 5.5 |
| Bottom Plate Hole Stud Qyt | 2 |
| Bottom Plate Dia | 9 |

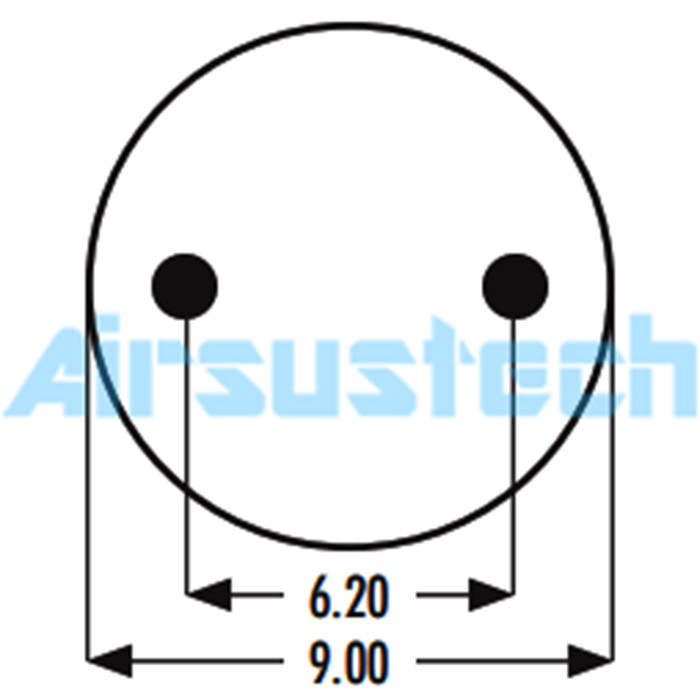

| Bottom Plate C to C Diameter | 6.2 |
| Bottom Plate Alignment | Parallel |
| Bumper | Yes |
| Min Height | 3.8 |
| Max Height | 12.4 |
Packing and Shipping:
Goodyear Air Spring packaging and shipping process:
- Goodyear Air Springs will be packaged in sturdy, durable cardboard
boxes before shipping.
- Each box will be marked with the Goodyear Air Spring product name,
model number, quantity, and shipping address.
- The entire packaging will be sealed with tape to ensure that the
box stays closed during transit.
- The package will be shipped via a reputable international carrier,
such as UPS or FedEx.
- Tracking numbers will be provided to the customer upon shipment.
.
