3B14-462 Goodyear Air Spring Bellows Cross FT 530-35 Contitech
Aluminum Plate Air Isolator
Product Description:
Goodyear Air Spring is a type of automotive air spring suspension
system that is made of heavy-duty rubber material and has a net
weight of 10.5 kg. It is suitable for a wide temperature range,
from -40℃ to +70℃, and also comes in customized sizes according to
the needs of the customer. This air spring suspension system is
specifically designed for heavy-duty applications, providing
superior performance in terms of durability and stability. Goodyear
Air Spring is the perfect choice for any automotive, commercial or
industrial application.
Features:
Goodyear Air Springs offer a wide range of products for different
uses. The list below includes the Goodyear Flex Member number,
model number and accompanying part number.
- Model 3B14-455: Goodyear Flex Member Number #556-33-8-335, Part Number 556338335
- Model 3B14-450: Goodyear Flex Member Number #556-33-8-335, Part Number 556338335
- Model 3B14-453: Goodyear Flex Member Number #556-33-8-335, Part Number 556338335
- Model 3B14-452: Goodyear Flex Member Number #556-33-8-335, Part Number 556338335
- Model 3B14-451: Goodyear Flex Member Number #556-33-8-335, Part Number 556338335
- Model 3B14-459: Goodyear Flex Member Number #556-33-8-335, Part Number 556338335
- Model 3B14-457: Goodyear Flex Member Number #556-33-8-335, Part Number 556338335
- Model 3B14-463: Goodyear Flex Member Number #556-33-8-335, Part Number 556338335
- Model 3B14-462: Goodyear Flex Member Number #556-33-8-335, Part Number 556338335
- Model 3B14-456: Goodyear Flex Member Number #556-33-8-335, Part Number 556338335
- Model 3B14-464: Goodyear Flex Member Number #556-33-8-335, Part Number 556338335
Goodyear air springs provide a reliable, safe and efficient way to
improve the performance of a vehicle. The flexibility of the
mounting systems also allows for a variety of applications and ease
of installation. Goodyear's patented product lineup is designed for
maximum efficiency and durability, making them the ideal choice for
any automotive, industrial or agricultural application.
Technical Parameters:
| Property | Details |
|---|
| Tapped Hole on Top Retainers | 3/8-16 |
| Top Plate Dia | 11.3 |
| Combination Stud Air Fitting | Stud – 3/4-16, Air Fitting – 1/4 NPTF |
| Top Plate Hole/Stud Qty | 4 |
| Top Plate C to C Diameter | 6.25 |
| Bolt or Stud | 1/2-13 or 1/2-20 |
| Bottom Plate Hole Stud Qyt | 4 |
| Bottom Plate Dia | 11.3 |

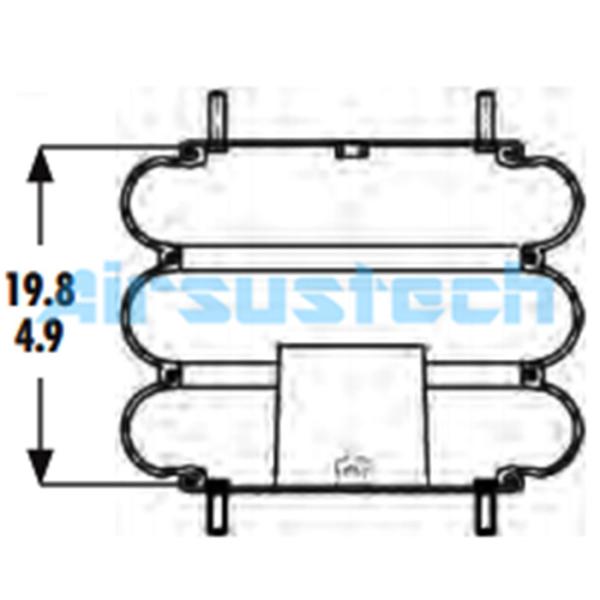

| Min Height | 4.9 |
| Max Height | 19.8 |
| Pressure Range | 0-8 Bar |
OEM Numbers:
Goodyear #: 3B14-462
Goodyear #: 3B 14-462
Goodyear #: 3B14462
Goodyear Bellow #: 556-33-8-335
Goodyear Bellow #: 556 33 8 335
Goodyear Bellow #: 556338335
Contitech Bellow #: FT 530-35
Contitech Bellow #: FT530-35
Automann Bellow #: SP3B32RA
Triangle Bellow #: 6335
Support and Services:
Goodyear Air Spring Technical Support and Service
Goodyear Air Spring provides technical support and service to its
customers and end-users through the following channels:
- Technical hotline: Goodyear Air Spring provides a toll-free
technical hotline for customers and end-users to get help with
their products and services.
- Online support: Goodyear Air Spring also provides an online support
platform, which helps customers and end-users quickly find answers
to their questions.
- On-site support: Goodyear Air Spring also offers on-site technical
support and service to customers and end-users.
Packing and Shipping:
Packaging and Shipping for Goodyear Air Spring:
Goodyear Air Spring products are packaged to withstand all
environmental conditions during transportation. The packaging
materials used are always appropriate for the product size, shape
and weight. The air springs are also packaged in such a way as to
prevent any damage or breakage during shipment.
When shipping, we use high-quality carriers to ensure that our
products reach their destination safely and on time. We take every
necessary precaution to ensure that our products are delivered
without any damage.
.
