Brand Name : | AIRSUSTECH |
Model Number : | 2B7541 |
Certification : | ISO/TS16949:2009 |
Price : | USD99-139.9/PC |
Delivery Time : | 5-8 Working Days |
Payment Terms : | T/T, Western Union, Paypal or Others |
Supply Ability : | 1000PCS/Week |

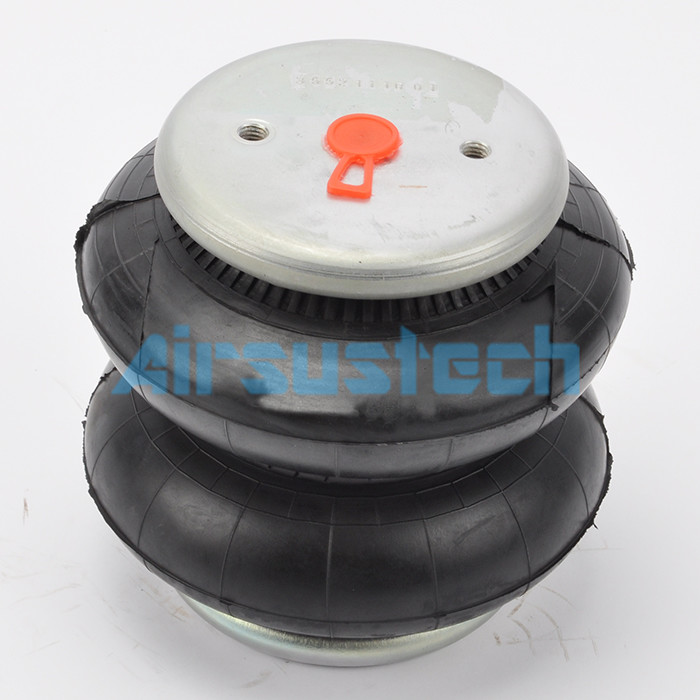

AIRSUSTECH 2B7-541 is a product of the factory, and it is used in many different applications, not only for trucks and trailers but also for vibration conveyors. Examples of this are large dryers, centrifugal separators, coordinate measuring tables and machinery, and commercial washing machines.
air spring 2B3400 dual scroll airbag completely replaces the Goodyear 2B7-541 air spring; the technical parameters are the same as those of Goodyear 2B7-541. The internal flexible parts are made of moulded beads and its identification number is 579-92-3-525. The flexible piece is connected to the end of the bracket with the material between the top plate and the bottom plate being clamped up and then being adjusted to a suitable diameter.
Product Name | Suspension Air Springs |
---|---|
Cross Goodyear Bellows NO. | 579-92-3-525 |
Durability | High Durability |
Load Capacity | According To The Sizes |
Warranty | One Year |
Compressed height | 2.75 Inches |
Design Height | 6-7 Inches |
Assembly Weight | 4.6 Lbs |
The Working Stroke | MIN 75 Mm To MAX 230 Mm |
Cover Plate Diameter (Width) | 132 Mm /5.31 Inches |
At Suspension Air Springs, we are committed to providing the highest level of technical support and service, both before and after purchase. We take pride in our customer service and strive to ensure that you receive the best possible experience.
We offer a range of technical support options before purchase, including:
Our post-purchase technical support and service includes:
For more information about our technical support and service, please visit our website or contact one of our customer service representatives.
Suspension Air Springs packaging and shipping is done with utmost care to ensure that all products reach their destination safely and on time. All products are wrapped in a protective bubble wrap, then secured in a cardboard box and sealed with a strong adhesive tape. All packages are labeled with the product name, model, quantity, and destination address. All shipments are made through reputable and reliable courier companies, such as UPS, FedEx, and DHL.
![]() |
