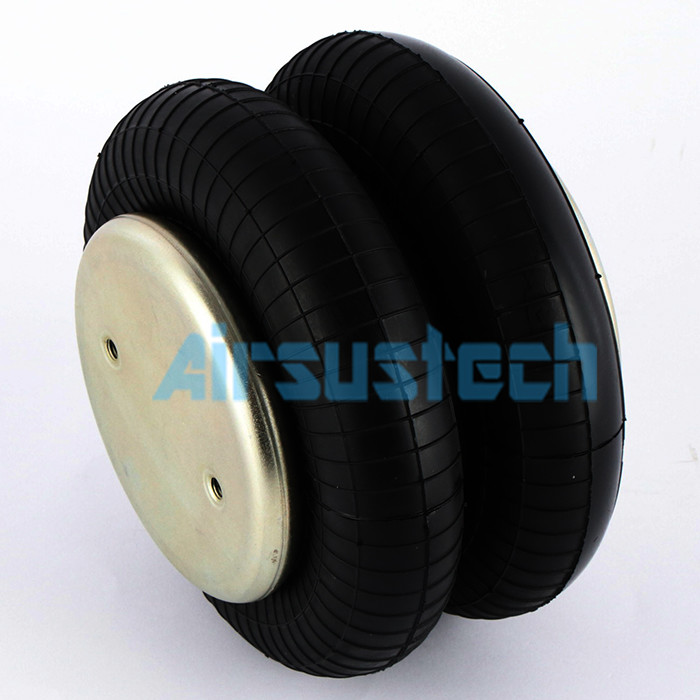

Product Description:
Phoenix Air Spring is a type of rubber spring designed to provide
cushioned support for heavy machinery. It is designed with an
easy-to-install structure that can be achieved with bolts. Phoenix
Air Spring has a warranty period of one year and comes with a
maximum diameter of 325 mm, top plate diameter of 230 mm and a
minimum height of 75 mm. The product is well-known for its superior
quality and reliability. Furthermore, Phoenix Rubber Spring is a
cost-effective and easy-to-use machine air spring that will provide
a long-lasting service for your equipment. Phoenix Air Spring
Cross-Reference is also available for customers to find the perfect
fit for their equipment.
OEM Numbers:
| Phoenix Air Spring | SP2B22R |
| Phoenix Air Spring | SP 2B 22 R |
| Phoenix Air Spring | SP2B 22R |
| Phoenix Air Spring | SP 2B22R |
Technical Parameters:
The blind tap spacing is 230mm.
The temperature range spans from -40 °F to 150 °F.
The end closure is Style 3 End Retainer.
The pressure range is up to 100 psi.
The minimum recommended isolator design height is 240mm.
The air inlet type is M22.
The end plate diameter is 230mm.
The product comes with bumpers.
The stroke length is up to 305mm.
Featuring double convolution, it has an air inlet of G3/4.
The bellows type is Double Convolution.
The fill port offset is 1 1/2 inches.
The compressed height is 75mm
The weight of the product is 6.55KG.
Air Spring Components:
Gas-Filled Hole / Air Inlet: By filling air porosity for inflatable air spring
Bolt / Mounting Stud: Bolt is fixed as the installation of air spring in car or
equipment
Upper Retainer: Upper Retainer to protect the whole air spring
Rubber Bumper (Optional): Prevent the air spring up and down on the plate and base plate
collision
Flexible Bellows: The main part can lock the air and flexible activities up and down
Piston/ The base: Base is also carrying fluctuation pressure, sealed air and make
skins can according to the fluctuation of the trajectory
Mounting Stud: fixed as the installation of air spring in car or equipment
Customization:
Phoenix Air Spring
Brand Name: AIRSUSTECH
Model Number: 2B6330M12-G3/4
Place of Origin: Guangzhou,China
Certification: ISO/TS16949:2009
Minimum Order Quantity: 2
Price: USD59.9/PC-USD89.9/PC
Packaging Details: Strong Carton Box or as Customers Requirement
Delivery Time: 5-8 Working Days
Payment Terms: T/T, Western Union, Paypal or Others
Supply Ability: 1000PCS/Week
Top Plate DIA.: 230 Mm
Height min.: 75 Mm
Warranty: One Year
Material: Natural Rubber And Grid Lines Inside
Load Force: 7.97 KN Force-45.0 KN Force
Phoenix Air Spring is a brand of air cushion produced by
AIRSUSTECH, which is specialized in the production of air spring
products. Phoenix Air Spring has a high-precision design and
excellent performance. It is equipped with a top plate with a
diameter of 230mm and a minimum height of 75mm. The natural rubber
material and grid lines inside make it durable and reliable. The
load force is 7.97KN Force to 45.0KN Force. And it is certified by
ISO/TS16949:2009 and comes with a one-year warranty. With a minimum
order quantity of 2 and competitive price from USD59.9/PC to
USD89.9/PC, you can find the right Phoenix Air Spring for your
needs. We will also provide a strong carton box or customized
packaging to ensure the safe delivery.
If you are looking for a reliable Phoenix Air Spring cross
reference, AIRSUSTECH has you covered. We offer the best Phoenix
Air Spring products with superior quality and excellent customer
service. Please contact us if you have any questions.
Support and Services:
Air Spring Technical Support & Service
At Phoenix Air Spring, our goal is to provide our customers with
the best service and technical support possible.
Our skilled team of professionals is available to answer any
questions regarding installation, operation, and maintenance of our
air spring products. We are dedicated to providing the best
customer service and will happily provide detailed and accurate
answers to all of your questions.
