SP 2 B 07 R Phoenix Air Spring SP2B07R Industial Air Rubber For
Papermaking Equipment
Product Description:

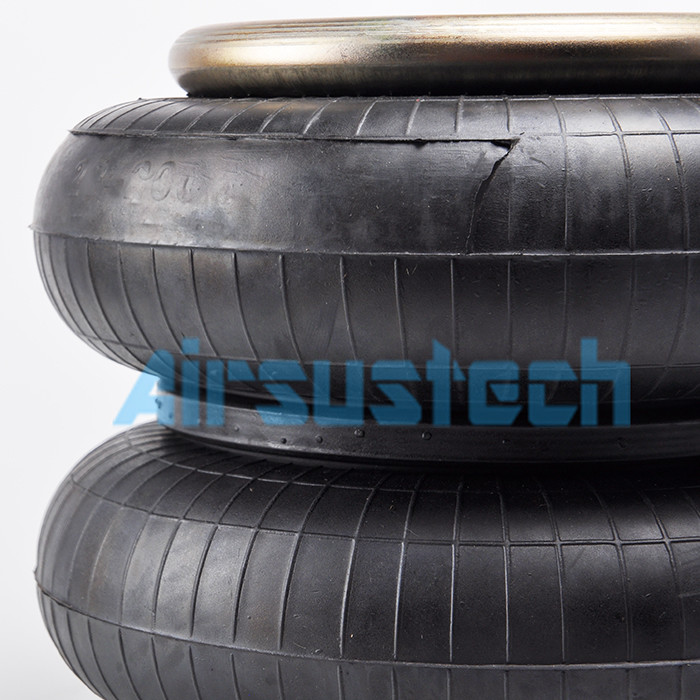

Phoenix Air Spring is an innovative and highly efficient machine
air spring, made with top plate DIA of 110mm. It is designed with a
double convolution with metal parts and 2 pcs M10 bolts on one
plate. Phoenix Air Spring offers a wide stroke range, from min. 75
to max. 230, and comes with an air inlet of G1/4. It is a reliable
and durable air spring perfect for heavy-duty applications.
Features:
Crimp plates are an important part of air springs, used to connect
the airspring bellows to the vehicle frame or equipment. This
connection is necessary to ensure that the buffer limits the
shortest stroke of the air spring, allowing for emergeny operations
while still protecting the actual elastic elements - internal
reinforcement, cord stabilizing brackets, and an external covering
of vulcanized natural rubber.
The clamping plate and the piston also play a major role in the
operation of the air spring. The clamping plate (which can be
vulcanized or constructed as a real clamping plate) provides a
connection between the air spring and the piston, enabling it to
move up and down and providing some vibration reduction. At the
same time, the center ring, which is essential to stabilizing the
air spring and cannot be deformed or distorted, establishes a
connection between the air spring and the axle.
Technical Parameters:
| Parameter | Value |
|---|
| Phoenix Rubber Spring | SP 2 B 07 R |
| Height max. | 230 Mm |
| Weight | 2.6 Kg |
| Diameter max. | 251 Mm |
| Air Inlet | G1/4 |
| Required Installment space @ | 250 Mm |
| Shape | Double Convolution With Metal Parts |
| Warranty | One Year |
| Screw Distance | 54 Mm |
| DIA. of Rubber Size | 224 Mm |
Applications:
Phoenix Air Spring is a high-performance product designed and
manufactured by AIRSUSTECH. It is certified by ISO/TS16949:2009 and
made with strong metal parts with a double convolution. It is easy
to install with two M10 bolts on one plate and has a maximum
diameter of 251 mm, with a pressure range of 0-8 bar. It is perfect
for Phoenix Vibration Controls and Machine Air Cushion, and it is
also an ideal Phoenix Air Spring Cross Reference. With a minimum
order quantity of 2, it is priced at USD59.9-USD89.9 per piece, and
it is packaged in strong carton boxes or as customers require.
Delivery time is 5-8 working days and payment terms are T/T,
Western Union, Paypal or others. AIRSUSTECH can offer a supply
capacity of 1000PCS per week.
Customization:
Phoenix AIRSUSTECH Air Spring 2B12017-54 From Guangzhou,China
Phoenix Air Bags and Phoenix Air Spring Catalogue are manufactured
by AIRSUSTECH with the Model Number 2B12017-54 and Place of Origin
Guangzhou,China. All the products are certified with
ISO/TS16949:2009. The Minimum Order Quantity is 2 and the Price
ranges from USD59.9/PC to USD89.9/PC. The Packaging Details are
Strong Carton Box or as Customers Requirement and the Delivery Time
is 5-8 Working Days. The Payment Terms are T/T, Western Union,
Paypal or Others and the Supply Ability is 1000PCS/Week.
The Phoenix Vibration Controls have a Shape of Double Convolution
With Metal Parts and a Temperature Range of -30 To +70 Degree
Celsius. It has Bolts of 2 Pcs M10 On One Plate and the Material is
Natural Rubber And Grid Lines Inside with a Screw Distance of 54
Mm.
Support and Services:
Phoenix Air Spring provides technical support and services for its
products. Our experienced team of professionals will be available
to help you with any technical issues you may have. We will provide
you with detailed instructions for installation and maintenance of
your Phoenix Air Spring product, as well as answer any questions
you may have about product features and specifications. We also
provide a warranty for our products, giving you peace of mind
knowing that we stand behind our products.
